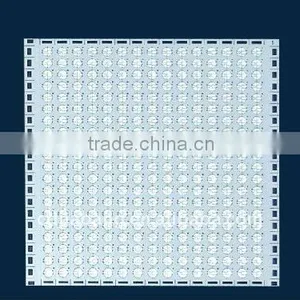

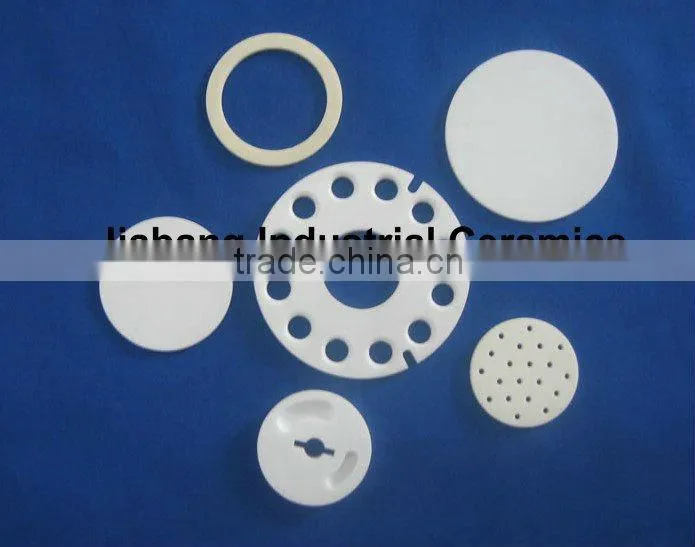

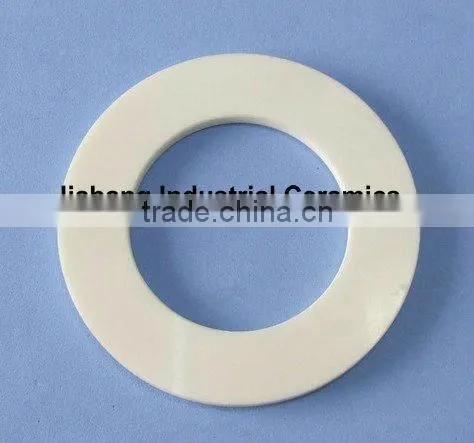

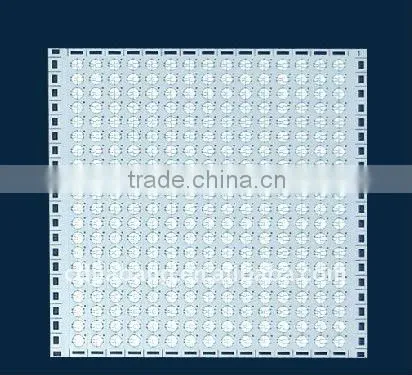

Thin film ceramic substrates 99.6% & HIC Alumina ceramics
Our proprietary 99.6% alumina formulation produces a fine-grain substrate with excellent surface finish and dielectric characteristics. Our substrate is ideal for thin-film applications with ultra fine-line resolution and spacing. Our current capability is producing substrates as large as 15"x 15". We are currently expanding our production capacity to make 36"x 36" substrates. Once we complete the expansion our substrates will be one of the largest manufactured substrates available.
Features
1.Good chemical capability and insulation
2.Good performance and long-term life
3.Support laser/mold production
4.Good Electrical Insulation,Wear & Corrosion Resistant
Applications
Alumina ceramic substrate is widely used in the Thick Film Circuit,large-scale integrated circuit,HIC,semi-conductor assembly,Chip Resistor, potentiometer,power module and other relative areas
Please let us know the 5 important things of your need for product.
1. What size of product do you need?
2. What about is the allowable tolerance?
3. what is the material do you need for the ceramic product?
4. where do you use such substrate ?
5. How much is your quantity demand?
#If you can give us your technic drawing,we will be very appreciate.
If you need more information or have any question,pls kindly let us know and we will reply to you A.S.A.P!
