Who We Are
Zhucheng Xinxudong Machinery Co.,Ltd is a comprehensive enterprise in the food processing field in China. We have 3 factories in Zhucheng City, specialized in supplying all kinds of food machinery. After years of effect, we are professional in the following products: frying machine,frozen french fries production line, potato chips production line, chicken nuggets and burger patty production line,dumpling making machine, fruit and vegetable cleaning machine, smoke oven, dryers etc… We have 16 years of experience, we offer the best service before and after sales. So far, our machines were sold all over the world including UK, Italy, Lithuania, USA, Chile, Australia, Philippines, Malaysia, Thailand, Vietnam, India,Bangladesh, Saudi Arabia, Algeria etc… We sincerely welcome the customers from all over the world to visit our factories, and also hope to cooperate with you.
Burger Patty Making Machine
CXJ-600 forming machine for hamburger patty, chicken nuggets, chicken or beef steak patty maker, it can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.
Stainless steel made and portion non-metal material, safe and reliable, in conformity with the standard of HACCP, and got the CE authorization. Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.
Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And can be applied in the fields of all kind of minced/sliced products for premier meat texture taste. Belt width is 600mm (23.6”)
Electric apparatus parts:
Using original Germany SIEMENS PLC processor with touch screen operation, Chinese/English operating system and automatic failure alarm system.
Safe device:
Magnetic protection switch (safe cover)
Hydraulic parts:
Adopting the VICKERS, STAUFF, PARKER, and INTERGRADTE HYDRAULIC original parts to guarantee the stable running of the whole machine.
Pneumatically system:
Adopting the completely Germany FESTO original system.
Technical parameter:
Model |
CXJ-600 |
Mesh belt width |
600mm |
Power |
15.12KW |
Production capacity |
About 500-1000kg/hour |
Stroke Times |
15-60 times/minute |
The thickness of product |
6-40mm |
Weight Error |
≤1% |
The maximum diameter |
150mm( for round burger ) |
Filling pressure |
3-15Mpa adjustable |
Air pressure/ Water pressure |
6Bar/2Bar |
Overall dimension |
3170×1176×2636mm |

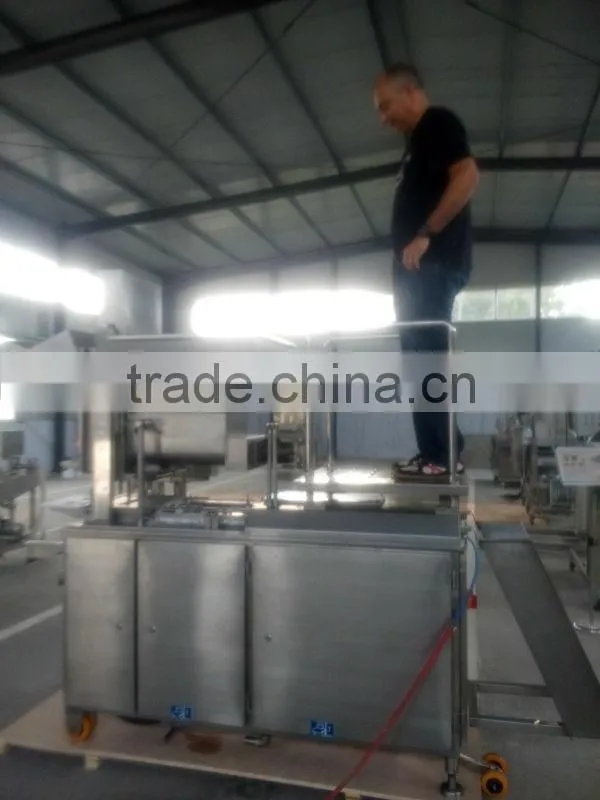

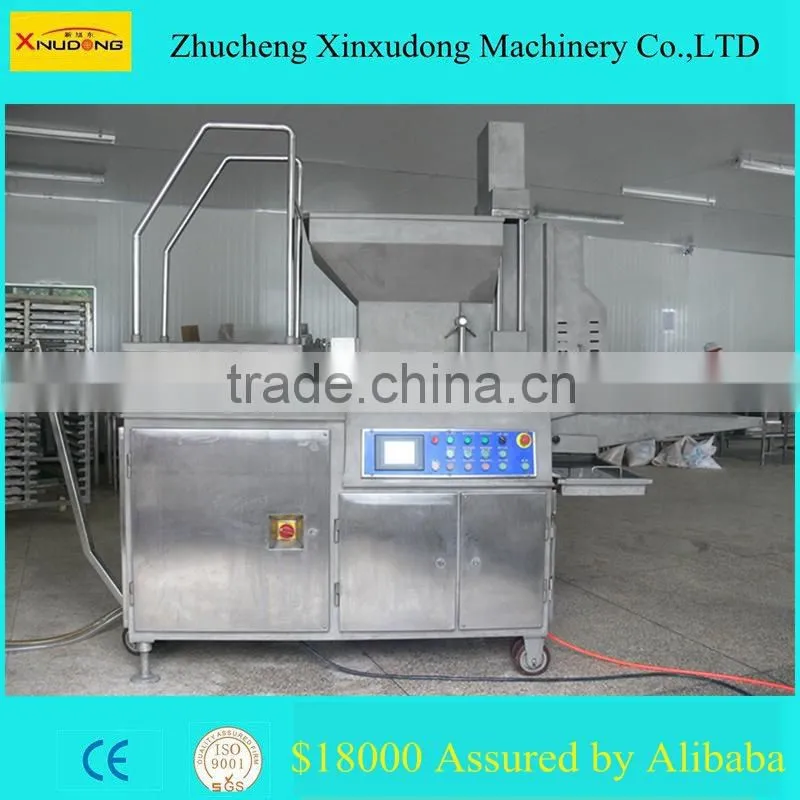

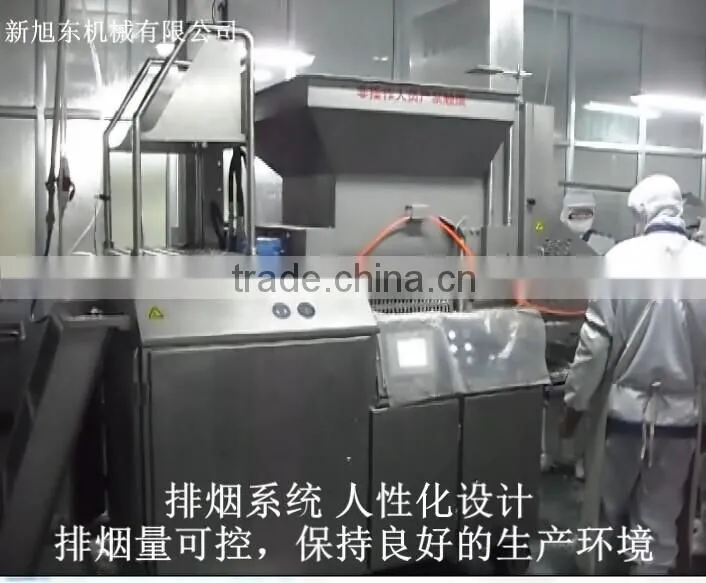

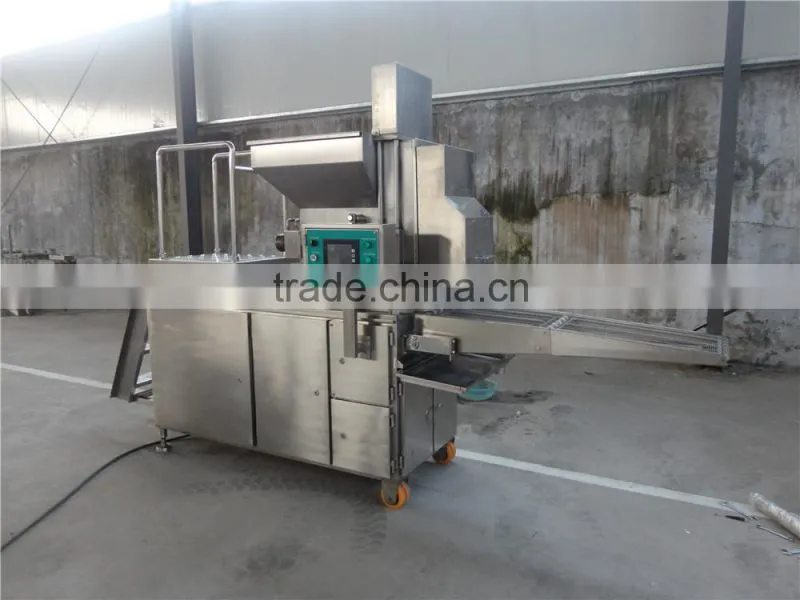

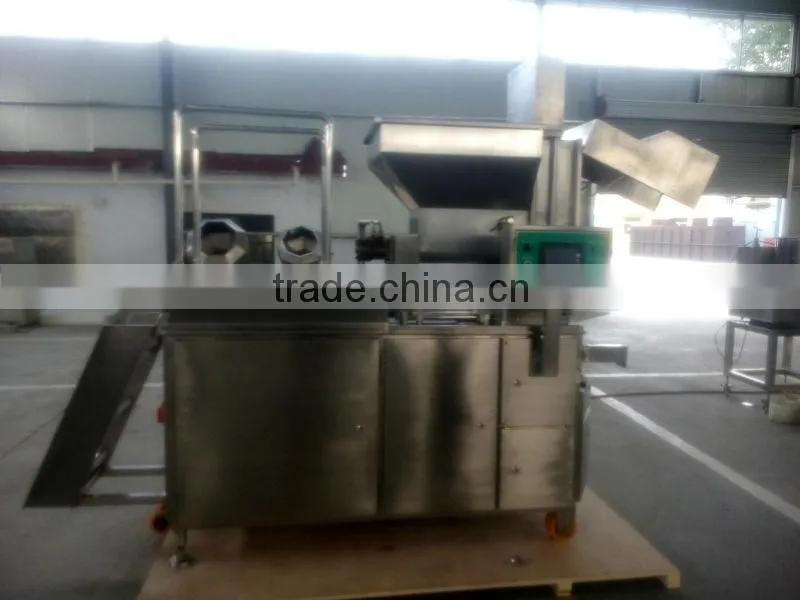

Images

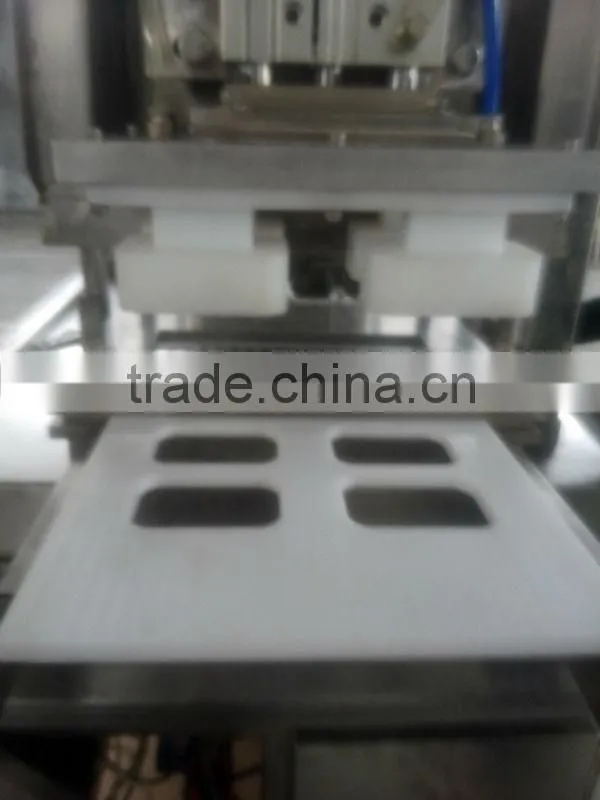

Mould
