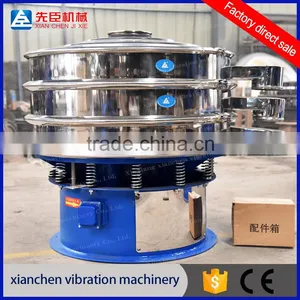

Help CenterXC Rotary Vibrating Screen
Related Products
-
Vibrating Sieve For Pharmaceutical IndustriesUS$ 1,300 - 2,100MOQ: 1 Set -
China Exporters Stainless Steel Grading Machine Metal Powder Vibrating Sieve/screen/sifterUS$ 1,300 - 2,100MOQ: 1 Set
-
Stainless Steel Whey Vibrating Separator MachineUS$ 1,300 - 2,100MOQ: 1 Set
-
Stainless Steel and Food Grade Vibrating Screen Machine for Soybean MilkUS$ 1,000 - 1,800MOQ: 1 Set
-
Vibrating Screen Separator for Powder, Granule and LiquidUS$ 800 - 7,800MOQ: 1 Set
We promise 12 months warranty and return cargos if quality problem

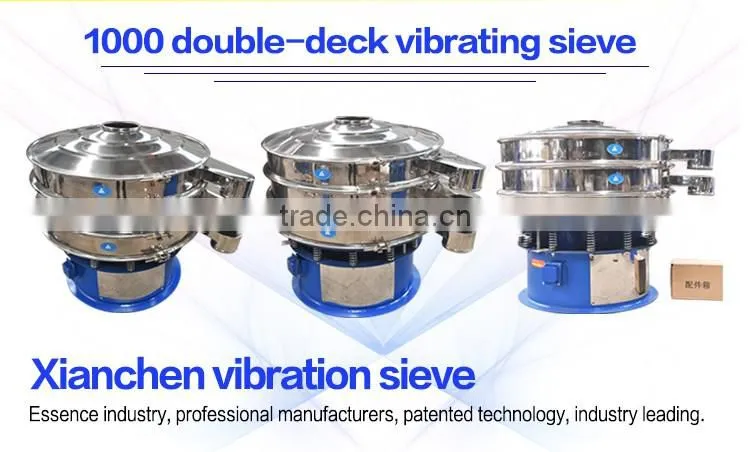

1000 double-deck vibrating sieve actual photos
Product Description
Spin vibration sieve is a kind of high precision fine powder screening machine,the working principle is by upright motor as the source of vibration,the motor is installed at both ends of upper and lower eccentric weight,the motor rotation movement into horizontal, vertical, inclined three dimensional movement, then pass the movement to the screen surface. Adjust the phase angle of the upper and lower ends can change the direction of movement of material on the screen,vibration due to its operation principle, many companies also known as the "three dimensional vibrating screen points filter", according to the shape structure is part of the customer call for a circular screen, from the material divided into standard type rotary vibration sieve and ordinary type rotary vibration sieve, the part in standard type rotary vibration sieve contact with the material is 304 stainless steel material,the base is made of carbon steel,the general type of body for carbon steel material.
Rotary vibrating screen pecifications
Model |
Power(KW) |
Screen dish(φ) |
effective area
|
Layer |
|
XC-600-1S XC-600-2S XC-600-3S |
0.25 0.55 0.55 |
560 |
0.2375 |
1 2 3 |
|
XC-800-1S XC-800-2S XC-800-3S |
0.55 0.75 0.75 |
760 |
0.4416 |
1 2 3 |
|
XC-1000-1S XC-1000-2S XC-1000-3S |
0.75 1.1 1.5 |
930 |
0.6789 |
1 2 3 |
|
XC-1200-1S XC-1200-2S XC-1200-3S |
1.1 1.5 1.75 |
1130 |
1.0382 |
1 2 3 |
|
XC-1500-1S XC-1500-2S XC-1500-3S |
1.5 2.2 2.2 |
1430 |
1.6052 |
1 2 3 |
|
XC-1800-1S XC-1800-2S XC-1800-3S |
2.2 2.2 3.0 |
1730 |
2.3523 |
1 2 3 |

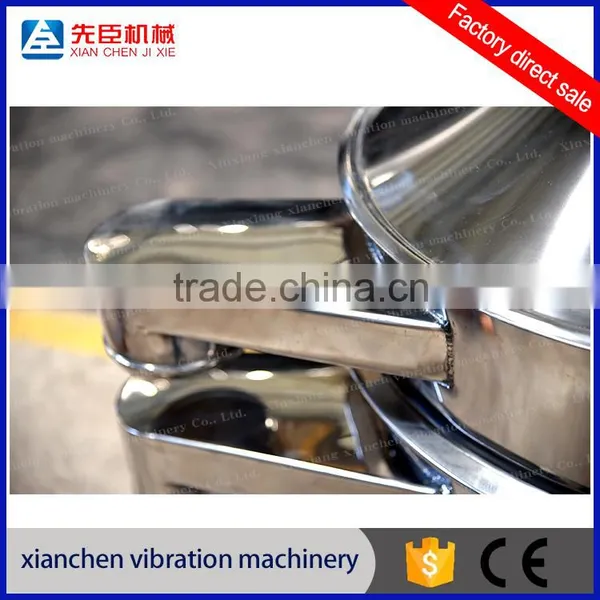

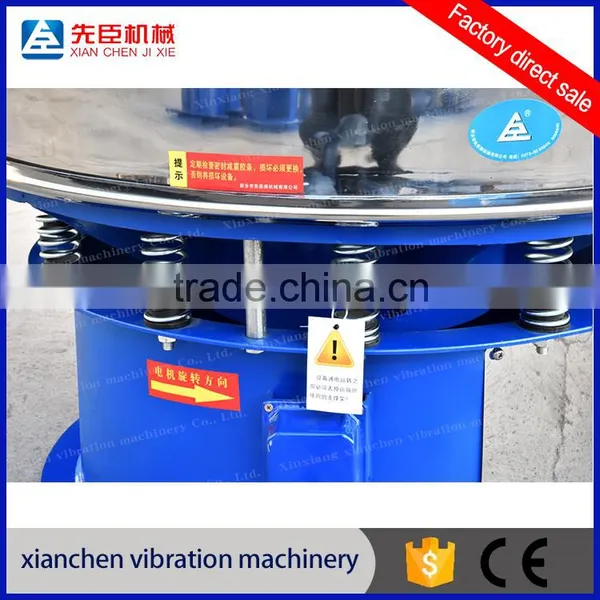

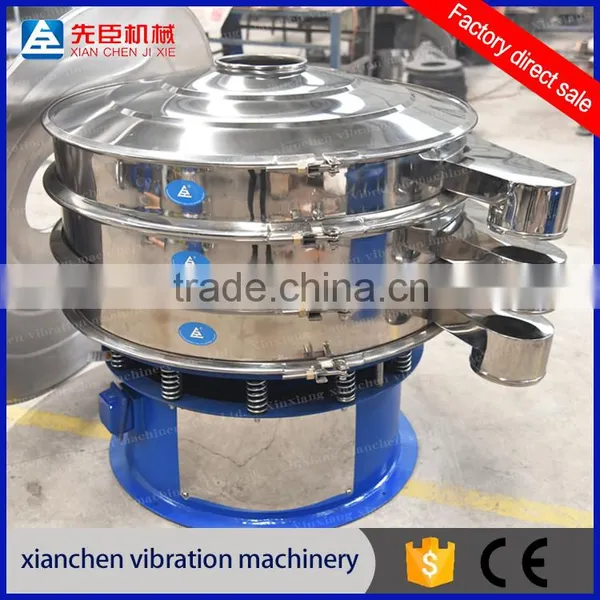

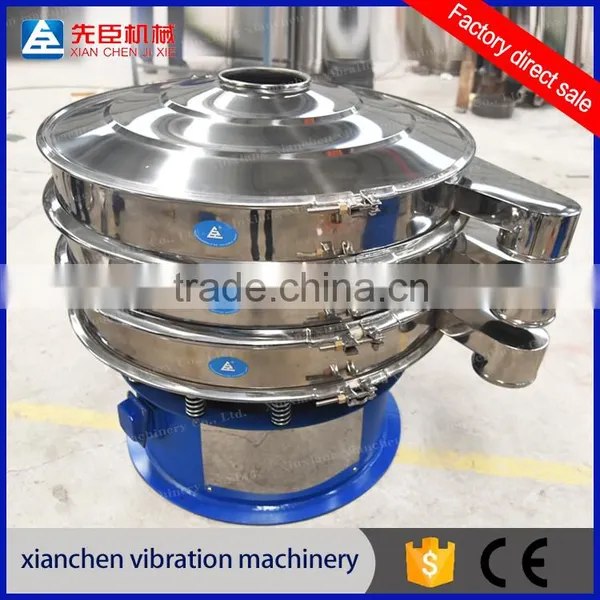

1000 double-deck vibrating sieve details
‘Xianchen” XC series of three dimensional vibration sieve products, by the customer to use for many years, won a large number of first-line feedbacks and Suggestions, based on the manufacture technology of its own mature sieve machine, Xianchen mechanical engineer to meet customer requirements as the standard, Several technical improvements, the screening effect is more superior, using a "strong" new power vibrator, three-dimensional dynamic more prominent, the applicable scope is more extensive, machinery company can according to customer demand design special model, whether the material is dry or wet, is fine or rough, is large proportion or light weight, 0-400 mesh can be screened. regardless of is the liquid or slurry 0-600 mesh can be filtered. spin vibration sieve series of products at the same time equipped with a special screen cleaning device, put blocking net rate to a minimum, over the net rate and processing precision can be effectively improved. "Xianchen" with special types of manufacturing capacity so that customers have more choices for “Xianchen”.
Application
- Chemical industry: resin, coatings, industrial medicine,cosmetics, paint, Chinese medicine powder and so on.
- The food industry: sugar, starch, salt, Rice noodles, milk powder, Soybean Milk, egg powder, soy sauce, juice and so on.
- The metal, mining and Metallurgy: aluminum powder, lead powder, copper powder ,mineral,alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic materials,abrasive powder, refractory material, kaolin, lime, alumina, ground limestone,quartz sand and so on.
- Pollution treatment: waste oil, waste water, dyeing wastewater, additives, activated carbon and so on.
Features of rotary vibrating screen
- The efficiency is high, the design is exquisite and durable, any fine kind, the mucus can be screened.
- Easy to change net, easy to operate, easy to clean.
- The mesh is not blocked, the powder can not fly, can screen to 500 mesh or 0.028mm.
- Impurity coarse material automatic discharge, can continuous operation.
- Unique network frame design, the screen was used for a long time, changing the net fast, only 3-5 minutes.
- Small size, space saving, easy to move.
- Screen up to five layers
Exhibition & customers
Qualification honor
Packaging & Shipping
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
FQA
1. How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery
Wooden case or as your payment
20 days after receipt of your require
This machine also could be customized by clients' specific production line requirement.
