WS-C3560X-48T-S Catalyst 3560-X Switch Models Catalyst 3560X 48 Port Data IP Base

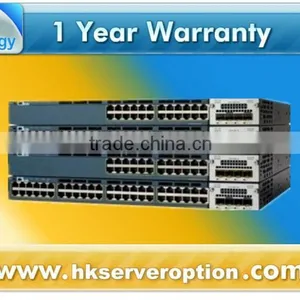

WS-C3560X-48T-S Catalyst 3560-X Switch Models Catalyst 3560X 48 Port Data IP Base thumbnail-1
WS-C3560X-48T-S Catalyst 3560-X Switch Models Catalyst 3560X 48 Port Data IP Base photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, Connect multiple networks
Type:
Wired
Contact Supplier Request Quote Chat Now
Guangzhou E-Energy Information Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Other, Connect multiple networks
Type Wired
Kind Internal
Transmission Rate 10/100/1000Mbps
Interface Type Other, Gigabit Ethernet
Model Number WS-C3560X-48T-S
Place of Origin California, United States

Specifications

WS-C3560X-48T-S Catalyst 3560-X Switch Models Catalyst 3560X 48 Port Data IP Base

WS-C3560X-48T-S Catalyst 3560-X Switch Models Catalyst 3560X 48 Port Data IP Base



WS-C3560X-48T-S   Catalyst 3560-X Switch Models     Catalyst 3560X 48 Port Data IP Base


DESCRIPTION

The  Catalyst 3560-X Switches are an enterprise-class line of standalone switches. These switches provide high availability, scalability, security, energy efficiency, and ease of operation. The  Catalyst 3560-X Switches enhance productivity by enabling applications for borderless network experience.

PRODUCT FEATURES

  •  StackWise Plus technology
     StackWise Plus technology is built on the highly successful industry leading StackWise technology, which is a premium stacking architecture optimized for GbE. StackWise technology was designed to respond to additions, deletions, and redeployment while maintaining constant performance. The stack behaves as a single switching unit that is managed by a master switch elected from one of the member switches. The master switch automatically creates and updates all the switching and optional routing tables. A working stack can accept new members or delete old ones without service interruption. StackWise creates a highly resilient single unified system of up to nine switches, providing simplified management using a single IP address, single telnet session, single command-line interface (CLI), auto-version checking, autoconfiguration, and more.Individual 10/100/1000 units can be joined in any combination to evolve with network needs.
  • MACsec
    The  Catalyst 3560-X Series Switches offer exceptional security with integrated hardware support for MACsec defined in IEEE 802.1AE. MACsec provides MAC layer encryption over wired networks using out-of-band methods for encryption keying. The MACsec Key Agreement (MKA) protocol provides the required session keys and manages the keys required for encryption when configured. MKA and MACsec are implemented following successful authentication using 802.1x Extensible Authentication Protocol (EAP) framework. In Catalyst 3560-X Series Switches only the user/down-link ports (links between the switch and endpoint devices such as a PC or IP phone) can be secured using MACsec.
  • Dual redundant modular power supplies
    The Catalyst 3560-X Series Switches support dual redundant power supplies. The switch ships with one power supply by default, and the second power supply can be purchased at the time of ordering the switch or at a later time.
  • eXpandable Power System (XPS) 2200
    The XPS 2200 (available at a later time frame) is the next-generation redundant power system (RPS). It not only provides the functionalities offered by the RPS but also provides enhanced services with the support for StackPower technology. When used with the  Catalyst 3560-X, it provides RPS functionality. The XPS supports dual redundant power supplies and fans. Up to nine switches can be connected to the XPS 2200, and it can provide power backup to two of the failed switches concurrently.
  • Sustainability
     Catalyst switching solutions enable greener practices through measurable power efficiency, integrated services, and continuous innovations such as  EnergyWise, an enterprisewide solution that monitors and conserves energy with customized policies. Together,  EnergyWise technology and  Catalyst switches reduce greenhouse gas (GhG) emissions and increase energy cost savings and sustainable business behavior.
  • Ease of operations
    The  Catalyst 3560-X helps reduce the operating costs through:  Catalyst Smart Operations, easy to use deployment and control features, advanced, intelligent network management tools.
  •  Network assistant
    A PC-based network management application designed for small and medium-sized business (SMB) networks with up to 250 users,  Network Assistant offers centralized network management and configuration capabilities.  Network Assistant uses  Smartports technology to simplify both initial deployment and ongoing maintenance. This application also features an intuitive GUI where users can easily apply common services across  switches, routers, and access points.
  • CiscoWorks LAN Management Solution
    CiscoWorks LAN Management Solution (LMS) is a comprehensive network lifecycle management solution. It provides an extensive library of easy-to-use features to automate the initial and day-to-day management of your  network infrastructure. CiscoWorks LMS uniquely uses  hardware and software platform knowledge and operational experience into a powerful set of work-flow driven configuration, monitoring, troubleshooting, reporting, and administrative tools.
  • Borderless security
    The  Catalyst 3560-X Series Switches provide superior Layer 2 threat defense capabilities for mitigating man-in-the-middle attacks (such as MAC, IP, and ARP spoofing). TrustSec, a primary element of Borderless Security Architecture, helps enterprise customers secure their networks, data and resources with policy-based access control, identity and role-aware networking, pervasive integrity, and confidentiality.
  • Borderless experience
    Borderless network enables enterprise mobility and business-grade video services. Industry's first unified network (wired and wireless) location services enable tracking of mobile assets and the users of those assets for both wired and wireless devices.


PRODUCT DETAILS
Device Type Switch - 48 ports - Managed
Enclosure Type Rack-mountable 1U
Interfaces Gigabit Ethernet
Ports 48 x 10/100/1000
Performance Switching fabric bandwidth : 160 Gbps
Capacity Virtual interfaces (VLANs) : 1005
Jumbo Frame Support 9216
Routing Protocol RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae
Power AC 120/230 V ( 50/60 Hz )
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 46 cm x 4.5 cm
Weight 7.3 kg
Manufacturer Warranty Limited lifetime warranty







WS-C3560X-48T-S Catalyst 3560-X Switch Models Catalyst 3560X 48 Port Data IP Base
