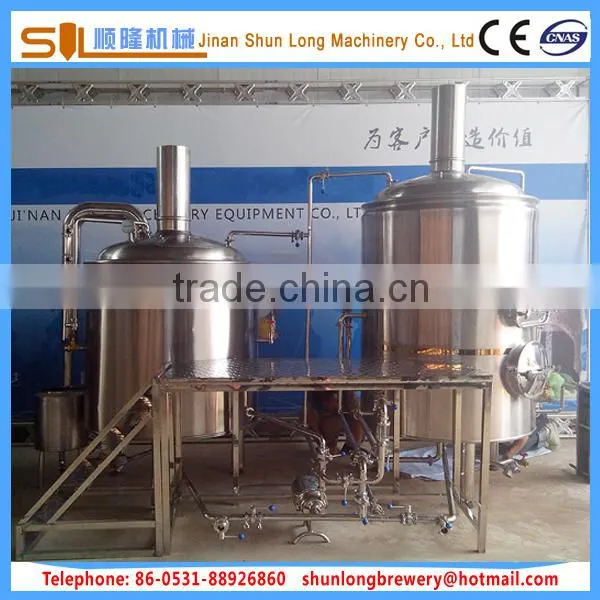

Help CenterMedium Size 500l Micro Brewery Equipment Small Beer Brewery Equipment for Sale
Related Products
-
500l 3 Vessel Beer Equipment Combination Beer Brewing TankUS$ 11,200 - 57,200MOQ: 1 Set -
Multi Choice Brew House Quality Sus304 Fermenter 500l Beer Brewing EquipmentUS$ 3,800 - 18,000MOQ: 1 Set
-
High-grade Carefully Crafted Brewing Plant System 100l 200l 300l 500l Beer Brewing EquipmentUS$ 6,000 - 156,000MOQ: 1 Set
-
Beer Brewery Whole-set Equipment 500L Brewing Micro Brewery EquipmentUS$ 12,500 - 61,500MOQ: 1 Set
-
Beer Brewing Whole-set Equipment 500L Brewing Micro Brewing EquipmentUS$ 12,500 - 61,500MOQ: 1 Set

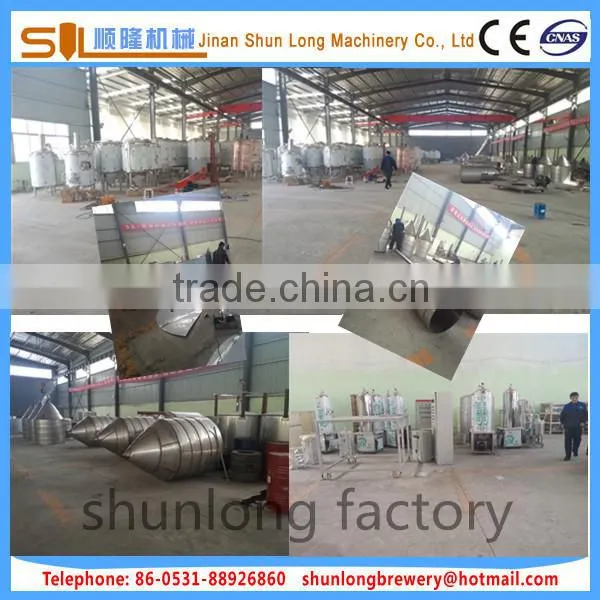

Shun long beer equipment is a collection of design, production, installation, training professional beer equipment production enterprise, the specialty is engaged in the beer equipment, beer brewed equipment, hotel equipment, experimental beer equipment, draft beer machine, the sale of wine production, divided into a variety of specifications of products: non-standard equipment,Germany standard beer equipment.
The company passed the ISO9001:2000 international quality management system certification, professional production and technical personnel, advanced processing equipment, the introduction of German brewing technology, established a perfect after-sales service and security system, with good ability of equipment supply and services.

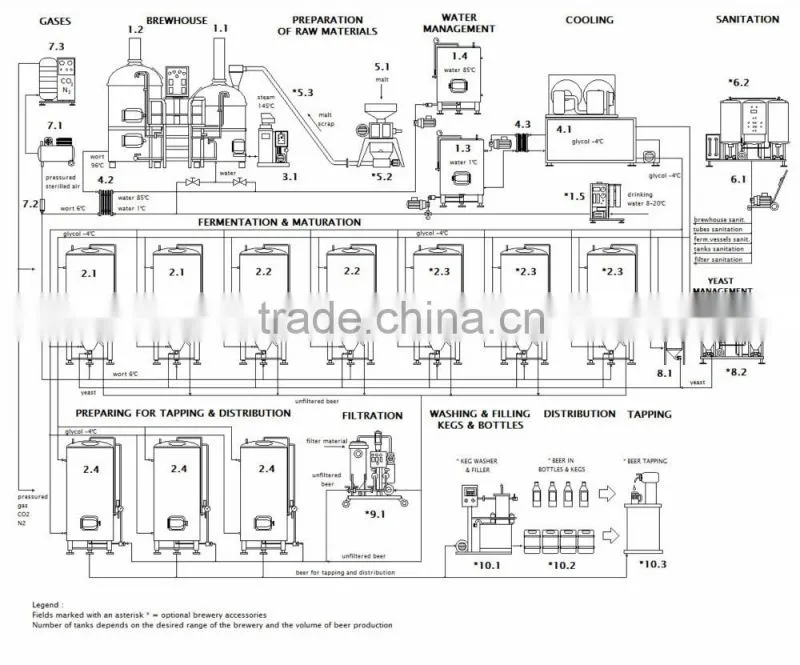

Once equipment is installed to form the brewing "system", you can begin to produce fresh, craft beers. Here are the steps of the brewing process as the ingredients flow through the system:
[ 1 ] - MILL
A high-quality, adjustable, two-roll mill crushes the barley to the desired coarseness to form grist.

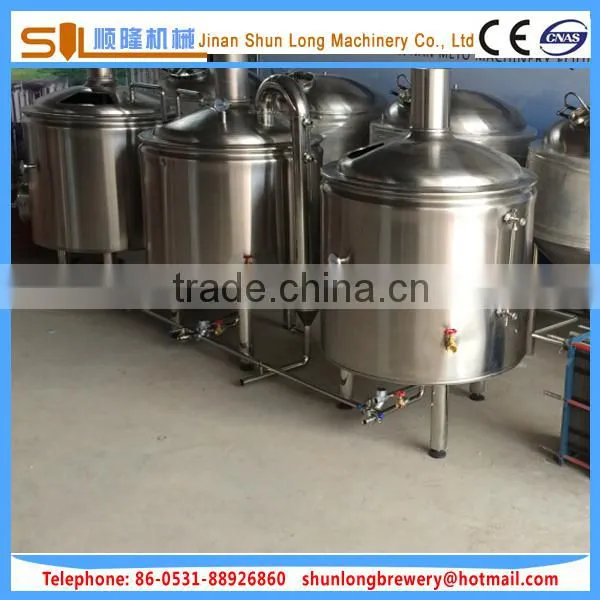

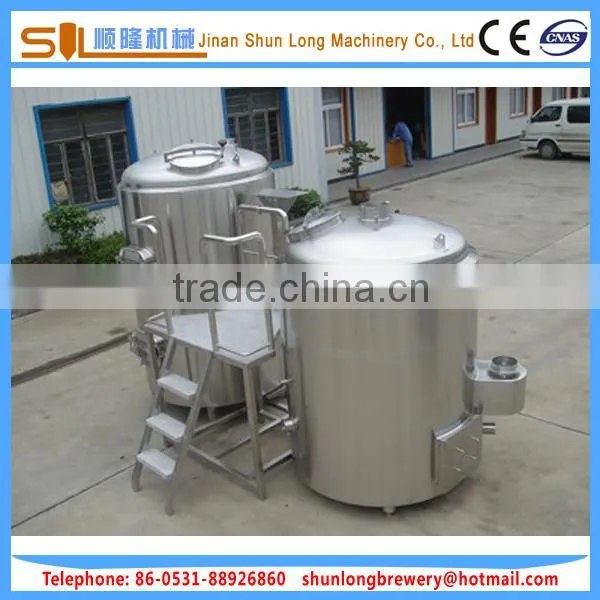

[ 2 ] - COMBI VESSEL
Actually two tanks in one: In the top unit, called the Mash/Lauter Vessel, grist and hot water are mixed to produce mash.From this, a clear substance called wort is extracted. The bottom unit of the Combi VEssel holds the additional hot water (liquor) needed for brewing and clean-up
[ 3 ] - MANIFOLD
During the brewing process, wort and hot and cold water must move easily through the brewhaouse. The Manifold is a nine-valve control station which allows all liquid to transfer in a safe, sanitary manner. This eliminates liquid spillage and contamination, which may occur when connections or disconnectiong hoeses and clamps, or using swing arm panels.

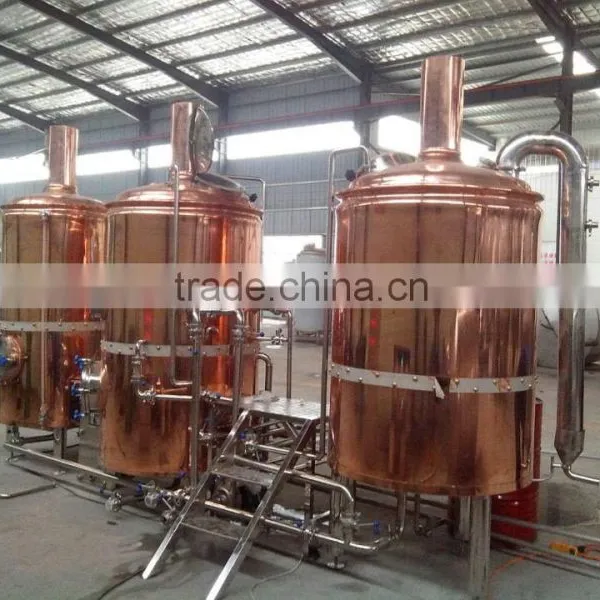

[ 4 ] - BREW KETTLE
Here wort is brought to boil and mixed with hops, which adds bitterness and aroma to the mixture. Depending on customer preference, the Brew Kettle can be directly gas-fired or steam heated. It mau ca clad in stanless steel and copper, or furnished with the classic onion0shaped dome.
[ 5 ] - PLATE HEAT EXCHANGER
Using tap water, chiled water, glycol or a combination of the three, this compact unit efficiently cools wort before it's transferred to the fermenter. The Exchanger also returns excess hot water to the Hot Water (liquor) Tank for use in the next brew.

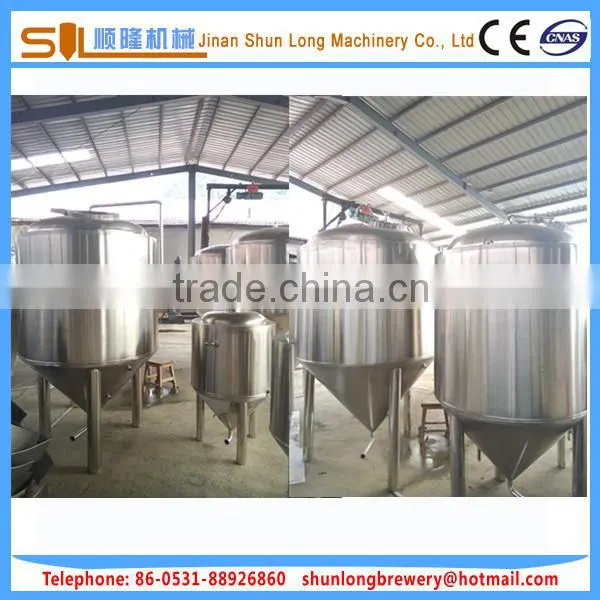

[ 6 ] - FERMENTERS
HEre yeast is added to wort to create the distinctive composition and flavor of beer. Our special disign allows for fermentation, aging, carbonation and lagering all in onetank, if desired. This saves the brewer time and minimizes space. Fermenters are individually temperature controlled. (ASME Code Approved Optional.)
[ 7 ] - FILTER
At this stage, yeast is removed from the mixture, eaving brillantly clear beer. A palte-and-frame or horizontal diatomaceous filter is employed to recover every last drop of beer to minimize and filter the product for packaging.
[ 8 ] - SERVING VESSELS
These units receive and hold the filteres beer for direct service to the bar. Or thay may be used as holding tanks for packaging the product. (ASME Code Approved Optional.)

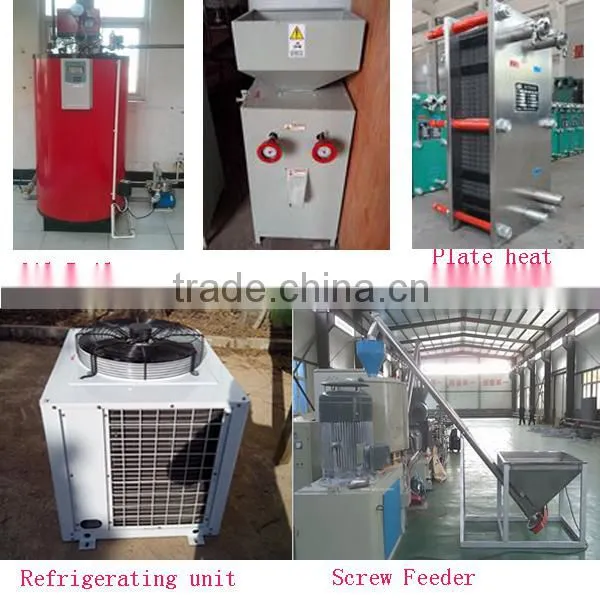

500L complete brewery equipment list:
brewery equipment |
Components |
1. Milling System |
Malt Miller |
2. Mashing System |
Mash/Lauter Tun |
Boiler Tank | |
Boiler | |
Heat Exchanger | |
Wort Pump | |
|

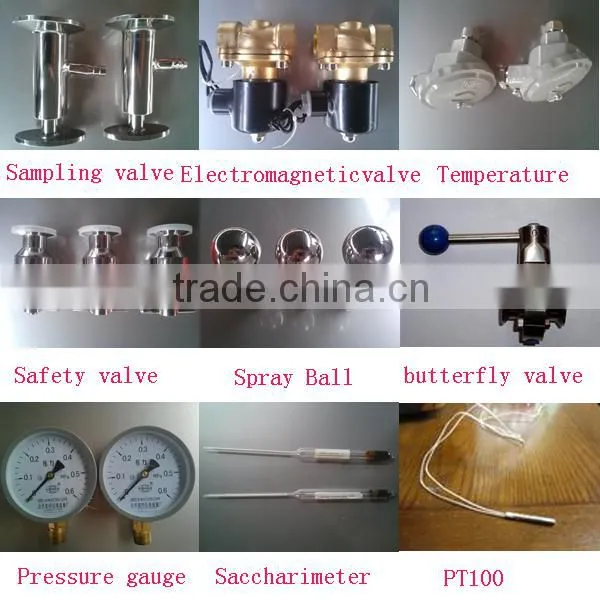

Other accessories are available: Ornamental Pipe;Mashing Pipeline; Operating Plateform; Yeast Feeder; Venturi Tube; Butterfly Valve DN40; Butterfly Valve DN32; Soft Pipe; Dregs Rake; Sugar Measuring Cylinder; Saccharimeter; | |
3. Fermenting System |

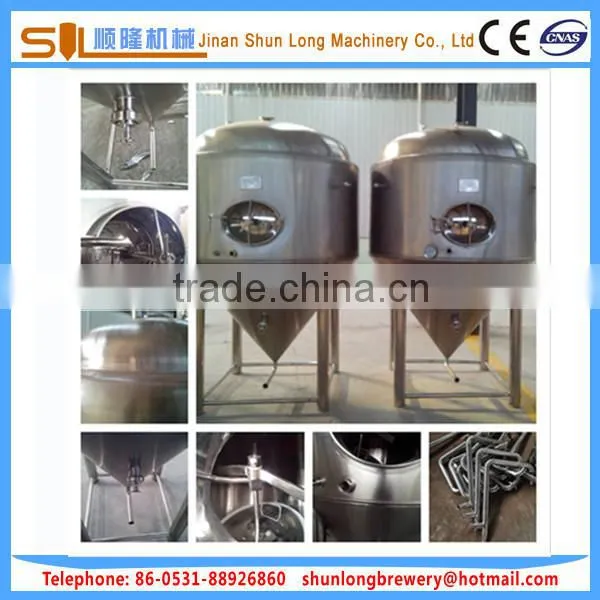

Fermentation Tank |
|
Other accessories are available: L-Pipe; Butterfly Valve; Pressure Gage; Solenoid Valve; Vacuum Valve; Cooling Pipe; Thermal Insulation Pipe; | |
4. Cooling System |
Ice Water Tank |
Refrigeration Machine | |
Centrifugal Pump | |
Evaporator | |
Ice Water Pump | |
Relative Pipes and Valves | |
5. CIP System |
Washing Tank |
Sterilization Tank | |
Pump and Valve | |
Membrane Filter | |
Filtered Beer Tanks | |
Pop Can Packing Machine | |
Glass Bottle Packing Machine | |
6. Controlling System |
Mashing Control Panel |
Fermenting Control Panel | |
Refrigerating Control Panel |
1. Roughness is less than 0.4μm
2. Without any dead corner
3. Discharge with rotation
4. Multi-stage cooling jacket can save more energy
5. Various heating methods (electric heating, gas heating, steam heating)
6. Filter plate (unique design with back taper)
7. Churn (manual, semi-automatic, top stirrer and bottom stirrer)
8. We have sufficient spot goods, conventional criteria beer equipment and we can deliver the goods within 3 days after signing the contract and remittance.
Pre-sale service:
1.Make the equipment details specifications to customers.
2.We can supply the OEM process,according to the drawings,the samples to customized the beer equipment
3.Layout plan in CAD drawings of beer machine
4.The competitive price and the timely delivery
After-sale service:
1.Provide the required customs declaration files,timely tracking freight.
2.The equipment main configurations for 3 years warranty time,such as the valves and so on
3.Professional engineers for installation,commissioning,maintenance
4.Directed by executable remote installation(with no experience in beer,equipment installation experience,can also perform operations,please make this clear before custom equipment,we have successful cases)
If you are interested in our beer equipment.just can contact me any time
We will do my best to help you purchase the satisfied brewery.
