Specifications

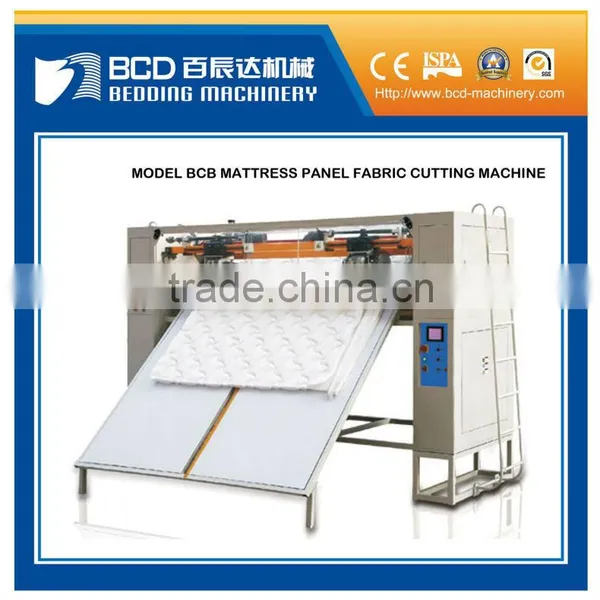

This machine is mainly used for auto cut the quilted panel ,cross cut ,vertical cut ,border cut and rolling are all available ,Mattress Panel Fabric Cutting Machine
Main application and performance

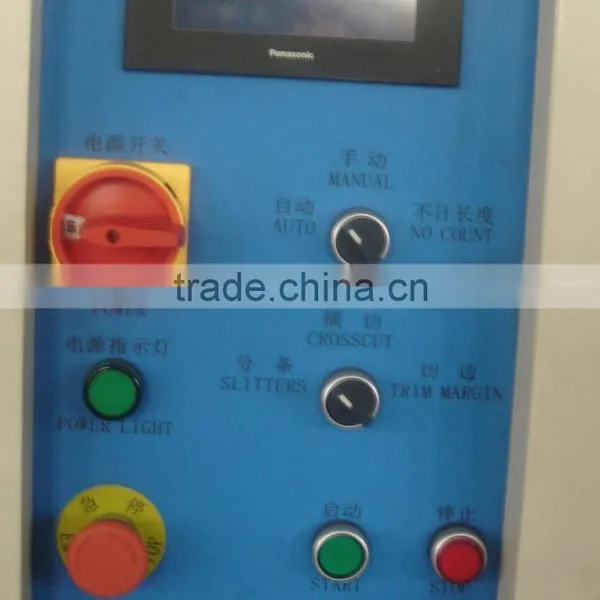

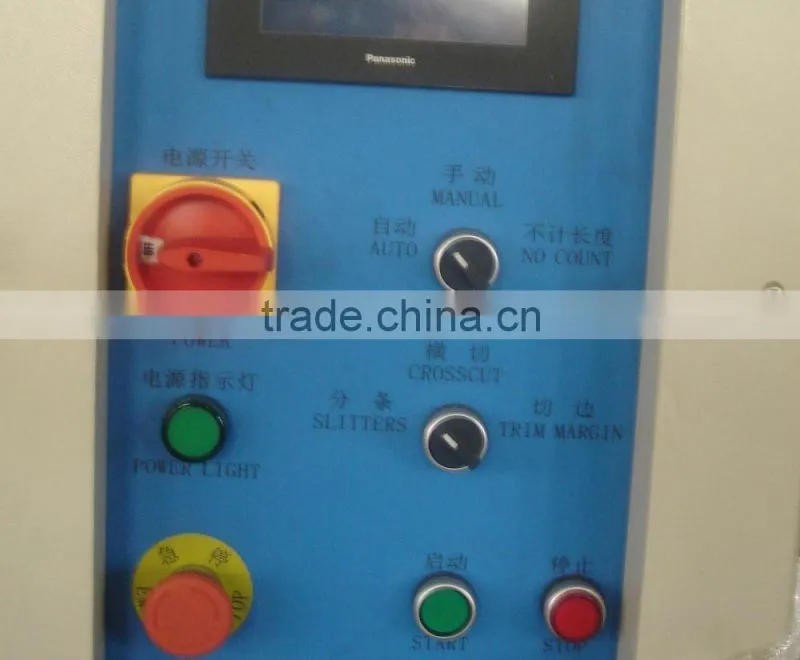

This machine is mainly used for auto cut the quilted panel ,cross cut ,vertical cut ,border cut and rolling are all available , normally equipped with quilter machine . Its feature as: 5.6 inch Panasonic touch screen ; All electric components CE certificated; Vertical cutter cover increased the security protection ;Electrical adjust of border cutter ,pneumatic electrical sharpening device,intelligent operation.Light material detection device make 5mm light material cutting available .Pneumatic intension device makes fast load fabric ; Cutting length inductor can be accurately and fast adjusted through handle,makes frequent length change used no trouble ;Box figure ,optimum design increased machine runng speed and cutting quality , higher cutting efficiency .
Technical parameters
| XMax. X cutting measure | 2400mm(edge cutting) , 2450mm(vertical slice cutting) |
| XMin. X cutting measure | 1050mm(edge cutting) , 40mm(vertical slice cutting) |
| YMax. Y cutting measure | 2500mm(Cross cutting) |
| YMin. Y cutting measure | 800mm(Cross cutting) |
| Cutting thickness available | 3~80mm |
| Output panel speed | 7.5M/min |
| Slice cut width | 160~2500mm |
| Air pressure | 0.4~0.8Mpa |
| Motor power | 2.0KW |
| Machine weight | 1500Kg |
| Machine size |
L3750×W1330×H12365mm |
Details:
Package for products:
Basic info:
Description:
1. The primary source, short production cycle, product quality guaranteed.
2. We will provide a complete after-sales service, the machine packed in wooden cases.
