Home > Auto, Motorcycle Parts & Accessories > Car Air Conditioning System > Other Car Air Conditioning System > DM18A6 24v dc Portable Air Compressor With Internal Controller for Vehicle Air Conditioning Cooling System

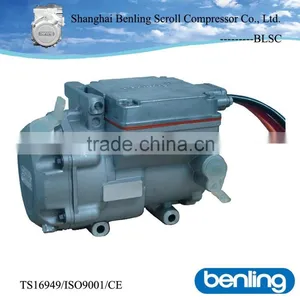

DM18A6 24v dc Portable Air Compressor With Internal Controller for Vehicle Air Conditioning Cooling System
US$ 300 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
BENLING
Model Number:
DM18A6
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DM18A7 Electric Motor for Air CompressorUS$ 300 - 500MOQ: 1 Piece -
DM18A6 dc 24v Air CompressorUS$ 300 - 500MOQ: 1 Piece
-
DC Electric A/C CompressorUS$ 300 - 500MOQ: 1 Piece
-
Half-roof A/C Unit CompressorUS$ 300 - 500MOQ: 1 Piece
-
Wall-mount Split A/C Unit Compressor 24VUS$ 300 - 500MOQ: 1 Piece
Place of Origin
China
Brand Name
BENLING
Model Number
DM18A6
Size
193x135x153
Type
Compressor
Car Make
portable air compressor
OE NO.
portable air compressor
Company sprite: Truth, honest and sincere!!!
DM18A6
DM18A6 displacement:18cc rated voltage:24v rotated speed:1600-6000
portable air compressor
| Performance(DM18A6) | |
| refrigerant capacity(3000 rpm) | 1.38kw /4700 Btu/hr |
| input power | 0.74 KW |
| current | 30A |
| refrigerant capacity(4000 rpm) | 189kw /6400 Btu/hr |
| input power | 0.98KW |
| current | 43A |
| refrigerant capacity(6000 rpm) | 2.90kw /9900 Btu/hr |
| input power | 1.16 KW |
| current | 65A |
| test condition | Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃ |
| Usable range | |
| evaporated temperature | 12 °F ~ 70°F |
| condenser temperature | 77 °F ~ 167°F |
| compression ratio | 8.0 MAX |
| refrigerant | R134a |
| start temperature | -26 °F ~ 158 °F |
| working temperature | -26 °F ~ 212 °F |
| storing temperature | -40 °F ~ 221 °F |
| Compressor parameter | |
| discharge capacity | 18.0 cc/rev |
| weight | 5.4kg |
| oil charge | 100cc PVE oil |
| refrigerant capacity | 650cc |
| rotated speed rang | 1800rpm---6000 rpm |
| safety valve pressure | 4.0 Mpa |
| cover protection level | IP67 |
| motor coil temperature | 248°F MAX |
| discharge temperature | 239°F MAX |
| Motor parameter | |
| motor type | PMSM (permanent magnet synchronous motor |
| rated tortue | 2.30 Nm |
| max tortue | refer to diagram |
| Drive parameter | |
| max power | 2000W |
| working frequency | 30HZ-120HZ |
| over heating protection | 212°F |
| low voltage protection | 20V |
| over voltage protection | 31V |
| soft hardware overload | yes |
| control method (common way) | 1, pwm 2,gear 3,can 4----- |
Please note that COP is different under
different test condition
