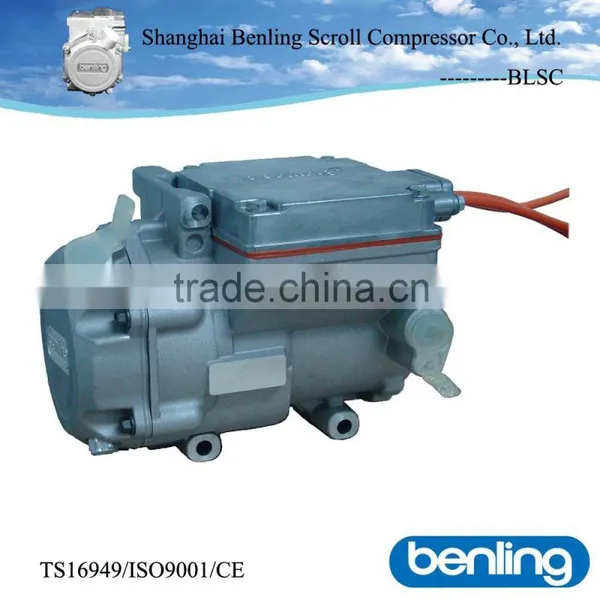

Universal Electric Car ac Compressor

Name: Universal Electric Car ac Compressor
Brand: BENLING
SKU: 127943447

US$ 300 - 500 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

BENLING

Model Number:

DM18A1

Shanghai Benling Scroll Compressor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name BENLING

Model Number DM18A1

Size 193x135x153

Type Compressor

Car Make universal electric car ac compressor

OE NO. universal electric car ac compressor

Company sprite: Truth, honest and sincere!!!

DM18A1

DM18A1 18CC 312V DC displacement:18cc rated voltage:312v rotated speed:1800-7200

universal electric car ac compressor

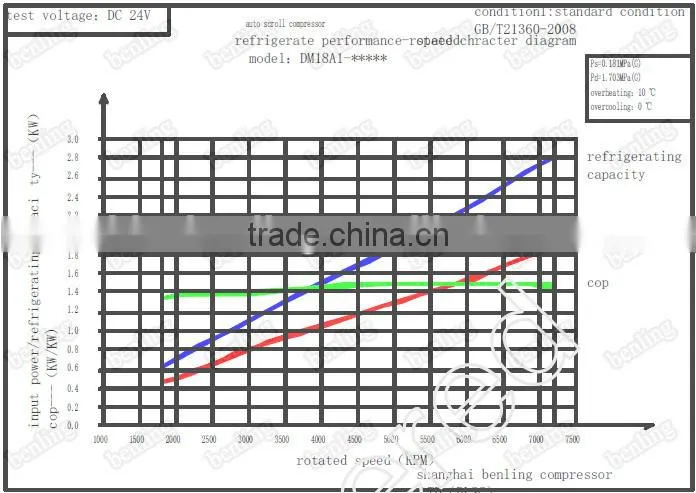

Performance(DM18A1)
refrigerant capacity(3000 rpm)	1.38kw /4700 Btu/hr
input power	0.72 KW
current	2.3A
refrigerant capacity(4000 rpm)	1.89kw /6400 Btu/hr
input power	0.98KW
current	3A
refrigerant capacity(6000 rpm)	2.90kw /9900 Btu/hr
input power	1.50KW
current	5A
test condition	Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃
Usable range
evaporated temperature	12 °F ~ 70°F
condenser temperature	77 °F ~ 167°F
compression ratio	8.0 MAX
refrigerant	R134a
start temperature	-26 °F ~ 158 °F
working temperature	-26 °F ~ 212 °F
storing temperature	-40 °F ~ 221 °F
Compressor parameter
discharge capacity	18.0 cc/rev
weight	5.2kg
oil charge	100cc PVE oil
refrigerant capacity	800cc
rotated speed rang	1800rpm---6000 rpm
safety valve pressure	4.0 Mpa
cover protection level	IP67
motor coil temperature	248°F MAX
discharge temperature	239°F MAX
Motor parameter
motor type	PMSM (permanent magnet synchronous motor
rated tortue	2.3 Nm
max tortue	3.5 Nm
Drive parameter
max power	2000W
working frequency	30HZ-120HZ
over heating protection	212°F
low voltage protection	200V
over voltage protection	430V
soft hardware overload	yes
control method (common way)	1, pwm 2,gear 3,can 4-----
