Welcome to >> WUHAN HENGYETONG GAS EQUIPMENT CO., LTD
Title: vpsa oxygen generator for large oxygen quanlity with humanized designing

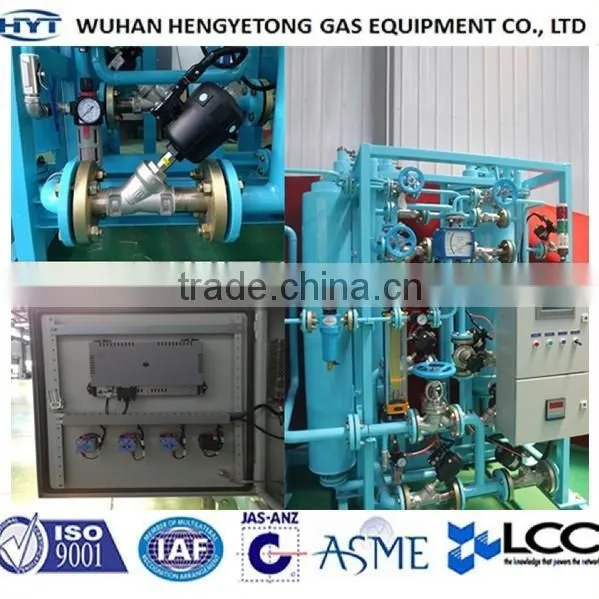

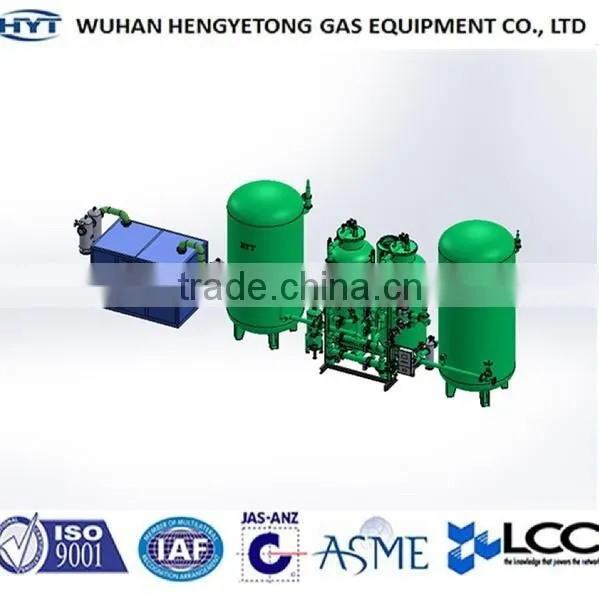

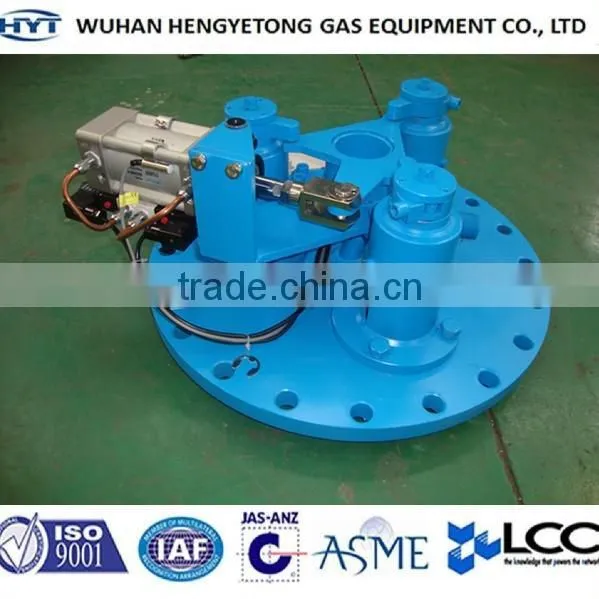

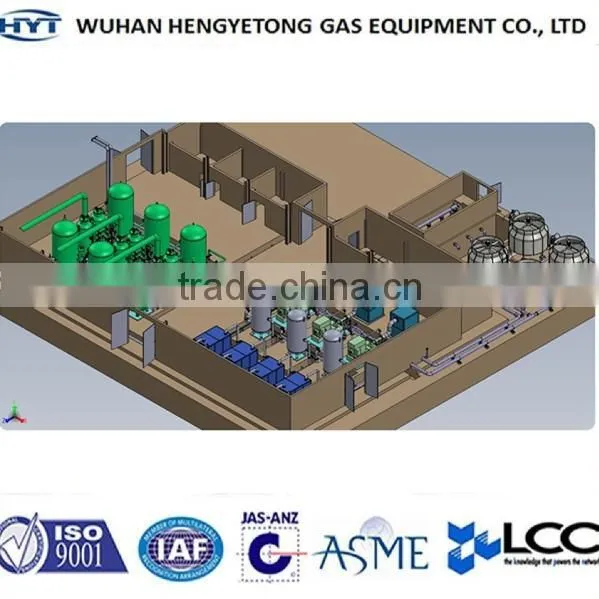

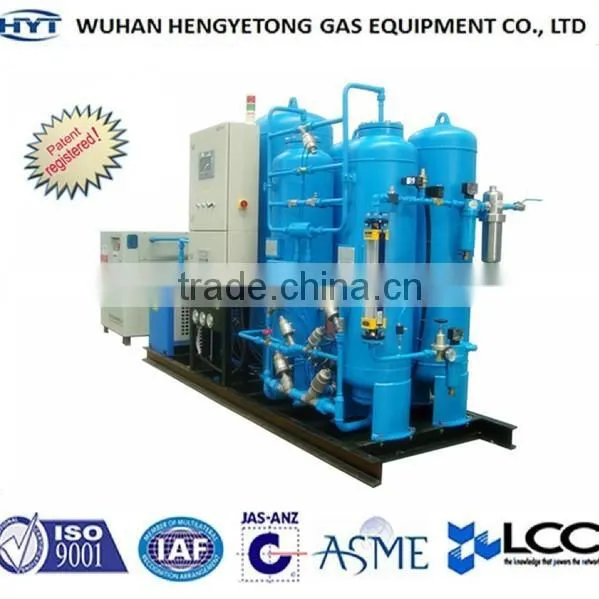

| PSA Oxygen Generator sample products | ||||||||

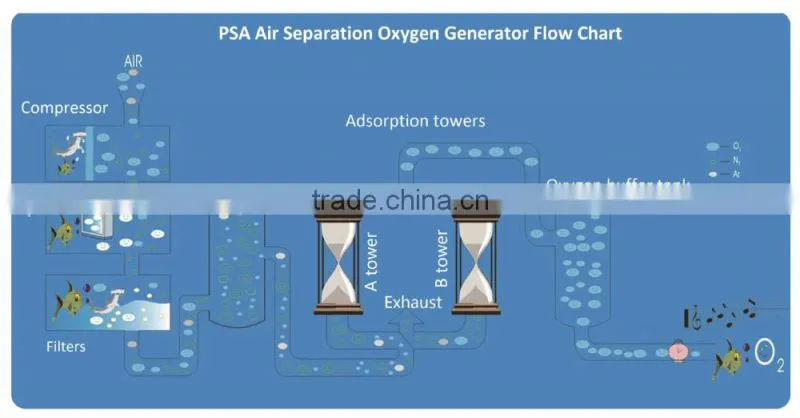

| PSA Oxygen Generator Flow Chart | ||||||||
| Basic Parameter | ||||||||
| Technical Index | ||||||||
| Compressed Air Pressure | 0.7-1.3Mpa(7Bar-13Bar) | |||||||
| Oxygen Capacity | 3-200Nm3/h | |||||||
| Oxygen purity | 93%±2% | |||||||
| Outlet Pressure | 0.3-0.5Mpa(Oxygen Generator)/15Mpa(Filling Mainifold) | |||||||
| Dew Point | <=-40℃ | |||||||
|

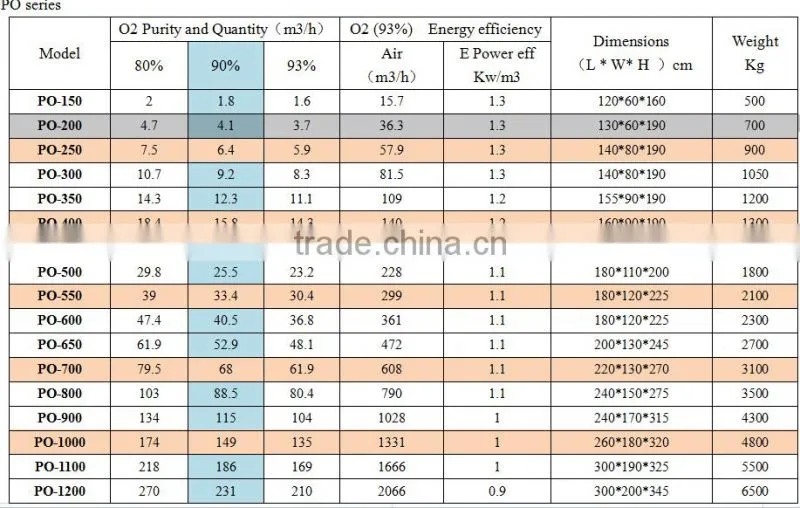

Oxygen Generator Specification | ||||||||
Reference Conditions: Operating Limits:
Compressed air effective inlet pressure: 6.0bar(g) Minimum ambient temperature: 5℃
Oxygen outlet pressure: 5 bar(g) Maximum ambient temperature: 45℃
Ambient air temperature: 20 ℃ Maximum compressed inlet air pressure 10 bar(g)
Unit inlet air quality 1.4.1 according to ISO 8573-1:2010
Minimum refrigerant dryer required to precondition inlet air
Typical oxygen quality 1.3.1 according to ISO 8573-1:2000
1.The more information you kindly tell us,the better professional service we provide for you !!!
a.what is the gas source you currently use?(cylinder/dewar/liquid gas/other)
b.Gas consumption?(Nm3/h,L/min)
c.Required gas pressure?
d.Required gas quality?(eg:Maximum oxygen percentage,Maximum moisture content,etc)
Our HYT team will design and customized relate technical project and provide the suitable selection and quotation for you in time;
2.What is the floor space of nitrogen/oxygen equipment?
Answer: Based on equipment specification;(Pre-case have indicated:nitrogen/oxygen equipment roughly have the same floor space compared with gas cylinder under same gas requirement)
3.Nitrogen/Oxygen equipment can be installed in the outdoor?
Answer: It can be installed in outdoor on condition that it have been added antifreeze,radiator,
moisture-proof devices;But most of nitrogen/oxygen equipment is installed in the indoor for saving cost;
4.Nitrogen/Oxygen equipment is safety?
Answer: Definitely!Nitrogen/Oxygen generator is a kind of air separation device under normal temperature,it can supply stable and continuous nitrogen/oxygen gas; it doesn’t need any high-pressure cylinders and liquid cylinders which have potentially dangerous;so we don’t need
to worry about no-timely supply due to special circumstance;
5.The producing nitrogen/oxygen is gaseous state or liquid state?
Answer: Our nitrogen/oxygen equipment use PSA air separation technology under normal temperature,with no-low temperature operation,the temperature of nitrogen/oxygen product is close to ambient temperature;
6.How long is the nitrogen/oxygen equipment service life?
Answer: Generally speaking,industrial equipment service life is depend on daily maintenance;
under normal maintenance,our equipment can well running for more than 10 years;
7.What is the communication mode of nitrogen/oxygen equipment?
Answer: PLC reserved by RS485 interface,support modbus communication protocol,etc;
8.Oxygen is a flammable and explosive gas or not?
Answer: No,but the oxygen is a combustion-supporting gas;
9.Which types of molecular sieves (zeolites) are used?
Answer:For the generation of oxygen by means of the pressure swing adsorption process (PSA, VPSA) mainly the following molecular sieves (zeolites)are used:
Calcium-zeolite A
Calcium-zeolite X
Lithium-zeolite X
10.What kind of oxygen equipment I need?
Answer:PSA model and VPSA model all adopt PSA technology,PSA model is suitable for small oxygen equipment,high energy consumption;VPSA model is suitable for medium-size and large size oxygen equipment,low energy consumption;
11.How is the maintenance time of oxygen equipment?
Answer: For Air purification module:the primary filters need to replace after 4000h normal operation;precision,extra-precision filters need to replace after 8000h,12000h normal operation;
valve seal seal for 16000h;other filters depend on actual operation;
12.Why the highest purity of conventional PSA,VPSA oxygen equipment is 95%?
Answer:Because the entire adsorption process can not separate out all of argon,when oxygen purity reach 95%,the other remaining gas is argon;If need more than 95% purity,you needed to add argon purification device;

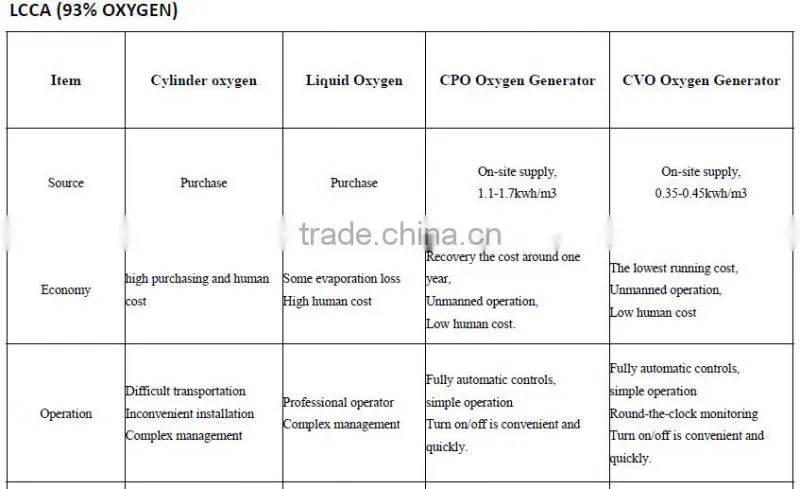

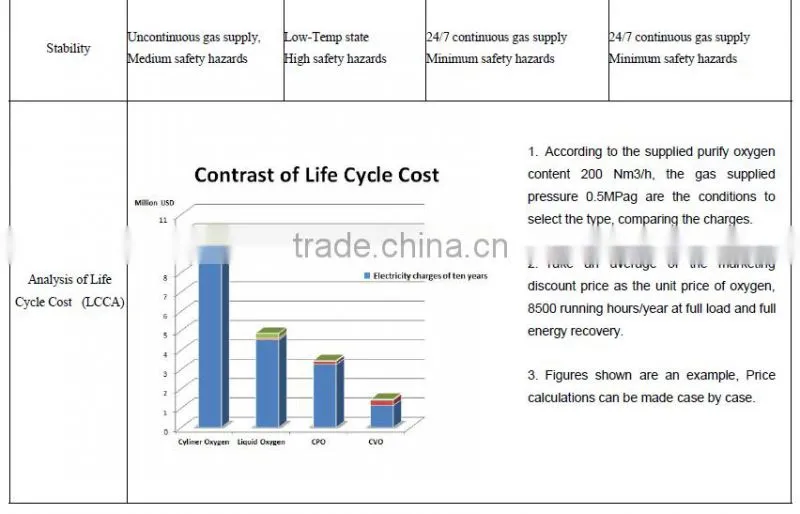

| CPO Comparison With other Oxygen supply | ||||||||

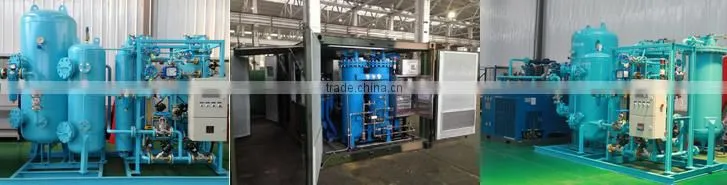

| Application | ||||||||

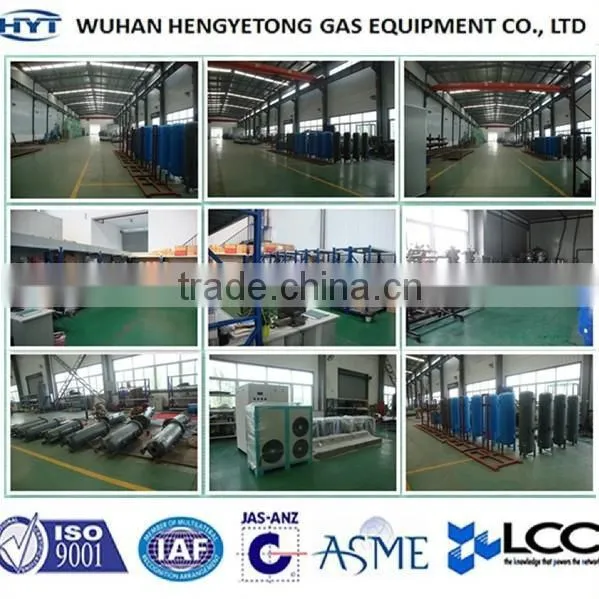

| Company show |
| Certificate of Honor | ||||||||
Packing & Shipping | ||||||||
1.Delivery time
Generally 40-60 working days after the order confirmed;
2.Packaging
1) Custom package request is appreciate.
2) Standard package: Packaged in plywood case and placed on plywood skid;
