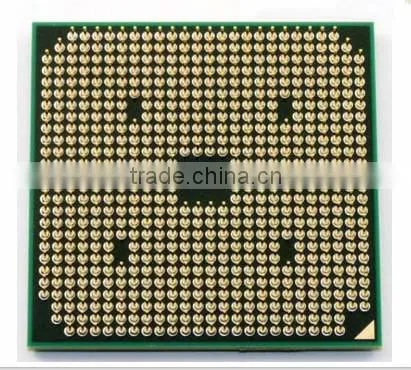

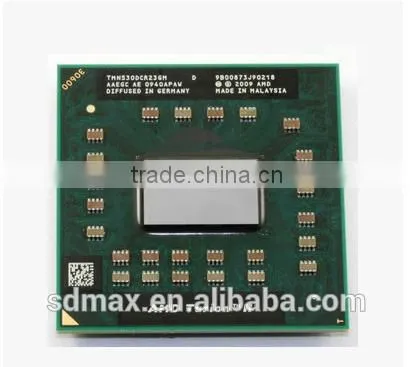

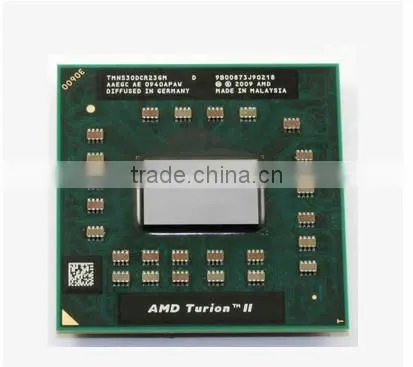

Help CenterAMD N530 TMN530DCR23GM Laptop CPU General CPU N660 N370 N640
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Original I7-4510u SR1EB Four Generation of INTEL CPU BGA EncapsulationUS$ 185 - 225MOQ: 1 Piece -
2015 Formal Version of the Original PGA I3 2330 m SR04J CPUNegotiableMOQ: 10 Pieces
-
The Original Official Version Needle Centrino Pentium M PM 1.5/1 M / 400 400 Laptop CPU SL6F9NegotiableMOQ: 1
-
Dual Cores in Stock Tray Packing 1.73GHz 1M 533MHz Intel Celeron Mobile T1400 SLAQL CPUNegotiableMOQ: 10 Pieces
-
Intel Core I7-4650U Mobile Cpu CL8064701462800 Dual Core 1.7ghz Bga SR16H i7 ProcessorUS$ 220 - 225MOQ: 1000 Pieces
Products Status
Used
Application
Laptop
Processor Brand
AMD
Type
Dual-Core
Processor Type
Other
L2 Cache
Other
Socket Type
Socket F
Main Frequency
3.6GHz
Brand Name
AMD
Model Number
FX 8120
Place of Origin
China
AMD Turion II N530 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Turion II Dual-Core Mobile |
| Model number ? | N530 |
| CPU part number |
|
| Stepping codes | AAEGC AE NAEKC AE |
| Frequency ? | 2500 MHz |
| Bus speed ? | One 1800 MHz 16-bit HyperTransport link (3.6 GT/s) |
| Clock multiplier ? | 12.5 |
| Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number | 30600 |
| Socket | Socket S1 (S1g4) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 5.6g (measured) 0.2oz / 6.5g (by specifications) |
| Introduction date | May 12, 2010 |
| End-of-Life date | Last order date is end of 2nd quarter 2011 Last shipment date is end of 4th quarter 2011 |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Danube |
| Processor core ? | Champlain |
| Core stepping ? | DA-C3 |
| CPUID | 100F63 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated, 128-bit wide |
| Level 1 cache size ? | 2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 1 MB 16-way set associative caches |
| Level 3 cache size | None |
| Cache latency [1] | 3 (L1 cache) 15 (L2 cache) |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features | PowerNow! |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1066, DDR3L-1066 Maximum memory bandwidth (GB/s): 17.1 |
| Other peripherals | HyperTransport technology 3.0 |
| Electrical / Thermal parameters | |
| Thermal Design Power ? | 35 Watt |
FAQ
Q: Is it possible to upgrade my Turion II N530 CPU?
A: Probably yes. Processor compatibility is determined by your motherboard. Please see website for CPU support list for your board.
Turion II N530 Overclocking
Sorry, we do not have overclocking data for the microprocessor at this time.
CPUs, related to AMD Turion II N530
| Model | Cores / Threads |
Frequency | L2 cache |
TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Turion II Dual-Core Mobile family, Socket S1 (S1g4) | ||||||
| Turion II P520 | 2 / 2 | 2.3 GHz | 2 MB | 25W | > | |
| Turion II P540 | 2 / 2 | 2.4 GHz | 2 MB | 25W | > | |
| Turion II N530 | 2 / 2 | 2.5 GHz | 2 MB | 35W | ||
| Turion II P560 | 2 / 2 | 2.5 GHz | 2 MB | 25W | > | |
| Turion II N550 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II N570 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
| AMD Turion II Dual-Core Mobile family, K10 micro-architecture, Other sockets | ||||||
| Turion II M500 | 2 / 2 | 2.2 GHz | 1 MB | 35W | > | |
| Turion II M520 | 2 / 2 | 2.3 GHz | 1 MB | 35W | > | |
| Turion II M540 | 2 / 2 | 2.4 GHz | 1 MB | 35W | > | |
| Turion II M560 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
| Other families, K10 micro-architecture, Socket S1 (S1g4) | ||||||
| Sempron Mobile N120 | 1 / 1 | 2.2 GHz | 512 KB | 25W | > | |
| V Series V140 | 1 / 1 | 2.3 GHz | 512 KB | 25W | > | |
| V Series V160 | 1 / 1 | 2.4 GHz | 512 KB | 25W | > | |
| Athlon II N370 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
| Phenom II X620 | 2 / 2 | 3.1 GHz | 2 MB | 45W | Unlock | > |
| Phenom II N850 | 3 / 3 | 2.2 GHz | 1.5 MB | 35W | > | |
| Phenom II X640 | 2 / 2 | 3.2 GHz | 2 MB | 45W | Unlock | > |
| Phenom II N870 | 3 / 3 | 2.3 GHz | 1.5 MB | 35W | > | |
| Phenom II X920 | 4 / 4 | 2.3 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X940 | 4 / 4 | 2.4 GHz | 2 MB | 45W | Unlock | > |
