Home > Packaging & Printing > Packing Machinery > Wrapping Machine > AUTOMATIC SLEEVE SEALING AND SHRINK PACKING MACHINE

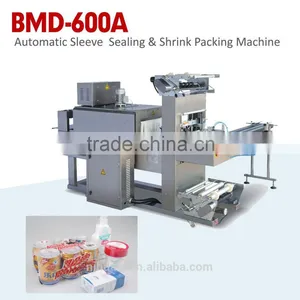

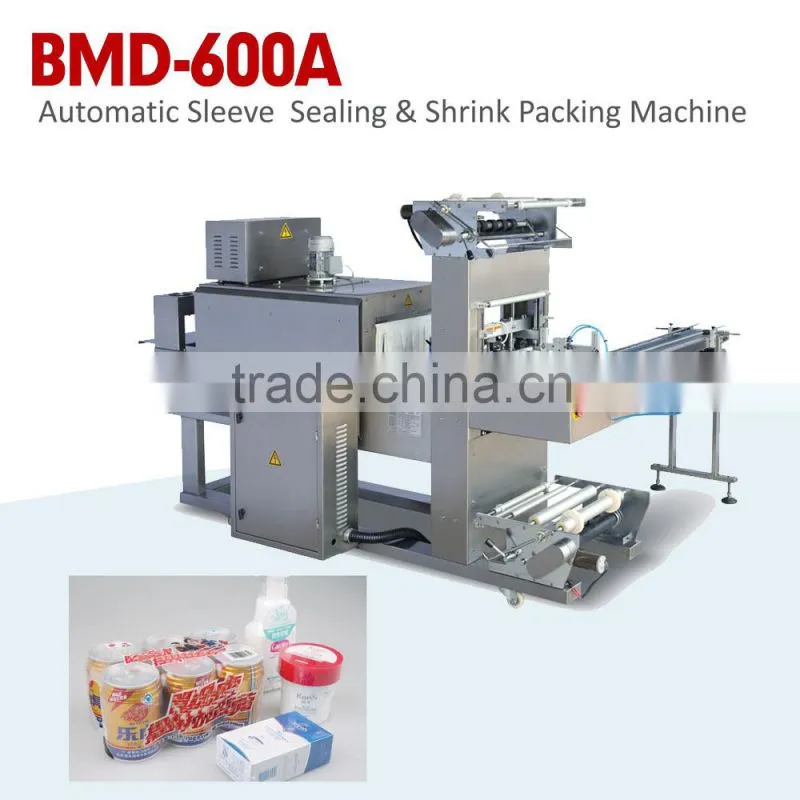

AUTOMATIC SLEEVE SEALING AND SHRINK PACKING MACHINE

Name: AUTOMATIC SLEEVE SEALING AND SHRINK PACKING MACHINE
Brand: HUALE
SKU: 127993281

AUTOMATIC SLEEVE SEALING AND SHRINK PACKING MACHINE thumbnail-1

AUTOMATIC SLEEVE SEALING AND SHRINK PACKING MACHINE photo-1

US$ 1 - 100,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Commodity, Food

Packaging Type:

Bottles, Cans, Cartons, Case

Contact Supplier Request Quote Chat Now

Nanjing Huale Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI NINGBO GZ

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Commodity, Food

Packaging Type Bottles, Cans, Cartons, Case

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage 220/380V 50Hz/60Hz

Power 8kw

Place of Origin Jiangsu, China

Brand Name HUALE

Model Number BMD-600A

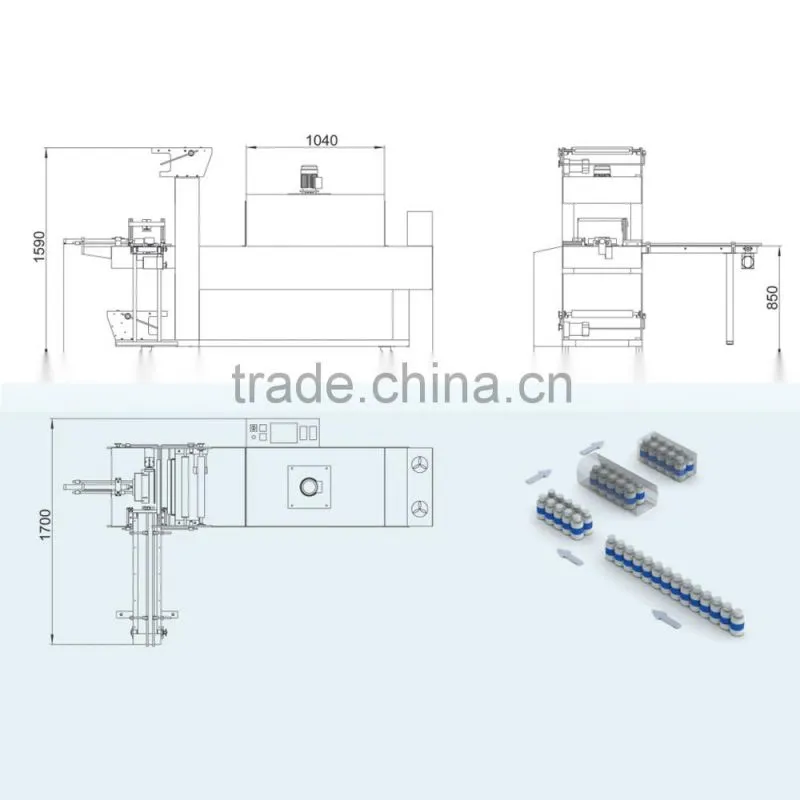

Dimension(L*W*H) 2700*1700*1590MM

Weight 600KG

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

SLEEVE SEALING AND SHRINK PACKING MACHINE

(Bottles,tins,boxes in multi-row)

TECHNICAL PARAMETERS

Sealing type	Sleeve sealing
Power supply	380V/50-60Hz/3pharse
Max product size	320(L)180(W)160(H)mm
Max packing capacity	10-20packs per minute
Film type	Polyethylene(PE) film
Max film size	380mm(width)*280mm(diameter)
Power consumption	8KW
Tunnel oven size	Entrance1050(L)450(W)220(H)mm
Tunnel conveyor speed	Variable
Tunnel conveyor	Steel mesh conveyor
Working height	850-900mm
Air pressure	≤0.5Mpa(5bar)
PLC	SIMENS 57
Sealing system	Permanently heated seal bar coated with Teflon
Operating interface	Display operation guidance error diagnostic SIMENS touch screen
Machine material	Stainless steel
Weight	600kg

APPLICATION

Medical, food,stationery,comestics and other industries in a row of small bottles or multi row of square boxes . It can be connected and work with auto labeling machine.
