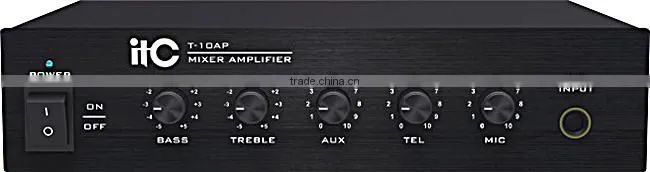

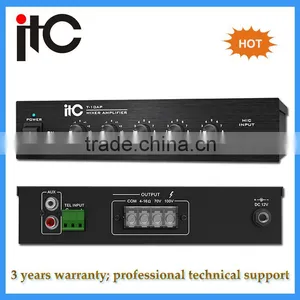

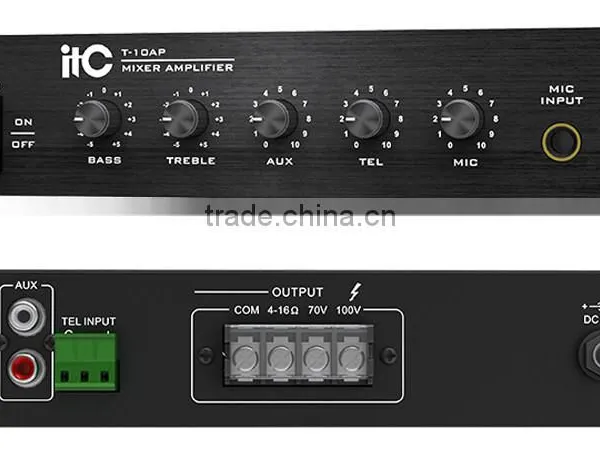

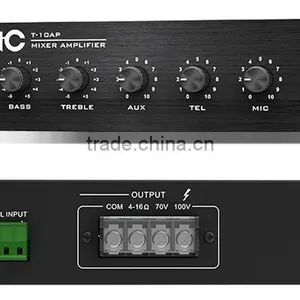

T-10AP Desktop Digital Mixer Amplifier for PA System
T-10AP is desktop power amplifier, and the rated power is 10W. It meets the demand of small scale PA system. For audio processing, it’s only with volume control so that it needs to work with preamplifier. It has 2 modes of power output to be connected with constant voltage speaker and constant impedance speaker. They’re constant voltage output at 70V or 100V and constant impedance output at 4 to 16 ohm. What’s more, it’s with excellent fan. When operating, it also keeps the environment quiet.
- Rated Power: 10W
- With 1 Mic input (5mV 1Kohm) and 1 AUX input (300mV 10Kohm)
- 1 TEL input (Sensitivity is 1V 2Kohm)

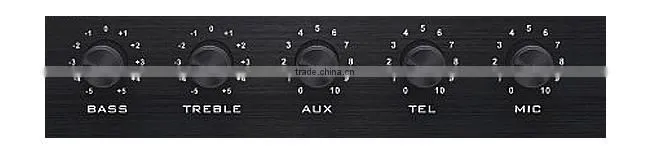

- With internal tone control (Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz)
- With the function of priority, TEL has the highest, Mic has the second, and AUX 1 has the third

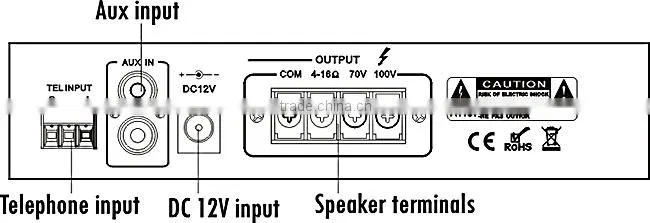

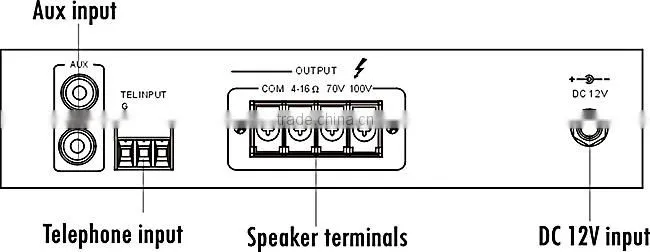

- Constant voltage output at 100V or 70V and constant impedance output at 4 to 16 ohm
| Model | T-10AP |
| Rated Power | 10W |
| Speaker Output | 4 to 16 ohm, 70V/100V |
| Sensitivity/Impedance of Input | 1V/50Kohm |
| S/N Ratio | Less than 90dB |
| Frequency Response | 50Hz to 15KHz |
| 2 Sensitivity/Impedance of Input | 5mV/1000ohm |
| S/N Ratio | Less than 62dB |
| Tone Control (Bass: 100KHz, Treble: 10KHz) | +12dB |
| 3 Sensitivity/Impedance of Input | 300mV/1000ohm |
| S/N Ratio | Less than 76dB |
| Frequency Response (+2dB) | 50Hz to 15KHz |
| Tone Control (Bass: 100KHz, Treble: 10KHz) | +12dB |
| Front Output | 0dBV/600ohm |
| T.H.D. | <0.5% |
| Line Output | 10dB/3 Kohm |
| Cooling | Forced Wind |
| Power Supply | AC 110V of 60Hz or AC 230V of 50Hz or DC 24V |
| Dimension (mm) | 200*150*44 |
| Weight | 3.2Kg |
ITC promise the electronics yearly failure rate is less than 1%.
ITC guarantee all electronics of 3 years quality warranty.
ITC could supply 1% wearing spare parts free of charge.
ITC guarantee all loudspeakers of 6 months quality warranty.
All of quality complaint shall be attached with serial number, failure test report and photos.
All of the quality compliant shall be feedback with a solution within 48 hours.
ITC could supply circuit diagram documents for repair.
- Well-trained sales team for sales and basic technical service.
- New product promotion and seminar for all employees.
- Two English spoken technician provide online after sales service.
- Online system software demo and configuration is available.
- 30 system consultants and 10 designers to make drawing and BOQ for each tender.
- Design and BOQ response to customer within 48 hours.
- PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
- Technical documents could be downloaded from website
