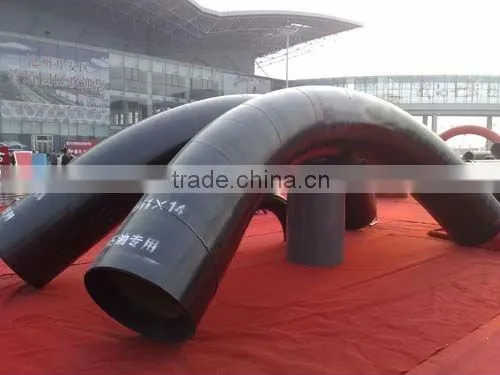

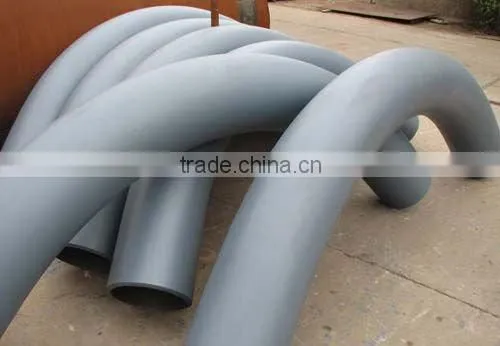

Carbon Steel 5D Bend lr 45d Elbow

Name: Carbon Steel 5D Bend lr 45d Elbow
Brand: geepipe
SKU: 128034841

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Material:

Carbon Steel

Technics:

Other, Forged, Forged

Type:

Other, pipe bend

Hebei Gee Pipe Mill Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Material Carbon Steel

Technics Other, Forged, Forged

Type Other, pipe bend

Place of Origin Hebei, China

Model Number DN15-DN550, 1/2"-100"

Brand Name geepipe

Connection Welding

Shape Equal

Head Code Other, round

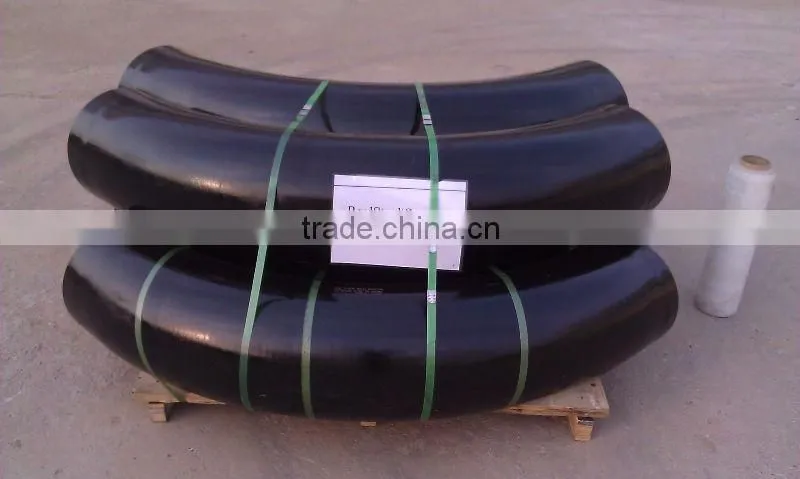

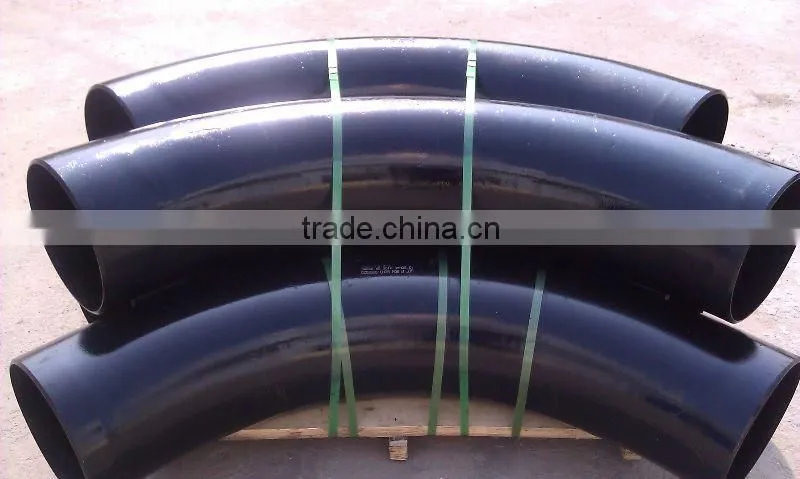

Bend

Bend is bent by the full set of curving mold. No matter which kind of machinery and equipment,

most of them use the pipe. The pipe is mainly used for oil, gas, fluid, etc, especially in the aircraft and its engine.

Type	Bend
Size	Outer Diameter (D): D<=1220mm / Wall Thickness (T): T<=120mm
Wall thickness	sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Standards	ASME B16.49-2007 ASME B16.25-2007 SY/T5257-2004 DL/T515-2004 GD2000 GD87-1101
Material	A234-WPB A234-WP12 A234-WP11 A234-WP5 A403-WP304 A403-WP304L A403-WP316. A403-WP316L A420-WPL6, Ceramic Lined Special alloys: cooper nickel, Ni-based, Cu-based, Co-based, Fe-based
Bending radius	3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D
Bending Angel	Degree 15, 30, 45, 60, 90, 135, 180 and also could manufacture according the angles given by the clients.
Straight Length	The length between two ends general from 300mm-1500mm, and also can product according to the clients' requiry.
Surface treatment	Transparent oil, rust-proof black oil or hot galvanized
Packing	wooden case, pallet, container
Applications	Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order	1 piece
Delivery time	7 after receipt of advanced payment
Certification	API, CCS, and ISO9001:2000
Delivery Term	FOB(30% down payment in advance, the balance before shipment) CIF or C&F(30% in advance , the balance against with the copy of B/L)
