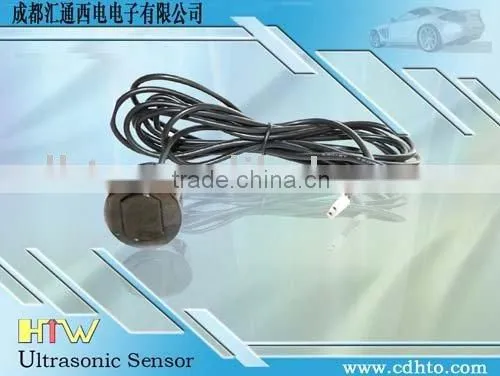

HT-XX-22E/16B2, Parking Sensor
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Parking Sensor System
Voltage:
DC 12V
Place of Origin:
Sichuan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT-XX-20B/14B1, Ultrasonic Parking Sensor With High ReliabolityUS$ 1 - 10MOQ: 1 Piece -
Sell HT-XX-20A/14B1 Assembled Ultrasonic SensorUS$ 0.1 - 1MOQ: 100 Pieces
-
Distance Parking SensorUS$ 1 - 10MOQ: 1000 Pieces
-
HT-XX-22B/16B2, Parking SensorNegotiableMOQ: 1 Piece
-
Ultrasonic Parking Sensor With High ReliabilityUS$ 1 - 10MOQ: 1 Piece
Type
Parking Sensor System
Voltage
DC 12V
Place of Origin
Sichuan, China
Brand Name
HTW, HTW
Model Number
HT-XX-22E/16B2, HT-XX-22E/16B2
Specifications
Functions of HT-XX-22E/16B2:It is widely used in car parking system to detect the distance of the obstacles.
I. Features of parking sensor HT-XX-22E/16B2:
1. High Sensitivity.
2. High Reliability.
3. Less Power Consumption.
4. Waterproof.
5. Easy to installation.
II. Certifications:
ISO9001/TS16949/RoHS
III. Specifications:
- Nominal Frequency (kHz) 40±1
- Capacity (pf) 2000±15%
- Sound Pressure Level (dB) 100±5
- Sensitivity (dB) -73±5
- Ring Time (ms) ≤ 1.2
- Resistance (Ω) 500
- Directivity ( °) 110×70
- Max. Input Voltage ( Vp-p) 150
- Operating Temp. Range ( °C) -35±80
- Storage Temp.Range ( °C) -40±85
