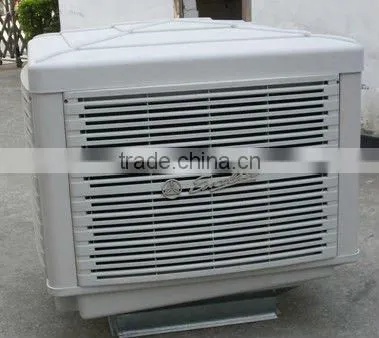

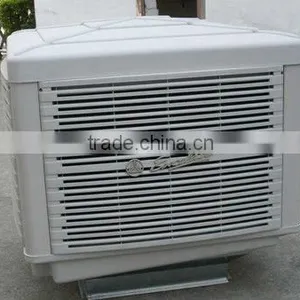

Industrial Evaporative air cooler/evaporative ventilator
covers 130 sqm with 1 kW/h.
Advantages of Excelair Cooler:
--Comparatively low invest, high efficiency ( The Return of Investment (ROI) is good because the Evaporative ventilator only consumes 1/8 electricity of traditional air-conditioning. The saving of an annual electricity bill can cover the system’s investment cost )
-- Low operation cost, low operation cost ( The operation fee is low because the electricity for every evaporative ventilator is only 1KW/hr)
-- Clean and quality air delivered to the workshop (Outside hot air will pass the filter pad. Better quality air will be delivered to the workshop) .
-- Low operation cost ( The operation fee is low because the electricity for every evaporative ventilator is only 1KW/hr)
# Evaporative ventilator Perfomance:
* Airflow : 16000 m3/h
* Max. Air pressure: 120 pa
* Designed Air Speed: 10 m/s
* Evap. Efficiency: ~ 92%
* Water Capacity : 15 Liters
* Power Supply: 220V, 50Hz
* Power Consumption : 0.3 ~ 1.2 kW
# Operation:
* Airflow Adjust: 6 segment
* Programmed on /Off : 6 Stages
* Filter Washing : Auto/Manual
* UV Water Sterillizing System: Auto
* Auto Drain: Auto
# Dimension:
* Size of Dropper Duct : 668x668 mm
* Make-up Water Inlet : 1/2"
* Drain water Oulet : 40 mm
* Installed Dimension : 1040x1040x1105 mm
* Shipping Dimension : 1040x1040x1230 mm
# Weight:
* Operation Weight : 95 kg
* Shipping Weight : 88 kg
# Loading:
* 20-feet container: 18 units
* 40-feet container: 38 units
# Applications:
* Suitable for the industrial workshop such as :
Plastic injection, die-casting, spray coating, rubber processing, silkscreen, toys assembly electronics, household appliances, shoes, printing, cladding, hardware, food processing, textiles, garments and dyeing, laundries, greenhouse
*Working principle :
Cool the outside air temperature with the directly evaporative cooling, supply the cool and fresh air into the workshop, and then exhaust the hot air outside. The temperature of the workshop will be cooled down by exchanging the air inside
