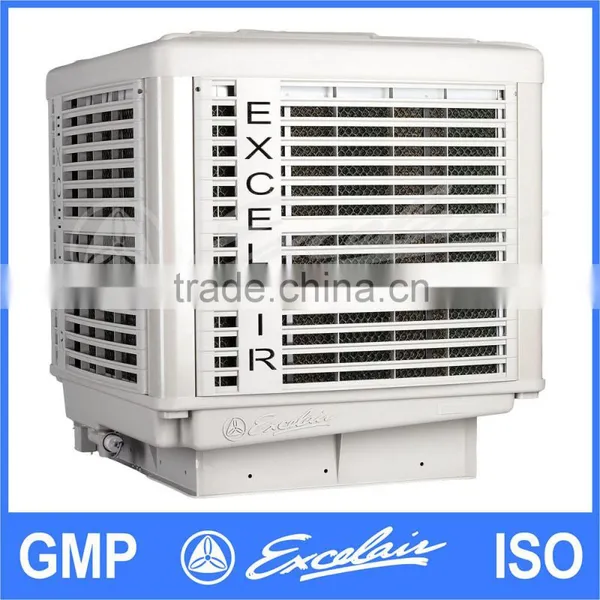

Help CenterEvaporative Air Cooler for Factory Air Cooling System
Related Products
Factory Evaporative cooling system
Model & Specification
| Model | EX767 | EX767A |
| Airflow | 16000 m3/h | 15200m3/h |
| Cover Area | 100~130m2 | 100~130 m2 |
| Max. Air pressure | 120 pa | 120 pa |
| Designed Air Speed | 10 m/s | 9.4 m/s |
| Evap. Efficiency | ~ 92% | ~ 92% |
| Water Capacity | 15 Liters | 15 Liters |
| Power Supply | 220V, 50Hz | 220V, 50Hz |
| Power Consumption | 0.3 ~ 1.2 kW | 0.3 ~ 1.2 kW |
| Airflow Adjust | 6 segments | 6 segments |
| Programmed on /Off | 6 stages | 6 stages |
| Filter Washing | Auto/Manual | Auto/Manual |
| UV Water Sterillizing System | Auto | Auto |
| Auto Drain | Auto Drain | Auto Drain |
| Size of Dropper Duct | 668x668 mm | 668x668 mm |
| Make-up Water Inlet | 1/2" | 1/2" |
| Installed Dimension | 1040x1040x1105 mm | 1040x1040x1105 mm |
| Shipping Dimension | 1040x1040x1230 mm | 1040x1040x1230 mm |
| Operation Weight | 95 kg | 89 kg |
| Shipping Weight | 88 kg | 81 kg |
| 20-feet container | 18 units | 18 units |
| 40-feet container | 38 units | 38 units |
Evaporative cooler cool the outside air temperature with the directly evaporative cooling, supply the cool and fresh air into the workshop, and then exhaust the hot air outside. The temperature of the workshop will be cooled down by exchanging the air inside.
Suit for the industrial workshop such as :
Plastic injection, die-casting, spray coating, rubber processing, silkscreen, toys assembly electronics, household appliances, shoes, printing, cladding, hardware, food processing, textiles, garments and dyeing, laundries, greenhouse
Over 20 years design and manufacturing experience in the industrial cooling systems. Have made a lot of solutions for many famous enterprises. Insist on quality first for more than two decades, which made us the leader in factory systems industry in China.
Certificate
Q1: What’s the material of you air duct?
A1: The inside material of our PIP air ducts is polyurethane, and the outside material is aluminum foil, which makes our air ducts very light and durable.
Q2: What’s the difference of your air ducts from the zinc - iron air ducts?
A2: Compare with the zinc-iron air ducts, our PIP air ducts have the advantages of light, easy installation, long life span, easy washing and anti-rust etc.
Q3: Why the ducts are in different shape?
A3: We design and produce the air ducts for you. When you get them. You just connect them piece by piece by the special flanges.
Q4: How much is one square meter?
A4: We don’t sell the duct panels. All the ducts are ready make products. You give us your size and dimension. Our engineer will design you the proposal.
Q5: Since you ducts are ready-made products, they occupy a lot of space, which will take too much shipping cost. How do you solve this problem?
A5: We will try our best to put the small duct into the big ones, then it can save a lot of space. What’s important, the high-efficiency of our installation, long life span and low maintenance costs will make your investment rewarding.
