Evaporative air cooler water air cooler price low power consumption desert air cooler
Working principal of Evaporative air cooler
Reduce the workspace temperature to an optimal comfort level by using “evaporative air cooling”, free latent energy derived from the air in the from of water evaporation produces cooled air and reduced
temperature. In other words, this is the intelligent choice of cost -saving energy for effective cooling.
Specifiation of Excelair air cooler
Model |
EX767 | EX767A |
| Airflow | 16000 m3/h | 15200m3/h |
| Cover Area | 100~130m2 | 100~130 m2 |
| Max. Air pressure | 120 pa | 120 pa |
| Designed Air Speed | 10 m/s | 9.4 m/s |
| Evap. Efficiency | ~ 92% | ~ 92% |
| Water Capacity | 15 Liters | 15 Liters |
| Power Supply | 220V, 50Hz | 220V, 50Hz |
| Power Consumption | 0.3 ~ 1.2 kW | 0.3 ~ 1.2 kW |
| Airflow Adjust | 6 segments | 6 segments |
| Programmed on /Off | 6 stages | 6 stages |
| Filter Washing | Auto/Manual | Auto/Manual |
| UV Water Sterillizing System | Auto | Auto |
| Auto Drain | Auto Drain | Auto Drain |
| Size of Dropper Duct | 668x668 mm | 668x668 mm |
| Make-up Water Inlet | 1/2" | 1/2" |
| Installed Dimension | 1040x1040x1105 mm | 1040x1040x1105 mm |
| Shipping Dimension | 1040x1040x1230 mm | 1040x1040x1230 mm |
| Operation Weight | 95 kg | 89 kg |
| Shipping Weight | 88 kg | 81 kg |
| 20-feet container | 18 units | 18 units |
| 40-feet container | 38 units | 38 units |

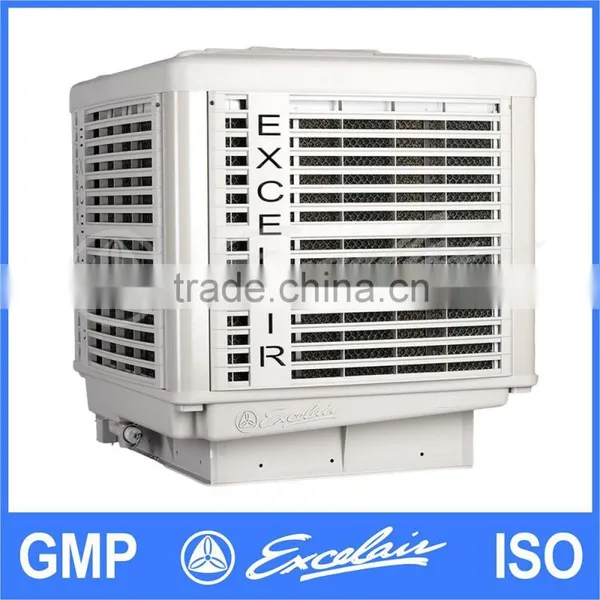

Product image

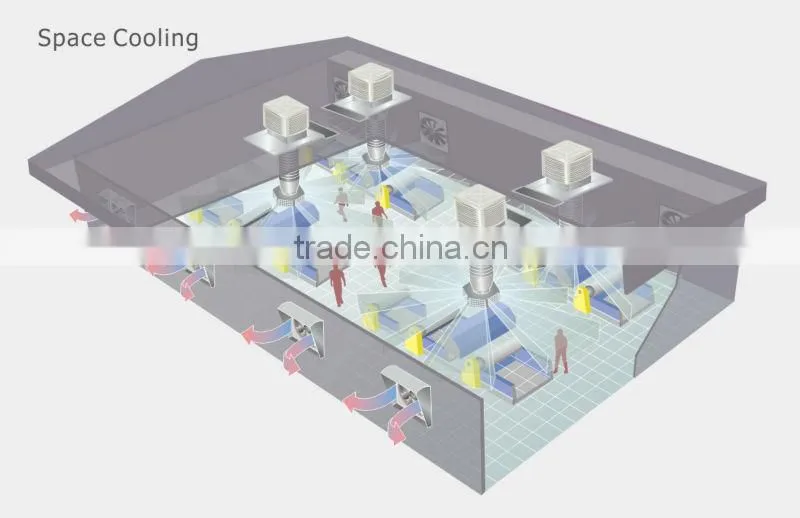

Space Cooling prerequisite
1) Locations of workers are not fixed
2) Focus on all-round heat reduced environment
3) Space Pressurization is desired to prevent dust entry
4) Heat source is confined or controlled
5) Workspace volume is small

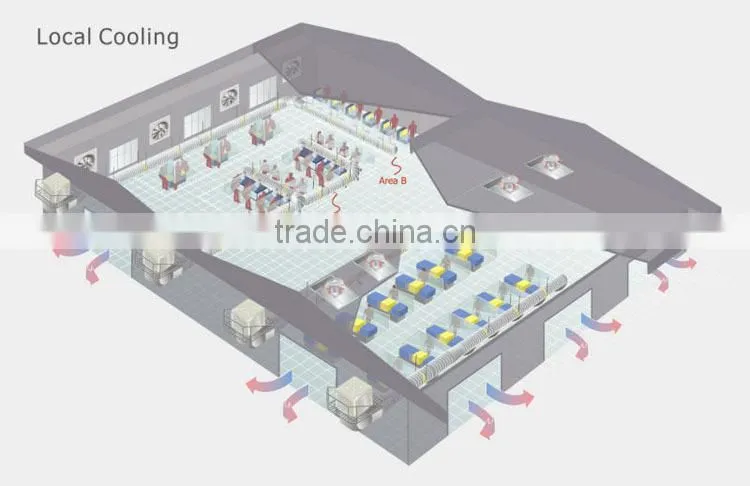

Local Cooling prerequisite:
1) Area of workspace is large
2) Location of workers or equipments are fixed
3) Operation area is entirely different from other area
4)I t is no need to cooling besides the operation area
5) Workspace volume is small

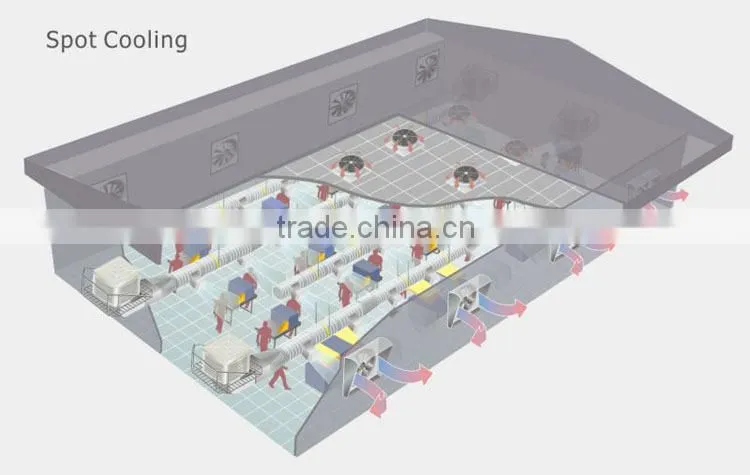

Spot Cooling prerequisite
1) Location of workers are generally fixed
2) Workspace volume is large
3) Heat source is distributed all over
4) Minimum capital layout
5) Focus on maximum comfort for workers
Our cooling systems are very popular with the advantages of hign quality, easy installation and energy saving. We have cooperated with a lot of famous enterprise in China and oversea market
Certificate
