Help CenterG80 EYE / CLEVIS /SWIVEL SELFLOCK HOOK
Related Products
Specifications
1.MATERIAL: ALLOY2.USE: FOR G80 CHAINS
3.ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.G80 EYE / CLEVIS /SWIVEL SELFLOCK HOOK
G80 EYE / CLEVIS /SWIVEL SELFLOCK HOOK
1.MATERIAL: ALLOY
2.USE: FOR G100 CHAINS LIFTING
3.CERTIFICATE:ISO9001 CE GS
4.SURFACE:PLASTIFIED
5.PROCESS: FORGED
6.KEY WORDS: G80 EYE / CLEVIS /SWIVEL SELFLOCK HOOK

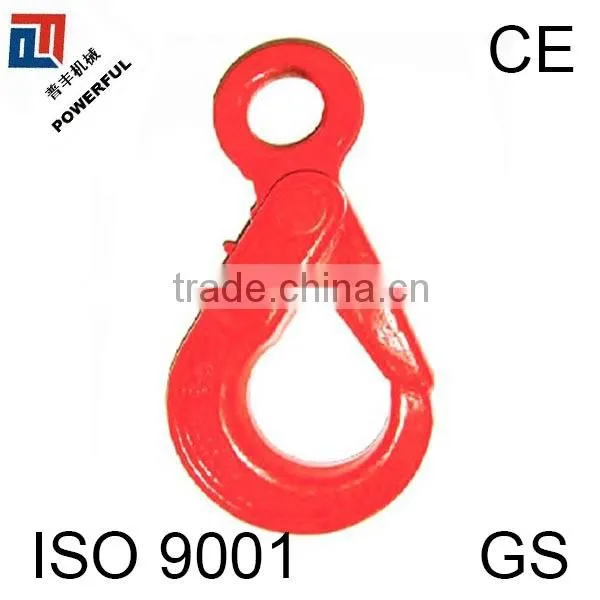

EYE TYPE :
| G80 EYE SELFLOCK HOOK | |||||||||
| ITEM NO. | WEIGHT | WLL | BL | M±1 | R±2.5 | D±1 | R±1 | H±1 | E±2 |
| KG | T | T | |||||||
| 6 | 0.5 | 1.12 | 4.18 | 22 | 110.5 | 10 | 34 | 19.5 | 28 |
| 7/8 | 0.8 | 2 | 8 | 25 | 136 | 12 | 46 | 24 | 34 |
| 10 | 1.43 | 3.15 | 12.6 | 32 | 171 | 15 | 56 | 30 | 44 |
| 13 | 2.86 | 5.3 | 21.2 | 40.5 | 208.5 | 19.5 | 69 | 40 | 52 |
| 16 | 5.64 | 8 | 32 | 56 | 257.5 | 22 | 86 | 50.5 | 60 |
| 20 | 7.6 | 12.5 | 50 | 64.5 | 275 | 27 | 100 | 55 | 81 |
| 22 | 13 | 15 | 60 | 70 | 320 | 30 | 98 | 67 | 82 |
| 26 | 18 | 21.2 | 84.8 | 80 | 363 | 34 | 110 | 75 | 110 |
| 32 | 44.5 | 31.5 | 126 | 105 | 472 | 45 | 166 | 97 | 168 |
CLEVIS TYPE:
| G80 CLEVIS SELFLOCK HOOK | ||||||||
| ITEM NO. | WEIGHT | WLL | BL | E±2 | B±0.5 | H±1 | N±1.5 | R |
| KG | T | T | ||||||
| 06 | 0.5 | 1.12 | 4.48 | 29 | 8.5 | 19.5 | 34 | 95.5 |
| 7/8 | 0.8 | 2 | 8 | 34 | 9.5 | 24 | 46 | 121 |
| 10 | 1.5 | 3.15 | 12.6 | 44 | 12 | 30 | 56 | 146 |
| 13 | 2.8 | 5.3 | 21.2 | 52 | 15 | 40 | 69 | 182 |
| 16 | 5.6 | 8 | 32 | 60 | 18 | 50.5 | 86 | 218 |
| 20 | 7.5 | 12.5 | 50 | 83 | 25 | 55 | 100 | 240 |
| 22 | 11.5 | 15 | 60 | 88 | 25.5 | 67 | 98 | 276.5 |
| 26 | 18.5 | 21.2 | 84.8 | 95.5 | 30 | 75 | 110 | 310.5 |
| 32 | 49.1 | 31.5 | 126 | 160 | 36 | 97 | 166 | 411.5 |
SWIVEL TYPE:
| G80 SWIVEL SELFLOCK HOOK | |||||||||
| ITEM NO. | WEIGHT | WLL | BL | B±2 | C±2 | D±1 | L±3 | T±1.5 | E±2 |
| KG | T | T | |||||||
| 06 | 0.71 | 1.12 | 4.48 | 32.5 | 22 | 11.25 | 170 | 34 | 29 |
| 7/8 | 1.1 | 2 | 8 | 35.5 | 26 | 12.5 | 210 | 46 | 34 |
| 10 | 2 | 3.15 | 12.6 | 42 | 34 | 15 | 247 | 56 | 44 |
| 13 | 4 | 5.3 | 21.2 | 50 | 38.5 | 16 | 302 | 69 | 52 |
| 16 | 7.3 | 8 | 32 | 61 | 55 | 21.5 | 383 | 86 | 60 |
| 20 | 11.6 | 12.5 | 50 | 72 | 61 | 26 | 418 | 100 | 83 |
| 22 | 16 | 45 | 60 | 95 | 95 | 33 | 527 | 98 | 88 |
| 26 | 21.5 | 21.2 | 84.8 | 122 | 115 | 42 | 610 | 110 | 95.5 |
| 32 | 79 | 31.5 | 126 | 140 | 146 | 52 | 777 | 166 | 150 |
Never exceed Working load Limit
SUPER ALLOY STEEL: QUENCHED AND TEMPERED
INDIVIDUALLY PROOF TESTED AT 2.5TIMES WORKING LOAD LIMIT.
BREAKAGE TEST AND FATIGUE TEST AT 1.5 TIMES WORKING LIMIT FOR 20000 CYCLES
100% MAGNAFLUX CRACK DETECTION.
SUITABLE FOR 1 OR 2 LEGS G80 CHAIN SLING AS PER EN818-4
SURFACE FINISH : POWDER PLASTIFIED
Packing: packed in cartons then on pallets or packed in wooden case
Port: Any China main port.
Shipping : within 30days.
We have more than 10 years export experience. We are specialized in producing and exporting all kinds of chains, rigging hardware, casting and forging items, stainless steel products and other related products.
As a leading company in this industry in China, we provide favorable prices, good quality and the best services.
All members of our team will be very honored if you contact us. We will offer the best services to you.
The prodcution has passed the ISO9001 international quality system certificaion ,has been authorized the CE certification .
I'm Eileen Wang, any question , please contact with me, I will be always on line and at your service.
