Help CenterPheaton UD3278k Fast Printing Speedy Wide Format Solvent Printer
Related Products
-
Pheaton UD-3278K SPT510 Solvent Printer, 3.2m Solvent Printing Machine ( 157sqm/hour,high Quality )US$ 5,000 - 13,000MOQ: 1 Set -
Fast Speedy for 3.2m Solvent Printer UD-3278K With 4 or 8 Spt 510/35pl Printhead ,high Dpi!hot Sale !US$ 5,000 - 13,000MOQ: 1 Set
-
Pheaton UD 3278k Large Format Printer With 8pcs Spt 510 50PLUS$ 5,000 - 13,000MOQ: 1 Set
-
Pheaton UD 3206P Inkjet Printing Machine (6 Colors ,6 Heads,high Quality)US$ 5,500 - 13,000MOQ: 1 Set
-
Pheaton UD 3286Q Large Format Printer With SPT508GS PintheadUS$ 5,500 - 13,000MOQ: 1 Set
1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service
Description

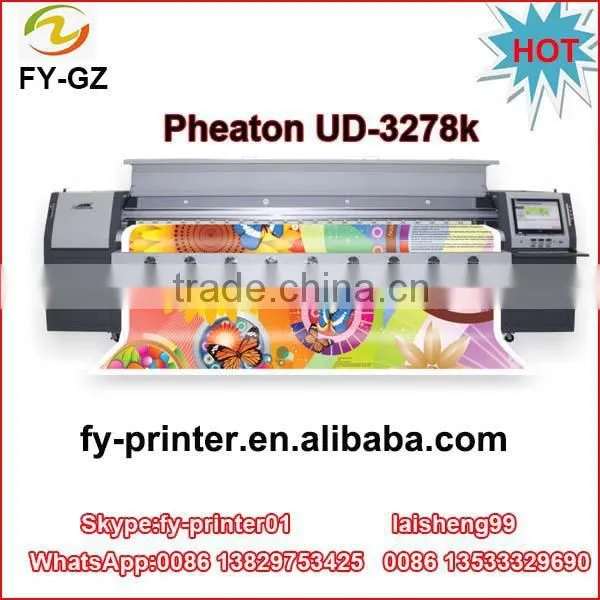

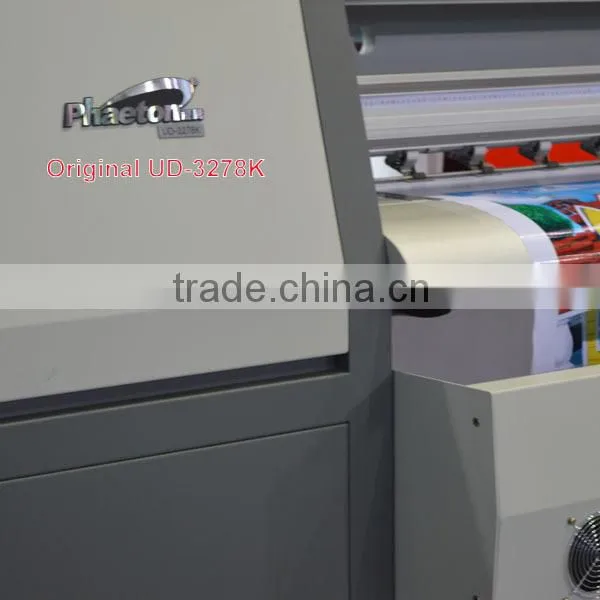

Pheaton UD3278k Fast printing speedy Wide Format Solvent Printer displayed in exhibition
Technical data of Pheaton UD3278k Fast printing speedy Wide Format Solvent Printer
1,Equipped with 8 SPT 510-50PL print heads
2,Fast printing speedy, 157m2/h
3,AC servo motor is used to run the carriage quicker and more stable.
4,Individual color cleaning minimizes the waste of the ink;
5, way intelligent heater (pre/print/post) helps bring more vivid output
Printhead SII Printek Inc. |
SPT510-50PL(Model :UD-3278K) |
|
Number of printhead |
4 or 8 Heads |
|
Maximum print width |
3,200mm |
|
Print Speed (m2/h) |
D |
2 PASS 157 |
S |
3 PASS 109 |
|
Q |
4 PASS 85 |
|
HQ |
4 PASS 70 |
|
C |
6 PASS 53 |
|
Ink |
Type: |
Solvent Ink / ECO Solvent Ink |
Color : |
Double 4 Color (C,M,Y,K) |
|
Capacity: |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply System |
|
Media Width |
Maximum 3,300mm |
|
edia Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
|
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
|
Auto Cleaning System |
Individual Positive Pressure Cleaning |
|
Pre-heating & Drying System |
Equipped |
|
Clamp |
Equipped |
|
Print Interface |
USB 2.0 |
|
Printhead Height |
2 to 6 mm from Media |
|
RIP Software |
Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
|
Input Power |
AC 220V, 50Hz/60Hz |
|
Machine Dimension / N.W |
L4, 786 x W1,000 x H1,350mm / 685KG |
|
Package Dimension / G.W |
L4, 980 x W1,400 x H1,640mm / 968KG |
|
Pheaton UD3278k Fast printing speedy Wide Format Solvent Printer in my warehouse
Export much container Pheaton UD3278k Fast printing speedy Wide Format Solvent Printer to oversea
Welcome to visit our factory you will learn more
Some Infiiniti/challenger/pheaton sk4 ink,galaxy Dx5 and UV ink from our company
Some more impoartant parts from our company
Our customers from
Africa :Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia
South America: Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela,
North America :Mexico , Panama , Dominican Republic ,Guatemala Honduras
European :Poland ,France , Spain , Russia, Portugal .....
Asia :Fiji , Iraq , Afghanistan , Saudi Arabi ,UAE , the Philippines , Bangladesh Thainland ...
For more information ,please feel free to contact as following:
skype: fy-printer01 laisheng99
whatsApp:+86 13829753425 +86 13533329690
