Help CenterPheaton UD-3208E Solvent Printer With 8pcs Spt 510/35PL Head
Related Products
-
Pheaton UD 3208Q Solvent Spt510 Head PrinterUS$ 5,500 - 13,000MOQ: 1 Set -
1440dpi Phaeton UD-3286E Indoor Outdoor Banner PrinterUS$ 8,000 - 17,000MOQ: 1 Set
-
Phaeton Ud-3208q Large Format Digital Printing Machine Spt510 Printhead Eco Solvent Inkjet PrinterUS$ 5,500 - 13,000MOQ: 1 Set
-
New UD-3286Q SPT508GS Printer With 6 Printhead and (C,M,Y,K,Lc,Lm)US$ 5,500 - 13,000MOQ: 1 Set
-
High Speed Flex Banner Printing Machine Made in China With SPT510 PrintheadUS$ 5,500 - 13,000MOQ: 1 Set
Our service
1,Big Discount!Best quality and after-service.
2,Welcome to jion our working team ,you will find that we are the same channel !!
We will provide you
1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service

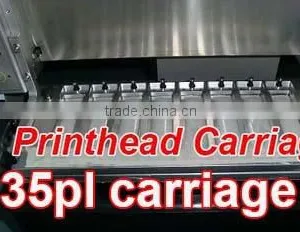

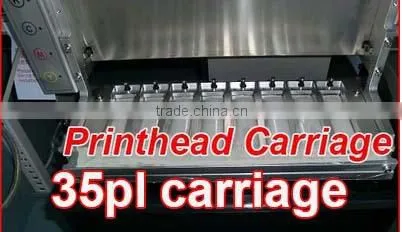

1, Equipped with 8 SPT 510-35PL print heads.
2, AC servo motor is used to run the carriage quicker and more stable.
3, Individual color cleaning minimizes the waste of the ink;
4, 3 way intelligent heater (pre/print/post) helps bring more vivid output

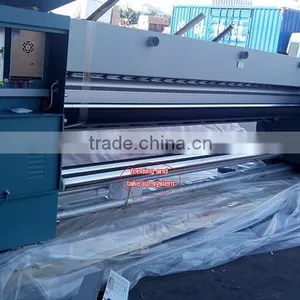

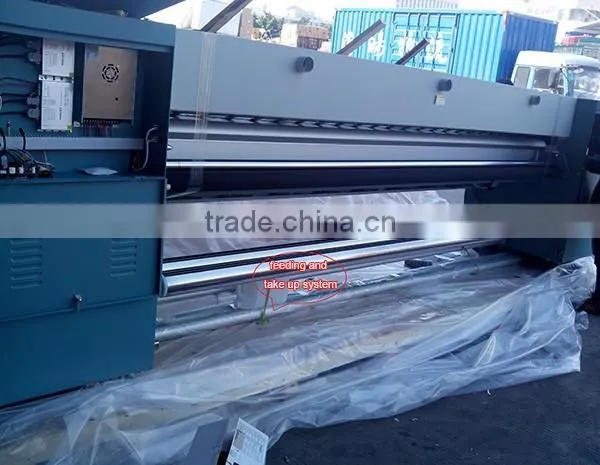

Pheaton UD 3208E solvent printer together with feeding and take up system
(282/sqm per hour ,2pass)printing speedy printer from Phaeton
Technical Data Of Pheaton UD-3208E solvent printer with 8pcs spt 510/35PL head
MODEL |
UD-3208E |
|
Printhead |
SPT510-35PL |
|
Number of printhead |
8 Heads |
|
Maximum print width |
3,200mm |
|
Print Speed (m2/h) |
Print mode |
Standard output(m2/h) |
D |
2 PASS 76 |
|
S |
3 PASS 51 |
|
Q |
4 PASS 34 |
|
HQ |
6 PASS 26 |
|
C |
- |
|
Ink |
Type: |
Solvent Ink / ECO Solvent Ink |
Color : |
Double 4 Color (C,M,Y,K) |
|
Capacity: |
1L or 5L per Main Tank of Each Color |
|
Ink Supply System |
Low Ink Dectector, Auto or Manual Ink Supply |
|
Media Width |
Maximum 3,300mm |
|
Media Type |
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
Auto Media Feeding System |
Equipped (Max. Media Weight 80kg) |
Auto Cleaning System |
Individual Positive Pressure Cleaning |
Pre-heating & Drying System |
Equipped |
Clamp |
Equipped |
Print Interface |
USB 2.0 |
Printhead Height |
2 to 6 mm from Media |
RIP Software |
Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
Input Power |
AC 220V, 50Hz/60Hz |
Machine Dimension / N.W |
L4, 786 x W930 x H1,350mm / 724KG |
Package Dimension / G.W |
L4, 980 x W1,140 x H1,640mm / 1064KG |

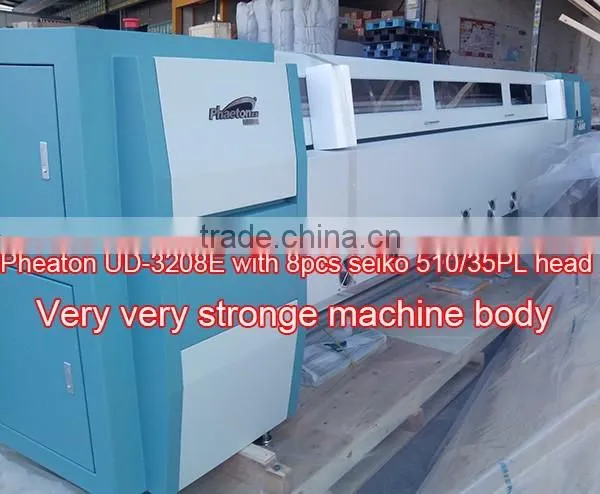

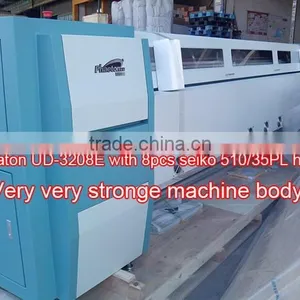

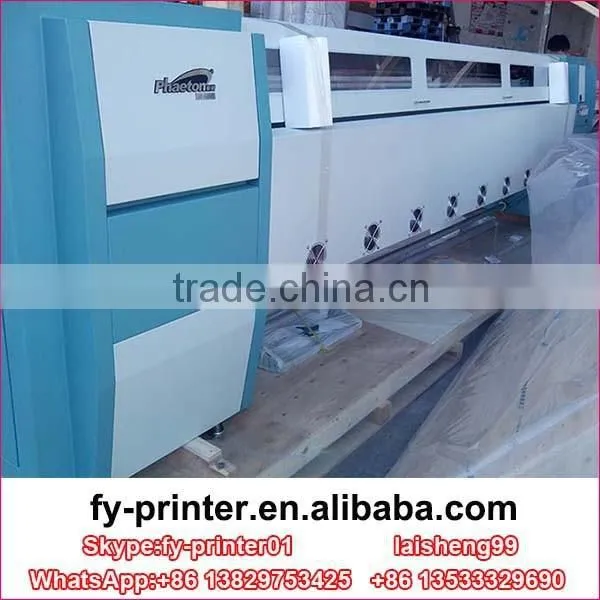

Pheaton UD-3208E solvent printer with 8pcs spt 510/35PL head in my warehouse
Export much container Pheaton UD-3208E solvent printer with 8pcs spt 510/35PL head to oversea
Welcome to visit the factory you will learn more
Original sk4 ,Galaxy dx5 ,UV ink
Our customers from
Africa :Nigeria ,Kenya ,Tanzania , Ghana ,Morocco ,Comoros , Ephiopia
South America: Peru , Chile ,Boliva ,Colombia ,Ecuador ,Brazil ,Venezuela,
North America :Mexico , Panama , Dominican Republic ,Guatemala Honduras
European :Poland ,France , Spain , Russia, Portugal .....
Asia :Fiji , Iraq , Afghanistan , Saudi Arabi ,UAE , the Philippines , Bangladesh Thainland ...
For more information ,please feel free to contact as following:
skype: fy-printer01 laisheng99
whatsApp:+86 13829753425 +86 13533329690
