Hot Sale!!!2015 Outdoor and Indoor Printer !3.2m Roll to Roll UV Printer With Dx5 Head

Name: Hot Sale!!!2015 Outdoor and Indoor Printer !3.2m Roll to Roll UV Printer With Dx5 Head
Brand: Galaxy
SKU: 128216035

US$ 5,000 - 9,000 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Screen Printer

Place of Origin:

Guangdong, China

Guangzhou FU-UNION Equipment Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

HuangPu(gunagzhou) or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Screen Printer

Place of Origin Guangdong, China

Brand Name Galaxy

Model Number UD-3212LDU

Usage Other, Large format advertisment printing

Automatic Grade Automatic

Voltage AC110v, 50HZ/60HZ

Gross Power 1800w

Dimensions(L*W*H) 4590mm*1100mm*940mm

Weight 547kg

Certification CE Cetification

After-sales Service Provided Engineers available to service machinery overseas

Our Services

1,Big Discount!Best quality and after-service.

2,Welcome to jion our working team ,you will find that we are the same channel !!

We will provide you

1, One year warranty 2, English RIP and Promon printingsoftware
3,Online trainning support 4, Big Discount and patient friendly service

Product Description

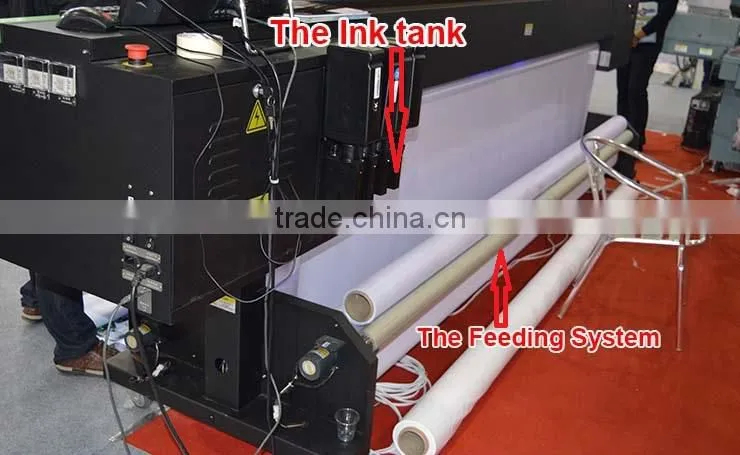

hot sale!!!2015 outdoor and indoor printer!3.2m roll to roll UV printer with dx5 head

Technical Data of hot sale!!!2015 outdoor and indoor printer !3.2m roll to roll UV printer with dx5 head

MODEL	UD-3212LDU
Printing Width	3,200mm
Material Width	3,300mm
Printhead	DX5
Number of Printhead	2
Print Speed (m2/h)	Print mode	Standard output(m2/h)
	D	3 PASS 22
	S	4 PASS 16
	Q	6 PASS 11
	HQ	8 PASS 8
	BL	12 PASS 11
ink	Type	UV Ink
	Color	Double(C Y M K)
	Capacity	1L Per Main Tank Of Each Color
	Ink supply system	Auto Ink Supply System
Media Type	Ceiling film,Vinyl,Polyester,flex,back-lit film,PS mBoard,KTboard,PVC foam,etc
Auto Media Feeding System	Equipped 40KG max Media Weight 40KG
Auto Cleaning System	Anti-clogged Flash Funtion & Capping system
Pre-heating &Drying system	Equipped
Clamp	Equipped
Interface	USB2.0
Printhead Height	2 to 10mm from media
RIP Software	Maintop,Ultraprint,Photoprint,Wasatch,Onyx
Input Power	AC 110,50HZ/60HZ
Operation Enviroment	Humidy:20% -80%(reconmmend:40% -60%) Tempreture:15℃ -35℃(reconmmend:20℃ -32℃)
Printer Dimension/Weight	L4,500 x W905 x H1,260mm / 304KG
Package Dimension/Weight	L4,590 x W1,100 x H940mm / 547KG
