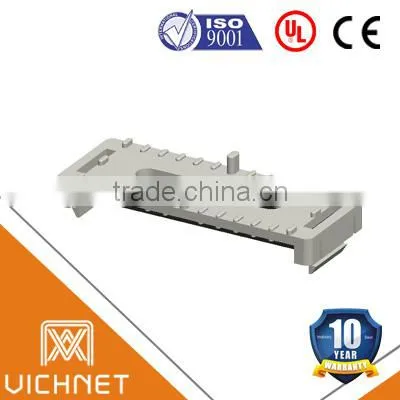

Help CenterWire Cable Tray -Cable Fixer ABS
Related Products
Specifications
Wire Cable Tray -Cable Fixer ABS2.ISO9001:2008/UL/CUL/CE,passed Rohs test
3.Have complete accessories
Vichnet China is located in the port city Ningbo. Vichnet wire mesh cable trays are exported to more than 100 countries. Vichnet is a leading manufacturer of wire mesh cable trays in China.
Our company have ISO9001:2008 and GMC. Wire mesh cable trays have UL, CUL, CE certificates and passed Rohs, loading capacity, welding strength etc. tests.
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Surface Finish:
Electro zinc plated wire mesh cable trays – for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated wire mesh cable trays - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized wire mesh cable trays – for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing wire mesh cable trays – for stainless steel use
Dimensions: (Available for customized)
Wire mesh cable trays dimensions are all internal size.
Wire mesh cable trays are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...
Widths: 50~1000mm.
Length: Maxiun 3000mm
Wire Diameter: 3.5~ 6.0mm
Description:
Apply to: Support trays on wall
Fit for: Diameter of wire from 3.50mm to 6.0mm,Width from 100mm to 900mm
Include: Unit x1(bolt and nut optional )
Feature: For all size of trays
2. ISO9001:2008/UL/CUL/CE, passed Rohs test
3. The accessories surface EZ>12u, HDG>60u
4. Sell to more than 100 countries
5. Have complete accessories
| Material | Surface finishing | Thickness of coating | Application environment |
| Q235 Steel | Electro zinc plating | >=12um | Indoor |
| Q235 Steel | Hot dip galvanized | >60um | Indoor, Outdoor |
| Q235 Steel | Powder coating | >60um | Indoor, need colors |
| SS304 | acid washing | N/A | Indoor, Outdoor |
| SS316 | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
| SS316L | acid washing | N/A | Indoor, Outdoor, high corrosion occasions. |
Welcome to choose our high quality wire mesh cable trays accessories! More information of our company please view our website ()!
