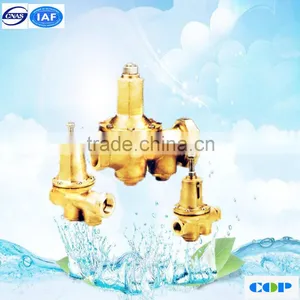

Help CenterDiaphragm Type Carbon Steel/WCB Water Pilot Valve
Related Products
-
High Pressure Ductile Iron IP67 Electric ValveUS$ 26.85 - 10,000MOQ: 1 Piece -
PN25 DN50~DN500 Water Level Control Floating Ball ValveUS$ 100 - 10,000MOQ: 1 Piece
-
Floating Valve Hydraulic Water Flow Control Valve Pn25 Water Level Hydraulic Remote Control Valve With Float BallUS$ 70 - 70MOQ: 1 Piece
-
Female Stainless Steel 316 Hydraulic Flow Control Needle Valve Hydraulic Remote Control Valve With Float BallUS$ 45.5 - 1,000MOQ: 1 Piece
-
Preset Water Level Hydraulic Control ValveUS$ 100 - 10,000MOQ: 1 Piece
Main valve comprises valve body, diaphragm, stem assembly, seat etc. The valve is separated by diaphragm into two chambers, up and down. Up chamber is control chamber, and down chamber is flow through chamber. The valve stem is driven by diaphragm up and down, and driven force comes from differential pressure which taking by two sides of diaphragm.
Pilot valves
Pressure reducing valves 200P(200PH)
The valve is a kind of ajustable direct acting pressure reducing valve. It is diaphragm type and hydraulically operated, and can be installed horizontally and vertically into pipeline for water supply, fire fighting etc, Its outlet pressure can be controlled to a relatively fixed value under certain flow range, The valve is used as pilot valve for our hydraulic control valves whenever it is required.
Pressure rating: PN10, PN16, PN25/Class 150
Size range: DN50mm - DN500mm
Our mission: Innovation, advanced technology, high efficiency, energy conservation, environmental protection, service society. Our goal: Provide efficient and excellent solution for every requirement. Create a beautiful environment where human live harmoniously with nature.
Jiangsu Comsmic Power Environmental Protection Tech Co., Ltd was established in 2007. Through constant innovation and creative technology, our company has developed into the supplier for products of whole water environment. Our company adopts the international technology to produce and provide kinds of products related to fluid system. We are specialized in manufacturing and supplying valves, gates, water supply equipments, mud scrapers and pump station with international standards(API, GB,DIN,JTS,,BS, ISO standard, etc). The valves generallly include butterfly valve series, gate valve series, check valve series, exhaust valves series, hydraulic valves, ball valve series, etc. Also, we can provide a set of solutions for sewage treatment and related products to customers.
