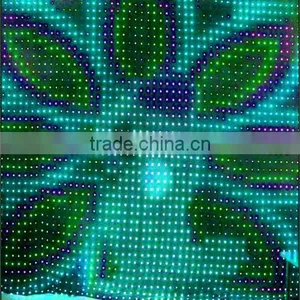

Stage flexible led video curtain led light
stage curtain,led video curtain light,led video curtain screen,led video display,video led curtain,
Product introduction:
LED Video Curtain is an LED animation curtain with lower resolution. But it still can show fantastic patterns. DesignCurtain uses super bright RGB leds.
There are two control systems available for led video curtain.
This is a computer based controller. It has 8 data outputs, each can drive 682 pixels, totally 5,456 pixels. With this controller, users can freely edit patterns/flash, text, logos etc.. in EasyPlayer software, and display any media files as you like.
Users can set up EasyPlayer to do real time display of flash, animation opened with any media player. To show any text, users can type one line or multiple lines of text, and edit the text font, size, color and movement direction and speed. If you are using a large led curtain, you can also divide the big curtain into parts, and each part displays different contents.
SD card controller:
With the SD card controller, it can operate with auto run mode, sound activation mode. Users can also control the animation cloth with DMX desks. At DMX 512 mode, users can select patterns in SD card, running speeds are also adjustable with DMX desk.
Preset patterns can be edited with free software in computer and stored in an SD card. Its controller can display up to 99 patterns, one controller can control up to 6 pcs 6x4m curtains. In case users need more than 6 curtains, controllers can be connected one to another in serial. all curtains can be configurated (with free software) to work as one larger curtains and show just one pattern on the whole curtain. Patterns can be activated via all operation modes. This curtain can also show texts or logoes (with bigger size or higher resolution).
The curtain is made from heavy duty cloth (SGS cerfitied). It is flame retardant, easy to maintain.
This LED animation starcloth is designed for indoor applications. It is really an indispensable tool for mobile DJs, stage, theatre, TV studio, theme events, night club, hotel banqueting halls, conference room, wedding etc.
Specifications |
|
Electrical |
|
Controller |
|
Input voltage: |
90-260V AC 50/60Hz |
Power box |
|
Input voltage: |
90-260V AC 50/60Hz |
Power supply: |
Switch power supply |
Curtain power: |
Max. 1200W |
Photometric |
|
Light source: |
2400 pcs ¢5 super bright RGB LEDs, higher density available |
LED lifetime: |
80,000 hours |
Effects |
|
Buillt-in animation programs selectable via DMX desk or at auto run mode |
|
Users can edit up to 99 patterns in computer, and put in SD card |
|
Auto run programs with speeds adjustable |
|
Can display text and logo |
|
|
|
Control |
|
Control mode: |
Universal DMX512; Auto run; Sound activation, Or computer based control for real time control. |
Control panel: |
LCD display |
DMX channel: |
6 channels |
DMX connector: |
3-pin XLR input/output connector |
Data output: |
CAT5 data output |
Physical | |
Curtain material: |
Flame retardant (SGS certified), heavy duty cloth |
Curtain size: |
6,000 x 4,000 mm |
Curtain net weight: |
28.5 kg |
Curtain color: |
Black |
Controller box size: |
235L x 179W x 59H mm |
Net weight: |
1.2 kg |
Controller color: |
Matt black |
Tell me what size you need? what is your request?!
