Help CenterWiegand26/34 125kHz/13.56MHz RFID Proximity Card Access Control Reader With Keypad
Related Products
-
Wiegand26/34 125kHz/13.56MHz Keypad RFID Access Control Smart Card ReaderNegotiableMOQ: 10 Pieces -
Wiegand26/34 125kHz/13.56MHz Keypad Access Control RFID Card ReaderNegotiableMOQ: 10 Pieces
-
Metal Waterproof Rfid Card Reader With WG26/RS485 OutputNegotiableMOQ: 10 Pieces
-
RFID Proximity EM 125Khz Long Range Card Reader With Wiegand 24/36 InterfaceNegotiableMOQ: 5 Pieces
-
RFID Proximity EM 125Khz Long Range Card Reader With Wiegand 24/36 InterfaceNegotiableMOQ: 5 Pieces
Specifications
keypad rfid readerWorking current: <100mA
EM/ID/MF card reader
WG26/34 optional
Brief introduction
This is a long range keypad electric card reader. With 125khz frequency, it can allow fast recognition and reaction. Its reading distance range 3-15 cm, allow users pass through conveniently. When the card approach the reader, the red light turn into green, after glinting to turn red color again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data.
Product Features
> WG26 ( WG34 optional )
> Size: 100×100×22(mm)
> DC9~16V
> Working current: ≤100mA
Product specifications
Model |
JYC-15E /JYC-15M |
Color |
Black / White |
Voltage |
DC9~16V |
Current |
≤100mA |
Ambient Temperature |
-25°C~75°C |
Reading Range |
3~15CM |
Output Format |
Wiegand26/34 |
Card Type |
EM-ID/MF card |
Comunication Distance |
WG≤100M |

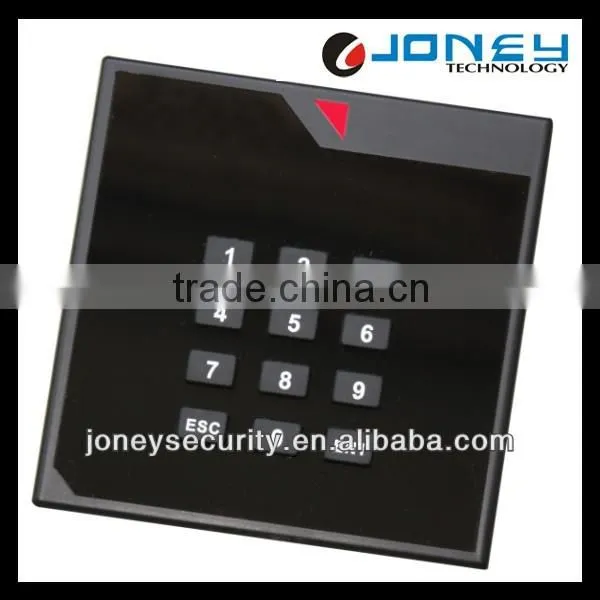

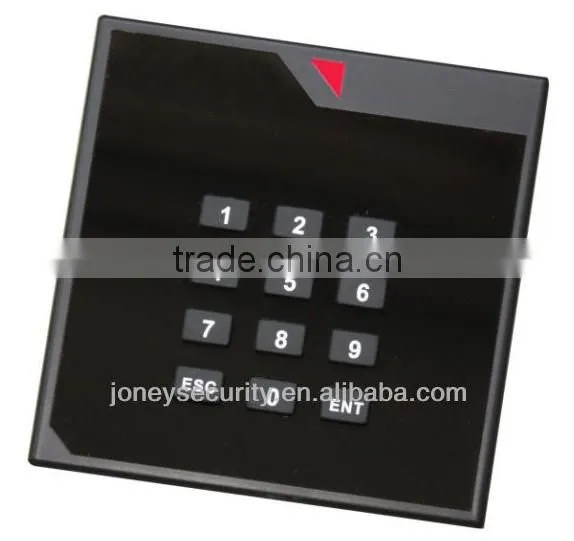

View of Product
Installation:
Using “+”type screw driver to loosen the screw between the panel and motherboard. And
then embed the motherboard to the side wall with the plastic plug and screws.
Wire Connection:
WG26/34 RS485 RS232
Red: DC 9V-16V Red: DC 9V-16V Red: DC 9V-16V
Black:GND Black:GND Black:GND
Green:D0 Green:4R+ Green:RX
White:D1 White: 4R- White:TX
Blue: LED
Yellow:BEEP
gray :Door Bell
purple: Door Bell
Notice!
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of
power supply
2. When external Power is used, make sure sharing the power with Controller Box or using the
same GND
3. The wire connects reader to controller, advise use 8 cores stranded twisted pair
cable(among them, three strands are spare, if no need reader show illegal card s by sound
and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better,
we suggest sectional area are 0.22 square millimeter at least. The length should not exceed
100meters.
