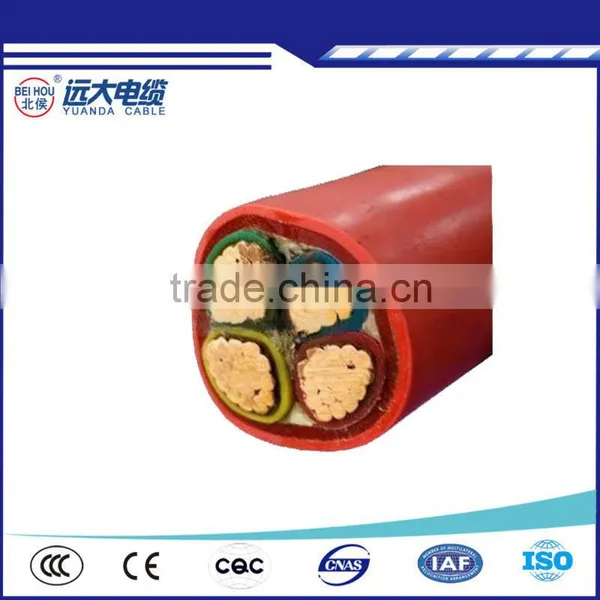

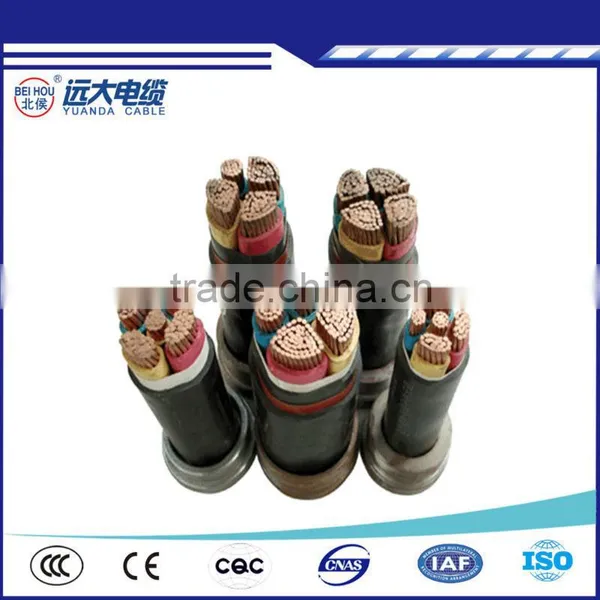

450/750V 25mm2 50mm2 70mm2 Rubber Sheathed Flexible Copper Conductor Welding Cable for Instrumental Use
Application:
This product is applicable to the appliances, electric power tools and various portable electric tools with the rated AC voltage up to and including 450/750V.
Application characteristics:
1. Rated voltage: 300/500V (YZ model), 450/750V(YZ model).
2. The permissible longtime working temperature of conductor should not beyond 65oC;
3. Cable of W type with the property of resistance to weather and oil, which is applicable to outdoors or places touching with greasy dirty. And ZR model has the property of flame retardant.
Type, name and usage:
2.1. Type: YQ,YQW
Name: Light type flexible rubber cable
Structure: Class 5 stranding copper conductor, Compound rubber insulator and sheath
Usage: Used for light portable electric equipment and tools
2.2. Type: YZ,YZW
Name: Middle type flexible rubber cable
Structure: Class 5 stranding copper conductor, Compound rubber insulator and sheath
Usage: Used for various portable electric equipment and tools.
2.3. Type: YC,YCW
Name: Heavy type flexible rubber cable
Structure: Class 5 stranding copper conductor, Compound rubber insulator and sheath
Usage: Used for various portable electric equipment which can bear larger mechanical force
Technical data:
|
Nominal Section (mm2) |
No. Diameter |
Insulation Inner Diameter (mm) |
Sheath Thickness (mm) |
Sheath Outer Diameter (mm) |
Copper Weight (kg/100m) |
Plastic Weight (kg/100m) |
Total Weight (Kg) |
2×0.75 |
24/0.20 |
2.45 |
0.9 |
6.7 |
1.34 |
5.3 |
6.64 |
2×1 |
32/0.20 |
2.6 |
1.0 |
7.2 |
1.79 |
5.8 |
7.6 |
2×1.5² |
30/0.25 |
3.1 |
1.2 |
8.6 |
2.625 |
8.5 |
11.2 |
2×2.5² |
49/0.25 |
3.7 |
1.3 |
10 |
4.29 |
11.6 |
15.9 |
2×4² |
56/0.30 |
4.4 |
1.4 |
11.6 |
7.06 |
14.5 |
21.5 |
2×6² |
84/0.30 |
5.0 |
1.6 |
13.2 |
10.6 |
18.8 |
29.5 |
3×1 |
32/0.20 |
2.6 |
1.4 |
8.6 |
2.69 |
8.5 |
11.2 |
3×1.5 |
30/0.25 |
3.1 |
1.6 |
10 |
3.94 |
11.6 |
15.5 |
3×2.5 |
49/0.25 |
3.7 |
1.8 |
11.7 |
6.43 |
15.5 |
22 |
3×4 |
56/0.30 |
4.4 |
1.9 |
13.5 |
10.6 |
19.4 |
30 |
3×6 |
84/0.30 |
5.0 |
2.1 |
15.2 |
15.9 |
23 |
39 |
3×10 |
84/0.40 |
6.6 |
3.3 |
21 |
28.22 |
49.5 |
77.7 |
3×16 |
126/0.40 |
7.4 |
3.5 |
23 |
42.33 |
54 |
96.3 |
3×1.5+1 |
|
3.1/2.6 |
1.8 |
11.2 |
|
|
16.5 |
1).Wrapped in rolls/coils/rings with plastic film for small diameter cables such as building wires.
2).Treated wooden/steel-wooden drums for big diameter cables.
3).Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other lengths could be supplied if agreements are reached by both side.
Packaging: in rolls/coils, wooden drums, steel drums or steel-wooden drums.
Shipping:
1. Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2. Large quantity will be shipped by sea.
1. We are factory and raw materials are served by our company.
2. OEM and ODM are available based on official legal authorization.
3. Strict quality control system.
4. Faster lead time than our competitors.
5. Excellent quality with reasonable price.
6. Strong technical support.
7. Providing solutions for your particular requirements.
8. Free samples are available with economic express fees.
Company introduction:
Established: 1996.
Factory area: 60,000 square meters, and 40,000 square meters for building area.
Fixed assets: USD 200 million.
No.of stuff : over 1,000.
Annual output: 100,000 tons.
Certificates: IEC, ISO 9001, ISO 14001, CCC, BV, JIS, UL, BS, OHSAS 18001, TUV, CE
CB and so on.
Workshops: rubber cable workshops, conductor workshop, XLPE cable workshop, electric cable workshop, special cable workshop, and workshops for telephone wire , TV lines and parvicostellae.
Zhengzhou Yuanda Cable Co. Ltd. located in the middle of China, and we can deliver qualified cable products in very short lead time.
