D1 DVR Stand Alone Network H.264 Standalone 16 Channel Dvr With CMS
US$ 90 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Joney Technology
Model Number:
DVR-6116S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
700TVL H.264 Security Equipment Weatherproof Bullet /Dome Camera 4ch/ 8ch Cctv Dvr KitNegotiableMOQ: 1 Piece -
Mini 1U 960H H 264 Network DVR 4 Channel CCTV DVRNegotiableMOQ: 1 Piece
-
Standalone CCTV Digital Video Recorder DVR 4 Channel DVRNegotiableMOQ: 1 Piece
-
Digital Video Recorder 960H 8 Channel CCTV DVR With Audio,alarm HDMI,Cloud P2PNegotiableMOQ: 1 Piece
-
Most Economic Rohs 8ch Cif Realtime Cctv Dvr, Dvr H.264 Cms Free SoftwareNegotiableMOQ: 5 Pieces
Place of Origin
Guangdong, China
Brand Name
Joney Technology
Model Number
DVR-6116S

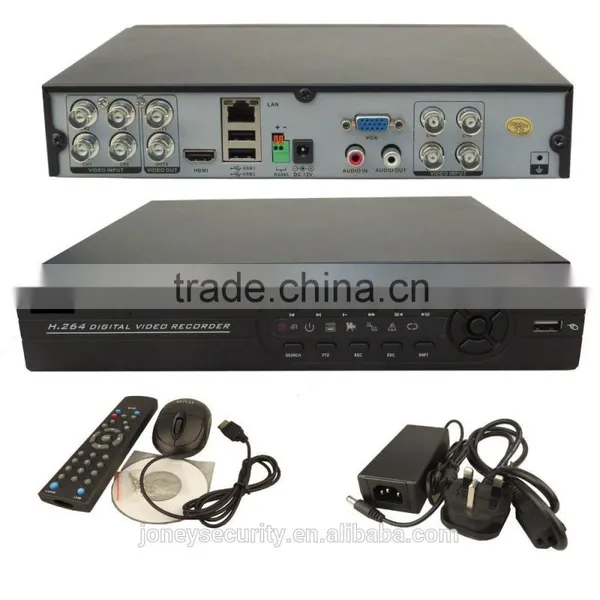

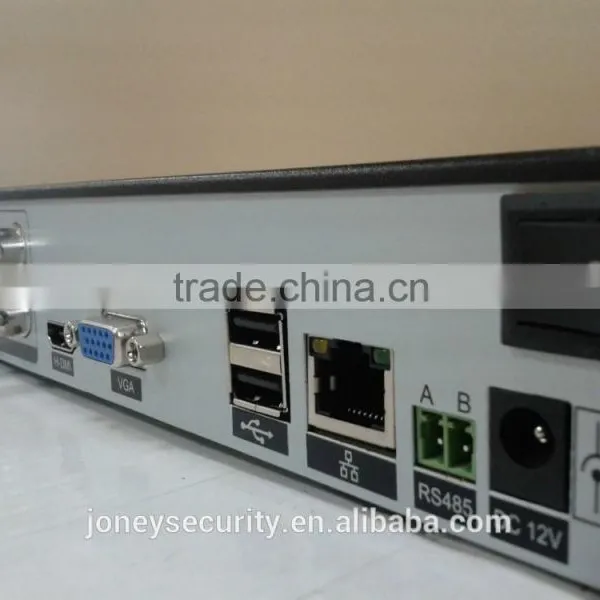

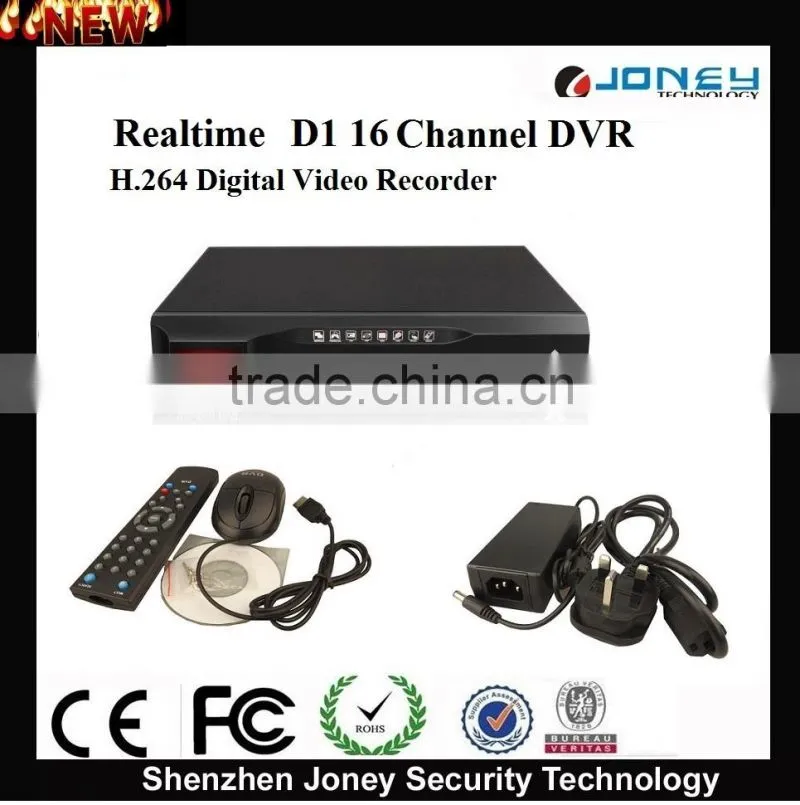

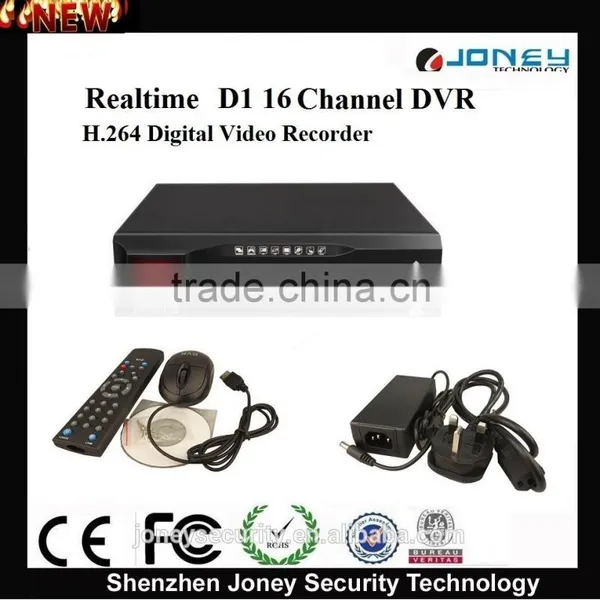

D1 DVR Stand alone Network h.264 standalone 16 channel dvr
Product Description
Video input 16 CH < BNC input >
Performance 16D1/ HVR(hybrid mode)
Video output 1CH BNC Output ,1CH VGA Output,1*HDMI(1080P)
Resolution D1/CIF
System Resource Sixfold operation: Live recording, Playback, Backup,
Remote access, PTZ control, Mobile monitoring
Control Mode Front panel, USB mouse, IR remote control, Network
Audio 6ch RCA input,1ch Output
Alarm 4ch Input,1ch Output.
Play back 16CH at the same time
PTZ 1*RS485. Support PELCO-D,PELCO-P Procotol
USB 2 * USB2.0
Mobile phone Support Window Mobile, Symbian, Android, iPhone
and Blackberry etc
HDD Capacity SATA Interface HDD*2 (each Max 3TB)
Network Interface 1 RJ-45 10/100Mbps Ethernet connector,3G,WIFI,P2P
Backup USB DISK,Network,USB DVD-RW
Languages Multilingual support
User Extend Design boot screen LOGO by youself
Power supply DC12V, 3A (Adapter Included)
Package 335*260*50MM/ 2.5KG (1U)
| System | ||||
| Main Processor | Embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | 16 channel, BNC | |||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |||
| Audio | ||||
| Input | 6 channel, RCA | |||
| Output | 1 channel, RCA | |||
| Two-way Talk | Reuse audio input/output channel 1 | |||
| Display | ||||
| Interface | 1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75) | |||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |||
| Display Split | 1/16 | |||
| Privacy Masking | 16 rectangular zones (each camera) | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Video/Audio Compression | H.264 / G.711 | |||
| Resolution | D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | |||
| Extra Stream | CIF(1~25/30fps) | |||
| Bit Rate | 48~4096Kb/s | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection& Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 4 channel | |||
| Relay Output | 1 channel | |||
| Playback & Backup | ||||
| Sync Playback | 1/16 | |||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device / Network | |||
| Network | ||||
| Ethernet | RJ-45 port (10/100M) | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |||
| Max. User Access | 20 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Storage | ||||
| Internal HDD | 2 SATA port, up to 6TB | |||
| Auxiliary Interface | ||||
| USB Interface | 2 ports (1 Rear), USB2.0 | |||
| RS485 | PTZ control | |||
| General | ||||
| Power Supply | DC12V/2A | |||
| Power Consumption | 10W(without HDD) | |||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |||
| Dimension(W×D×H) | 335*260*50MM/ 2.5KG (1U) | |||
| Weight | 5.0KG(without HDD) | |||
