Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
Maximum rated operation temperature of conductor:90℃
Maximum short circuit temperature of conductor(duration 5sec.):250℃
It should be pre-warmed before installation when th e ambient temper ature is below 0℃
Minimum bending radius o f cable for installation(D is the overall diameter of cable):
For non-armoured single core cable:20D
For non-armoured multi-core cable:15D
For armoured s ingle core cable:15D
For armoured multi-core cable:12D

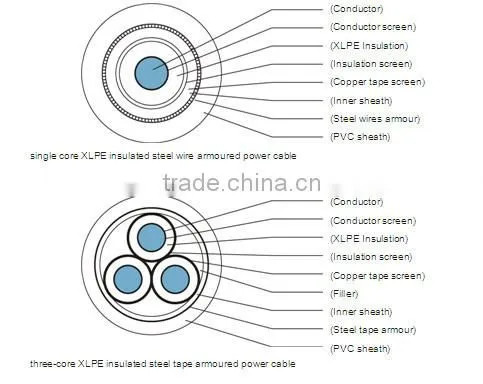

Sketches of product construction
Type Description and Installation location
Rated voltage 12/20 26/35kV XLPE insulated power cable
Type |
Description |
Installation location |
||
Copper |
Aluminium |
|||
YJV |
YJLV |
XLPE insulated PVC |
Aerial indoor tunnel |
|
YJY |
YJLY |
XLPE insulated PE sheathed |
|
|
YJV22 |
YJLV22 |
XLPE insulated steel tape |
Indoor tunnel trench |
|
YJV23 |
YJLV23 |
XLPE insulated steel tape |
|
|
YJV32 |
YJLV32 |
XLPE insulated fine steel-wire armoured and PVC |
Large difference shaft |
|
YJV32 |
YJLV33 |
XLPE insulated fine steel-wire armoured and |
|
|
YJV42 |
YJLV42 |
XLPE insulated thick steel-wire armoured and |
The shaft for bearing large |
|
YJV43 |
YJLV43 |
XLPE insulated thick steel-wire armoured and |
||
