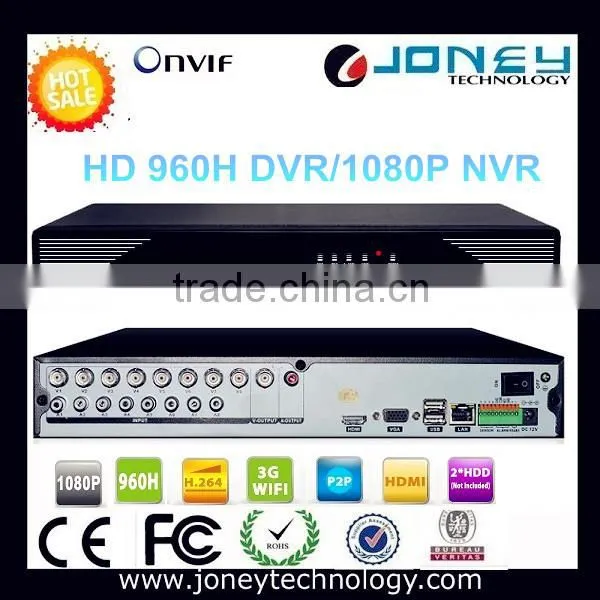

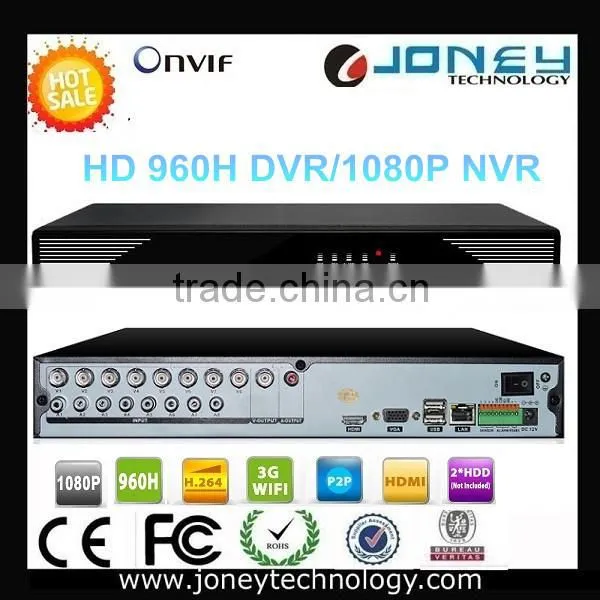

Video Surveillance Digital Video Recorder 960H 1080P H.264 Hybrid Dvr 16CH HVR

Name: Video Surveillance Digital Video Recorder 960H 1080P H.264 Hybrid Dvr 16CH HVR
Brand: Joney Technology
SKU: 128354613

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Joney Technology

Model Number:

HVR-8216

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Joney Technology

Model Number HVR-8216

Specifications

1.8ch 960H+ 8ch 1080p ip cam 16ch HVR
2.H.264 VGA HDMI
3.PTZ control,2*USB port.
4.8CH Audio&Alarm input
5.1U 2.5KG

Product Description

Network DVR NVR HVR

HVR-8216 H.264 HVR Hybrid DVR/NVR/HVR

Features:Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR HVR

> 8CH 960H+8CH 1080P

>Recording resolution and channel : 8CH 960H+8CH 1080P

> H.264

> Display Image Resolution 1080P 30FPS

> Audio Input: 8ch

> Alarm Input :4ch

>Support Network:P2P 3G WIFI Cloud

> Operating system Embedded LINUX OS

> PTZ control,with VGA,HDMI.,2*USB port.

> Support 2pcs SATA HDD(Max 6TB)

> DC +12V /3A

> Operation temperature 0℃-+55℃

> 1U

> 2.5KG GS(not include HDD)

Specification: Hybrid H.264 HVR Hybrid DVR H.264 HVR Hybrid DVR HVR Hybrid DVR HVR

Model	HVR-8216
Video Input	8CH 960H+8CH 1080P
Video Output	1HDMI, 1TV, BNC(1.0V p-p, 75Ω), 1 VGA
Video Standard	PAL / NTSC
Audio Input	8CH, RCA(200-2800mV,30KΩ)
Audio Output	1CH, RCA(200-3000mV,5KΩ)
Display split	1/4/8/12
Resolution	19201080, 1280720,1440900, 12801024, 1024768, 800600
Audio compression	H.264/G711
Image resolution	960H(960x576,960x480),D1(704 X 576/704 X 480), HD1(704 X 288/704 X 240),CIF(352 X 288/352 X 240)
Main stream	CH1~8 960H(1~25/302FPS) , CH9-12 1080P
Sub stream	CIF(1~25FPS),QCIF(1~25FPS)
Alarm input	8CH
Alarm output	1CH
Playback channel	1/4/8
Playback speed	D1 200/240FPS 960H 100/120FPS
Search mode	Time/Date, Alarm, Motion detection Exact search(accurate to second)
Playback function	Play, Pause, Stop, Fast play, Slow play, full screen, backup
Back mode	Flash drive / USB HDD / Network download
Interface	RJ-45 port(10/100M)
Network functions	TCP/IP, UDP, DHCP,DNS,IPFilter,PPPoE,DDNS, FTP,Email,UPNP,Alarm Server,ARSP,P2P,3G,WIFI.
Interface	2 SATA ports, each port support max 3TB
USB Ports	2 USB Ports: 1 for mouse control, 1 for backup
RS485	PTZ Control
Dimension	1U
Weight	2.5KG
