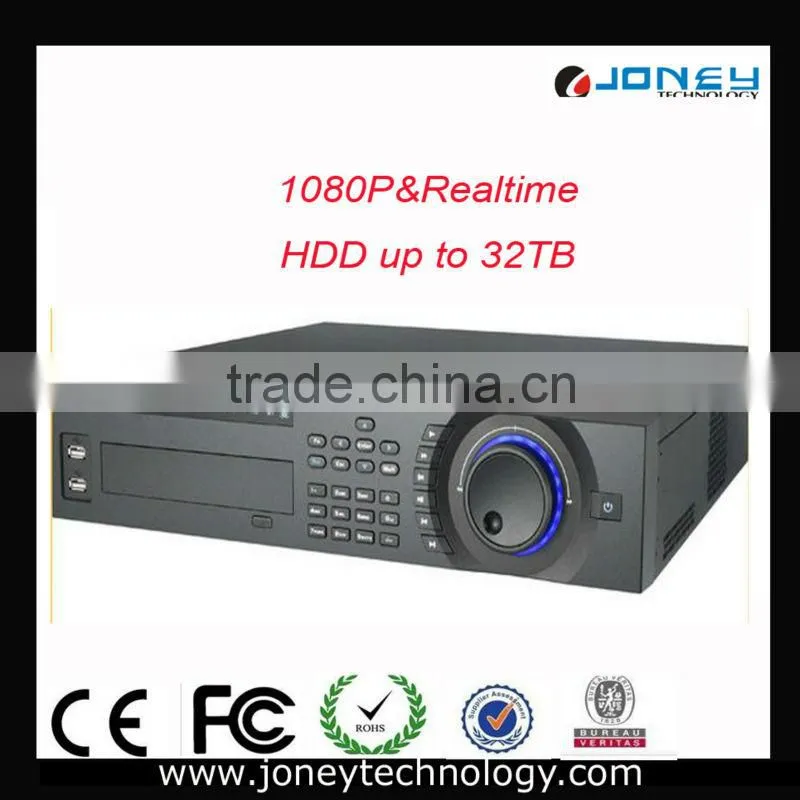

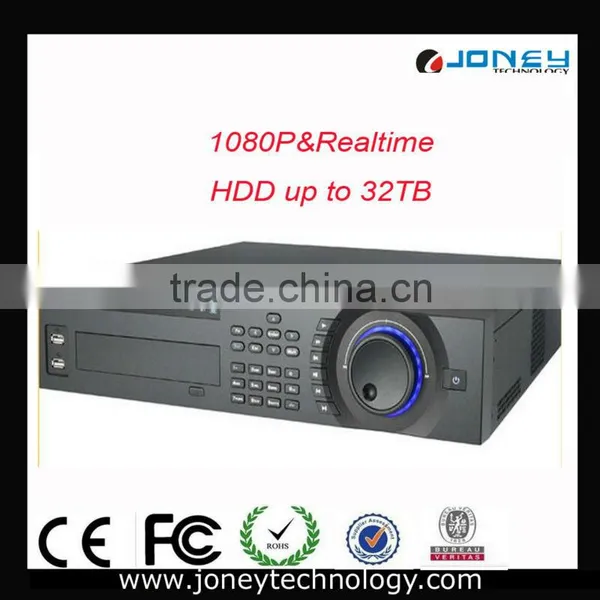

Help CenterHigh Quality 4CH 1080P HD SDI DVR+4CH 1080P NVR 2 in 1, With HDD up to 32TB
Related Products
-
4CH 1080P Live HD SDI DVR With H.264 Dual Stream Video CompressionUS$ 490 - 500MOQ: 1 Piece -
8CH 1080P Realtime HD SDI DVR, With HDD Up to 12TBUS$ 210 - 220MOQ: 1 Piece
-
4CH 1080P Realtime HD SDI DVR, With HDD Up to 12TBUS$ 175 - 185MOQ: 1 Piece
-
8CH 720P Realtime HD CVI DVR, With HDD up to 3TBUS$ 110 - 115MOQ: 1 Piece
-
4CH 720P Realtime HD CVI DVR, With 1080P ResolutionUS$ 75 - 80MOQ: 1 Piece
Specifications
4ch 1080p hd sdi dvralso 4ch 1080p nvr
HDD up to 32TB
8 ch 1080p realtime
High Quality 4CH 1080P HD-SDI DVR+4CH 1080P NVR 2 in 1, with HDD up to 32TB
Features
4ch HD-SDI video & 4ch IP camera inputs
4/1ch audio in/out, 1/1ch Mic in/out
HD-SDI: 4ch@1080p
IPC: 4ch@1080p/720p/D1
HDMI, VGA output up to 1080p, 1 TV
4/6ch alarm in/out, RS485
4ch sync realtime playback, 4 USB
DVR information
Model No. |
DVR0404HD-U |
Video Compression |
H.264 |
OS |
Embedded LINUX |
System Resources |
Multiplex operations: Multiple-channel record, multiple-channel playback and network operation simultaneously |
Interface |
User-friendly graphical user interface |
Input Devices |
Front panel, USB mouse, remote controller |
Video Input |
4ch HD-SDI video & 4ch IP camera inputs |
Monitor Output |
1-CH Composite Video Output 1.0Vp-p/75Ω, NTSC/PAL |
HDMI Output |
1-CH HDMI, Adjustable resolution: 1920×1080, 1440×900, 1360×768, 1280×720, 1280×1024, 1024×768 |
VGA Output |
1-CH VGA, Adjustable resolution: 1920×1080, 1440×900, 1360×768, 1280×720, 1280×1024, 1024×768 |
Video Standard |
PAL(625line, 50f/s), NTSC(525line, 60f/s) |
Record Speed |
Real-time: PAL 1fps to 25fps per channel and NTSC 1fps to 30fps per channel |
Video Partition |
1/4/8/9 windows |
Recording Mode |
Manual recording, always recording, motion detection recording, schedule recording |
Resolution |
D1:PAL 704*576(200fps) / D1:NTSC 704*480(240fps) |
Playback Resolution |
4ch real-time simultaneous playback, max100/120 fps@1080P |
Audio Compression |
ADPCM, 16Kbps |
Audio Input |
1-CH 200-2000mv5kΩ, RCA |
Audio Output |
1-CH 200-3000mv1kΩ, RCA |
Network |
RJ45 10M/100M/1000M self-adaptable Ethernet port, support TCP, FTP, PPPOE, 3G, Web browser, CMS, NetViewer |
Mobile OS |
iPhone, Android, Blackberry, Windows mobile, Symbian |
Email for alarm |
Support SMTP server, support SSL |
DDNS |
Build in free privacy DDNS, DYNDNS, 3322, perfect, myq-see and no-ip |
Hard Disk |
Support 8 SATA, max4 TB HDD |
USB Interface |
2 USB 2.0 ports |
Operating Temperature |
+5°~ +50 |
Storage Temperature |
-20°~ +70° |
Humidity |
30 ~95% |
Pictures of product
