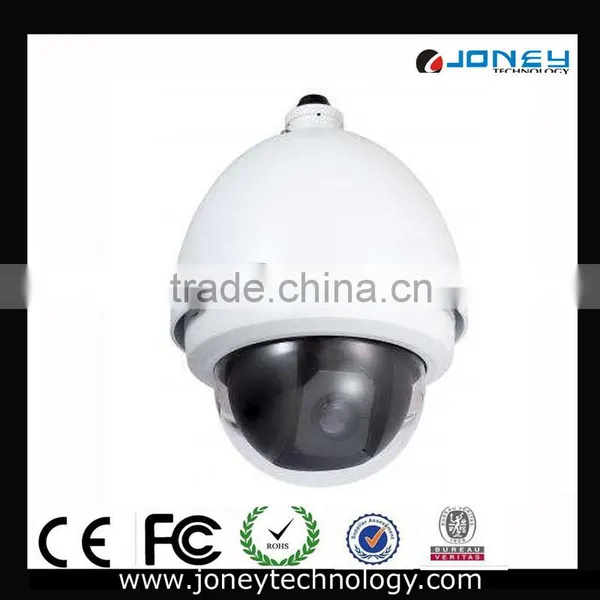

20x Zoom 2 Megapixel HD-SDI Ptz Camera Security Product

Name: 20x Zoom 2 Megapixel HD-SDI Ptz Camera Security Product
Brand: JONEY
SKU: 128355501

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

JONEY

Model Number:

HD-SD6582A-HS

Shenzhen Joney Security Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name JONEY

Model Number HD-SD6582A-HS

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, 1/3" Exmor CMOS

Technology Other, NetWork, Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

Specifications

HD-SDI Dome Camera
--6 inch size
--20x zoom lens
--2 megapixel cmos
--IP67 water resistant

Product Description

20x 2 megapixel HD-SDI ptz camera security product

Model	HD-SD6582-HS	HD-SD6582A-HS
Camera
Image Sensor	1/3” Exmor CMOS
Effective Pixels	1944(H) x 1092(V), 2 Megapixels
Electronic Shutter Speed	1/1 ~ 1/10,000s	1/1 ~ 1/30,000s
Min. Illumination	Color: 0.5 lux/F1.6 B/W: 0.095 lux/F1.6	Color: 0.05Lux/F1.6 B/W: 0.005Lux/F1.6
S/N Ratio	More than 50dB
Video Output	BNC(1.0Vp-p/75Ω), PAL / NTSC
Resolution	1080p(25/30fps), 720p(25/30/50/60fps)	1080p(25/30fps), 720p(25/30fps)
HD-SDI Video Output	1ch HD-SDI high -definition video (SMPTE 292M standard)
Camera Features
Day/Night	Auto(ICR) / Color / B/W
Digital Zoom	12x	16x
Lens
Focal Length	4.7mm ~ 94.0mm(20x Optical zoom)
Focus Control	Auto / Manual
Angle of View	H: 58.2° ~ 2.9°	H: 55.4°~ 2.9°
Close Focus Distance	10mm ~ 800mm	10mm ~ 1000mm
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed	Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~250°/s
Preset Speed	Pan: 400°/s; Tilt: 300°/s
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Power up Action	Auto restore to previous PTZ and lens status after power failure
Auxiliary Interface
RS485	1 port
Alarm	7/2 channel In/Out
General
Power Supply	AC 24V/3A (±10%)
Power Consumption	12W, 25W(Heater on)
Working Environment	-40ºC ~ 60ºC / Less than 90% RH
Dimensions	Φ222(mm) x 322(mm)
Weight	5.0kg
