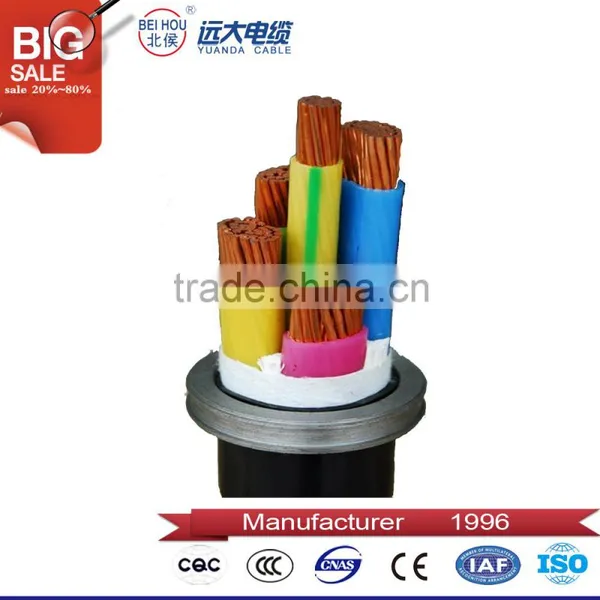

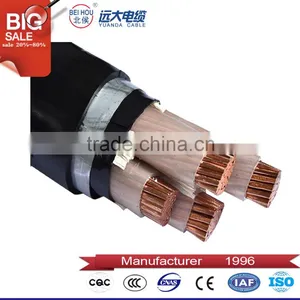

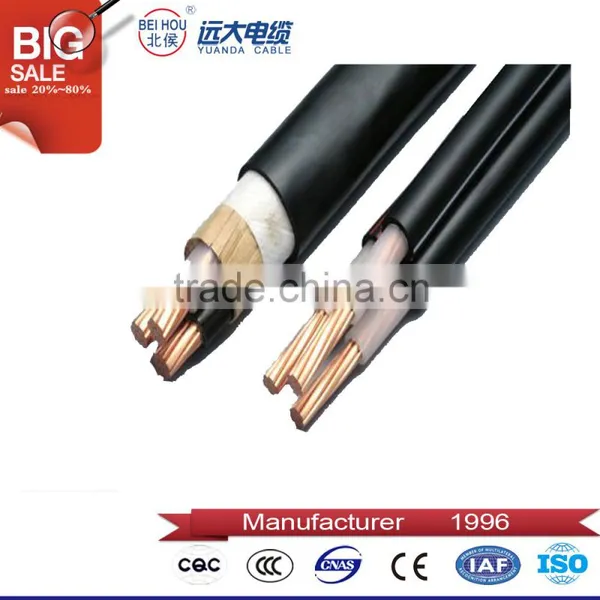

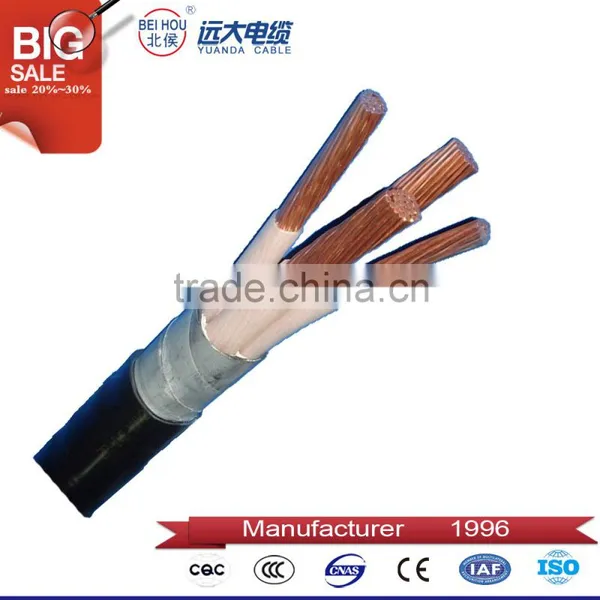

Help Center5 Copper Core XLPE Insulated and Sheathed Fire-retarding Power Cable
Related Products
-
5 Core Copper Conductor XLPE Insulated Electrical Cable for Rated Voltage 0.6/1kvUS$ 5 - 15MOQ: 1000 Meters -
Copper XLPE Steel Wires Armoured Cables 25mm 50mm 120mm 4 Core Armoured Power CableUS$ 0.6 - 2.57MOQ: 400 Meters
-
Factory Price 4 Core Underground Steel Tape Armoured SWA Power Cables 150mm 120mm 95mm in Different SizeUS$ 2.21 - 22.32MOQ: 500 Meters
-
3 Core Xlpe Insulated Cable 185mm Xlpe Insulated Electrical Cable With Copper ConductorUS$ 1 - 15MOQ: 500 Meters
-
4 Core Xlpe Fire-retardant Armored Power Cable With 5x4mm2US$ 1 - 15MOQ: 500 Meters
Application
The cables are designed for fixed installation
of power transmission and distribution equipments and
power equipments where fire retardation is requested with rated voltage 0.6/1KV and below.
Manufacturing standards
ASTM ICEA BS DIN IEC GB AS/NZS etc.
Operating features
AC Rated voltage Uo/U 0.6/1KV.
Testing flame temperature: Category A is 950℃-1000℃
Category B is 750℃-800℃
Permissive continuous conductor working temperature of PVC, PE insulated cable is not more than 70℃ , permissive
continuous conductor working temperature XLPE is not more than 90℃ .
The lowest ambient temperature of cable installation is 0℃
Min.bending radius of cable installation is:
Non-armoured cable 10D mm;
Armoured cable 12D mm.
In the formula: D-actual overall diameter of cable, mm.
Descriptive method of cable and sketches of product construction
Note: Y, YJ and V mean PE, XLPE and PVC respectively. We can manufacture category A or B cable upon requests.
1. Construction of insulated core
2. Diagram of cable construction
1 Insulated core
2 Flame resistance PVC filler
3 Lapping layer
4 Outer sheath (Outer sheath without armouring is flame resistance PVC sheath,outer sheath with armouring include flame resistance PVC inner layer,steel tape armour and flame resistance PVC sheath)
5 Flame resistance PP tape filler
Type and description
TYPE |
Description |
Application |
NHA(B)-VV |
Copper core PVC insulated and sheathed |
For fixed installation laying indoors, |
NHA(B)-VV22 |
Copper core PVC insulated and sheathed |
For fixed installation laying indoors, |
NHA(B)-YJV |
Copper core XLPE insulated and PVC sheathed |
For fixed installation laying indoors, |
NHA(B)-YJV22 |
Copper core XLPE insulated and PVC sheathed |
For fixed installation laying indoors, |
NHA(B)-YV |
Copper core PE insulated and PVC sheathed |
For fixed installation laying indoors, |
NHA(B)-YV22 |
Copper core PE insulated and PVC sheathed |
For fixed installation laying indoors, |
Specification of cable
Type |
Core number |
Nom. Cross section |
NHA(B)-VV |
1 |
2.5~300 |
2.3 |
2.5~185 |
|
3+1. 4 . 3+2 .5 |
4~185 |
Packaging&Shipping:
Packaging&Delivery:
In two weeks,the goods will be prepared.
Shipping:
Orders shipped 10% faster than competitors
1.Sample will be mailed by DHL, UPS, FEDEX, TNT, EMS etc for your selection (Freight Charge normally will be on buyer’s account).
2.The big quantity will ship by sea.
Factory Pictures:
Certificate:
Certificate: ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc.
FAQ
1.Are you a manufacturer or trading company?
We are a manufacturer.
2. What's your payment terms?
T/T ,L/C ,D/P ,D/A ,OA .
3. What's your delivery time?
Usually we will arrange the shipment in 7 -15 days.
4. How about the validity of the products?
Gunranteed 3 years.
5. What documents you provide?
Usually, we provide Commerical Invoice, Packing List, Bill of loading, COA , Health certificate and Origin certificate. If your markets have any special requirements, let us know.
6. What is loading port?
Usually is Shanghai,Qingdao or Tianjin.
We products are 2% cheaper than the competitor
Send the inquire and get the quotation,Save time,Save money
