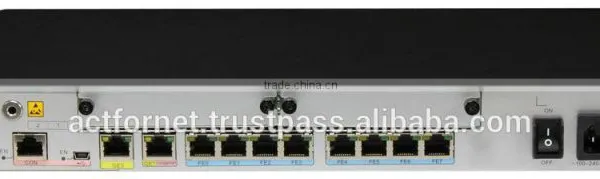

Huawei AR1220F Branch Firewall Router

Huawei AR1220F Branch Firewall Router thumbnail-1
Huawei AR1220F Branch Firewall Router photo-1
US$ 637 - 708 MOQ: 1 set
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Other, Wire and Wireless
Application:
Enterprise
Contact Supplier Request Quote Chat Now
ActForNet Technologies Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Other, Wire and Wireless
Application Enterprise
Function Firewall, QoS, VPN
LAN Ports Other, 9
WAN Ports 1
Brand Name HUAWEI
Model Number AR1220F
Vendor Product Description Huawei Advantages
HUAWEI AR1220F 1GE WAN,1GE COMBO,8FE LAN,2 USB,2 SIC
CISCO CISCO1941 Cisco 1941 w/2 GE,2 EHWIC slots,256MB CF,512MB DRAM,IP Base Forwarding performance:1Mpps vs. 330Kpps
Integrated 8 FE LAN
hot-swappable interface card



Vendor Product Description Huawei Advantages
JUNIPER SRX210 SRX210 Services Gateway
HUAWEI AR1220 2GE WAN, 8FE LAN, 2 USB, 2 SIC Forwarding performance:450Kpps vs. 150Kpps
IO slots: 2 vs. 1



AR1220F

1. 2 slots, supports voice and abundant wired interfaces, easy scalability
2. Fixed 2*1000M and 8*100M ports
3. Mainly used in small branch (50 users)

Vendor Product Description Huawei Advantages
HUAWEI AR1220F 1GE WAN,1GE COMBO,8FE LAN,2 USB,2 SIC
CISCO CISCO1941 Cisco 1941 w/2 GE,2 EHWIC slots,256MB CF,512MB DRAM,IP Base Forwarding performance:1Mpps vs. 330Kpps
Integrated 8 FE LAN
hot-swappable interface card



Item AR1220 AR1220V AR1220W AR1220VW AR1220-D AR1220F
Hardware
WAN speed with services 200 Mbps 200 Mbps 200 Mbps 200 Mbps 200 Mbps 400Mbps
Firewall performance (large packet) 900 Mbps 900 Mbps 900 Mbps 900 Mbps 900 Mbps 1200Mbps
Device switching capacity 8 Gbps 8 Gbps 8 Gbps 8 Gbps 8 Gbps 8Gbps
Slot switching bandwidth SIC & WSIC slots 2 Gbps
Fixed ports 2 x GE + 8 x FE 2 x GE + 8 x FE 2 x GE + 8 x FE 2 x GE + 8 x FE 2 x GE + 8 x FE 2*GE(1*Combo) + 8 x FE
SIC slots 2 2 2 2 2 2
WSIC slots (default/max) 0/1 0/1 0/1 0/1 0/1 0/1
DSP slots - 32 channels supported by default - 32 channels supported by default - -
WiFi - - 802.11 b/g/n 802.11 b/g/n - -
USB 2.0 ports 2 2 2 2 2 2
Mini-USB ports 1 1 1 1 1 1
Serial auxiliary/ console port 1 1 1 1 1 1
Memory 512 MB 512 MB 512 MB 512 MB 512 MB 512 MB
Flash 256 MB 256 MB 256 MB 256 MB 256 MB 512MB
Max. power 54 W 54 W 54 W 54 W 54 W 54W
PoE power - External 100 W External 100 W External 100 W - -
AC power 100 V-240 V 100 V-240 V 100 V-240 V 100 V-240 V - 100~240 V
Frequency 50 Hz/60 Hz 50 Hz/60 Hz 50 Hz/60 Hz 50 Hz/60 Hz - 50 /60 Hz
DC power - - - - -42 V to -53 V -
Dimensions (height x width x depth) 44.5 mm x 390 mm x 220 mm 44.5 mm x 390 mm x 220 mm 44.5 mm x 390 mm x 220 mm 44.5 mm x 390 mm x 220 mm 44.5 mm x 390 mm x 220 mm 44.5mm x 390mm x 220mm
Weight 2.9 KG (without interface cards) 2.9 KG (without interface cards) 2.9 KG (without interface cards) 2.9 KG (without interface cards) 2.9 KG (without interface cards) 2.9 KG (without interface cards)
Ambient temperature 0° C to 45° C 0° C to 45° C 0° C to 45° C 0° C to 45° C 0° C to 45° C 0° C to 45° C
Relative humidity 5-95% (non-condensing) 5-95% (non-condensing) 5-95% (non-condensing) 5-95% (non-condensing) 5-95% (non-condensing) 5-95% (non-condensing)
Software
Basic feature DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, Sub interface management
Voice RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, SBC, H.323 gatekeeper
WLAN(AP) AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), WLAN user management(Only WLAN models support WLAN AP features)
WLAN(AC) AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n),WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
3G CDMA 2000 EV-DO Rev A, WCDMA, individual 3G uplink/backup link
LTE FDD LTE: Uplink: 50Mbit/s Downlink: 100Mbit/s
LAN IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP
IPv4 unicast routing Routing policy, static route, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
Multicast IGMP V1/V2/V3, PIM SM, PIM DM, MSDP
MPLS LDP, MPLS L3 VPN, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR
VPN IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN, Smart VPN
QoS DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, Smart Application Control (SAC)
Security ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing
Management and maintenance Upgrade management, device management, web-based GUI, GTL, SNMP (v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI

**Note: The maximum number of slots includes the number of combined slots.
