Huawei RH2285H v2 12HD Configuration 3

Huawei RH2285H v2 12HD Configuration 3 thumbnail-1
Huawei RH2285H v2 12HD Configuration 3 photo-1
US$ 3,371 - 3,371 MOQ: 3 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Rack
Max Memory Capacity:
Other, ≥ 64GB
Contact Supplier Request Quote Chat Now
ActForNet Technologies Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Rack
Max Memory Capacity Other, ≥ 64GB
Max Processors 2
Processor Main Frequency 3.3GHz
Processor Type Intel Xeon
Brand Name Huawei
Model Number BC1M37SRSF
Place of Origin Guangdong, China

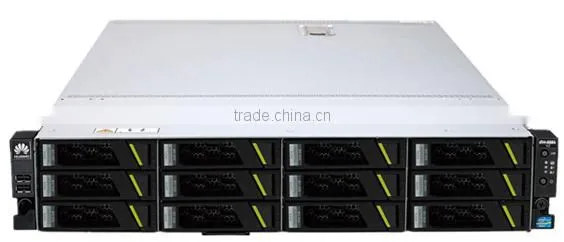

RH2285H v2 12HD Configuration 3

Part Information:
Part Number:02310YRJ
Model:BC1M37SRSF
Description: 12HD Configuration 3(1*E5-2450 v2 CPU,1*16GB_1600MHz Mem,4*GE,SR320BC(1GB Cache)+Supercap,2*750W Platinum PS,Rail)


Competitive products:

HP DL380e Gen8;IBM X3630 M3;Dell R520

Introduction

The Tecal RH2285H V2 rack server (RH2285H V2) is a next-generation 2U 2-socket rack server. Featuring two Intel® Xeon® E5-2400/ E5-2400v2 series processors, the RH2285H V2 provides large storage capacity, flexible scalability, and superb cost-effectiveness, making it an ideal hardware platform for big data and distributed storage applications.

Features

Superb performance enriches service applications

  • Supports two Intel® Xeon® E5-2400/ E5-2400v2 series processors. These 4-core, 6-core, 8-core,and 10-core processors are configured based on service requirements, providing flexible computing resources.
  • Supports 12 DDR3 DIMMs, providing a maximum memory capacity of 384 GB.

Flexible scalability supports application acceleration

  • Provides 6 PCIe slots, facilitating high-availability I/O expansion.
  • Supports HUAWEI ES series high-performance PCIe SSD cards and intelligent network interface cards (iNICs), which improve storage and network I/O performance and acceleration applications.
  • Supports high-performance GPUs, improving graphics processing and floating-point computing performances.

Large capacity and high reliability enhance application stability

  • Supports eight 2.5-inch SAS/SATA HDDs or SSDs. Alternatively, twelve 3.5-inch SAS/SATA HDDs and two 2.5-inch SAS/SATA HDDs or SSDs, or twenty-six 2.5-inch SAS/SATA HDDs or SSDs can be installed. Hard disks are hot-swappable. This meets servers’ large application storage capacity requirements.
  • Uses industry-leading RAID technology, supporting RAID 0, 1, 10, 5, 50, 6 and 60, and provides a 512 MB or 1 GB cache; supports an optional BBU and supercapacitor, RAID state migration, RAID configuration memory, self-diagnosis, and remote Web setting to ensure data reliability.
  • Provides multi-level security mechanisms such as the Trusted Platform Module (TPM) and embedded black box function to ensure system reliability.

Elegant design improves IT system efficiency and reduces power consumption

  • Supports hot-swappable redundant PSUs and fan modules and online replacement.
  • Provides an embedded USB flash drive for quick OS startup and embedded virtualization software.
  • Provides WebUIs for managing user access, supporting KVM over IP, virtual media, remote firmware upgrades, startup, shutdown, and reset.
  • Uses 80 Plus Platinum PSUs, which provide a power efficiency of 94% under a 50% load, thus reducing power loss and increasing power utilization.
  • Monitors system power consumption in real-time, implementing comprehensive energy saving policies. Power capping and power control functions control power consumption. Optimized thermal design and highly efficient fan modules are used to reduce power consumption for cooling. Hard disks are not powered on at the same time, and the processor frequency is degraded, reducing the startup power consumption. Partition-based, intelligent fan speed adjustment and intelligent CPU.
  • frequency adjustment are employed. These combine to decrease power consumption to form a fully green solution.



Specifications

Item Tecal RH2285H V2
Form factor 2U rack server
Number of processors 1 or 2
Processor Intel® Xeon® E5-2400/ E5-2400v2 series
Memory 12 DDR3 RDIMMs/LRDIMMs, up to 384 GB
Internal storage Options:
8 x 2.5" SAS/SATA HDDs or SSDs
12 x 3.5" SAS/SATA HDDs and 2 x 2.5" SAS/SATA HDDs or SSDs
26 x 2.5" SAS/SATA HDDs or SSDs
RAID support RAID 0, 1, 10, 5, 50, 6, and 60
RAID cache: 512 MB or 1 GB
Power-off protection:
BBU (3 x 24 hours)
Supercapacitor
LOM network port 2 onboard GE ports or 4 onboard GE ports or 2 onboard 10GE ports
Expansion slot Up to 6 PCIe 3.0 slots
1 processor:
1 PCIe 3.0 x4
1 PCIe 2.0 x4
1 PCIe slot for a RAID controller card
2 processors:
1 PCIe 3.0 x4
1 PCIe 2.0 x4
1 PCIe slot for a RAID controller card
(Optional 1) 1 PCIe 3.0 x16 and 1 PCIe 3.0 x8
(Optional 2) 3 PCIe 3.0 x8
USB port 6 (front: 2 , rear: 2, built-in: 2)
Fan module Support hot-swappable counter-rotating fan modules in N+1 redundancy mode
PSU 2 hot-swappable 1+1 redundant PSUs:
AC: 460 W or 800 W
–48 V DC: 800 W
Management UEFI, Huawei iMana support IPMI, SOL, KVM over IP, and virtual media
One 10/100 Mbit/s RJ45 management network port
Operating systems supported Microsoft Windows Server
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Oracle Enterprise Linux / Oracle Server VM
CentOS
Solaris
Citrix XenServer
VMware ESX / VMware ESXi
Power supply 110 V/220 V AC or –48 V DC
Operating temperature 5ºC–40ºC (41ºF–104ºF)
Dimensions Height: 87.5 mm (3.44 in.)
Width: 447 mm (17.60 in.)
Depth: 740 mm (29.13 in.)
