Specifications
current transformerpassed ISO9001
rated secondary current: 5A
good quality and best price

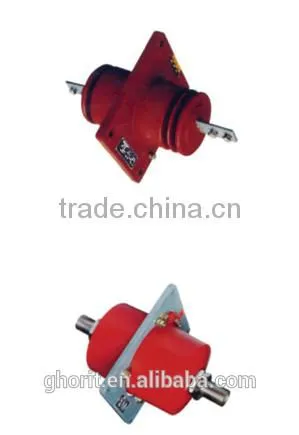

LDZ(J)1-10 current transformer
description
Current transformer LDZl-10 which is resin casting insulated Single-turn th rough type is applicable for use of elect ric measu rement and relaying protection of in door type power system of 10 kV and below at the frequency of 50Hz .

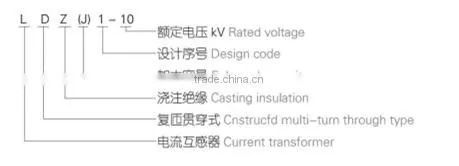

type description
Service condition
Altitude:Not over 1000m;
Ambient temperature:-5°C to+40°C;
Relative humidity:less than 85%,at 20°C;
The product has passed the dlvect vibration test with the intensity of 0.4g three sine waves,equivalent to nice degree earth quake on the richter scale.
construction
The Current transformer is an arnealed ring core nound with primary winding and secondary winding cast with epoay resin for insulation There are rating plate,earthing bolt and mounting hole on the cast body base for wall through mounting of filed srritching case.
Technical data
performance conforms with IEC standard amd GB1208-87 <Current Transformer>.
| rated primary cyrrent (A) | rated secondary current (A) | rated frequency (Hz) | rated output (VA) | rated insulation level (kV) | lth/1s (r.m.s) (kA) | ldyn (peak) (kA) | ||
| 0.2 | 0.5 | 10P10 | ||||||
| 400,500 | 5 | 50 | 10 | 10 | 15 | 11.5/42/75 | 75 l 1n | 120 l 1n |
| 800,1000,1500 | 50 l 1n | 90 l 1n | ||||||

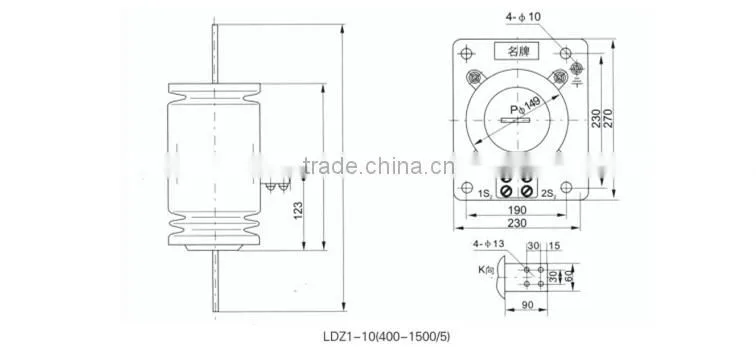

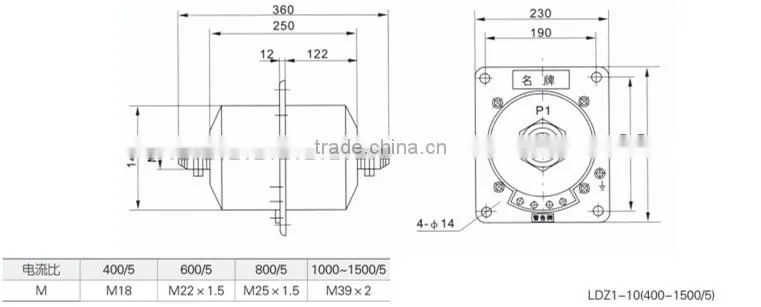

Overall dimension
