Home > Electrical & Electronics > Breaker & Protector > Circuit Breaker > Outdoor 3 Poles Auto Recloser Outdoor 12kV 630A VCB

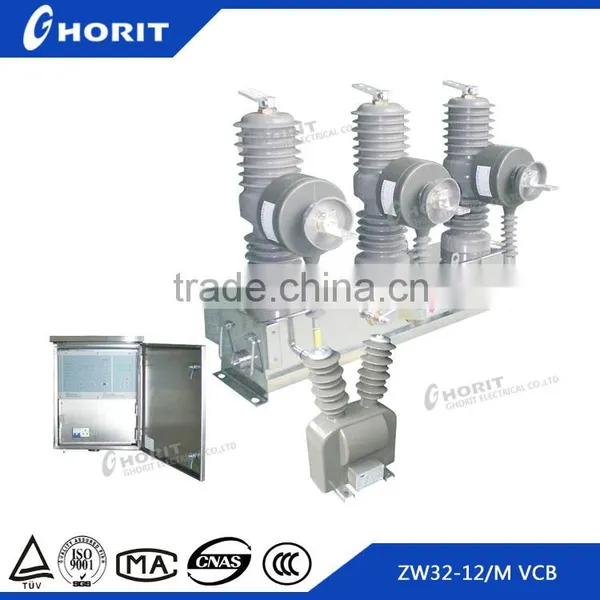

Outdoor 3 Poles Auto Recloser Outdoor 12kV 630A VCB
US$ 1,000 - 1,500
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Ghorit, Ghorit
Model Number:
ZW32-12, ZW32-12
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shangh
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZW32-12 Type Solid Seal With Ground Protection Type of Outdoor High Voltage Vacuum Circuit BreakerUS$ 2,000 - 3,500MOQ: 1 Unit -
11kv Vacuum Switch VD4 Circuit Breaker VS1 12KV Vacuum Circuit BreakerUS$ 1,100 - 2,500MOQ: 1 Set
-
ZN63(VS1)-12 Timer Vacuum Circuit BreakerUS$ 1 - 1,000MOQ: 1 Set
-
11kv Fixed Type Of Indoor High Voltage Vacuum Circuit Breaker VCBUS$ 1 - 1,000MOQ: 1 Set
-
11kv VCB With Embedded Pole Of Draw-out Type ZN63(VS1)US$ 1 - 1,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Ghorit, Ghorit
Model Number
ZW32-12, ZW32-12
Type
Other, Vacuum, Vacuum
Poles Number
Other, 3, 3
Environmental conditions:
1. Environmental temperature: no higher than +40 °C, no less than -40 °C ;
2. Air relative humidity: day average no greater than 95%, on average less than 90%;
3. The altitude does not exceed 2000 m;
4. Wind pressure not more than 700 Pa (equivalent to wind speed 34 m/s);
5. Seismic intensity not more than eight level;
6. No fire, explosion, serious filthy, chemical corrosion and violent vibration of places.
7. If the customers have other special requirements, can be in order to put forward, our company can offer most satisfied.
Mainly Technical Parameters
| NO. | item | unit | value | ||
| 1 | Rated voltage |
KV | 12 | ||
| 2 | Rated current |
A | 630, 1250 | ||
| 3 | Rated frequency | HZ | 50 | ||
| 4 | 1min power frequency withstand voltage | Dry |
KV | 42/48 | |
| Wet | 34 | ||||
| 5 | lightning impulse withstand current (peak) | KV | 75/85 | ||
| 6 | Rated short-circuit breaking current |
KA | 20 | 25 | |
| 7 | Rated short-circuit current (peak) | KA | 50 | 63 | |
| 8 | Rated peak withstand current |
KA | 50 | 63 | |
| 9 | 4s short-time withstand current | KA | 20 | 25 | |
| 10 | Rated operating cycle | sub-0.3s-hop sub-180s-hop sub | |||
| 11 | rated short-circuit current breaking time | times | 30 | ||
| 12 | mechanical life | times | 10000 | ||
| 13 | secondary circuit 1 min power frequency withstand voltage | KV | 2 | ||
