Product Name: 36KV High Voltage Vacuum Circuit Breaker ZN85-40.5/T
Type: Circuit Breaker
Parameters:
| Product Name | 36KV High Voltage Vacuum Circuit Breaker ZN85-40.5/T |
| Tyep | Circuit Breaker |
| Rated Voltage | 35KV / 40.5KV |
| Rated Short-Circuit Breaking Current | 20KA / 25KA , 31.5KA |
| Rated Current Rated Current | 1250A, 1600A , 2000A ,2500A |
| Frequency | 50HZ |
| Alitude | Not exceed 1000m |
| Ambient Temperature | not higher than +40 °C , not less than -15 °C |
| Certificate | ISO9001 |
| Machanical Life | 10000 times |
| RMS | 20KA /25KA , 80KA |
| Dynamic Stability rated current(peak) | 63KA , 80 KA |
| Rated short-circuit closing current(peak) | 63KA |
| Rated short-Circuit closing breaking current breaking number | 20 Times |
| Rated operating sequence | O-0.3s-CO-180s-CO |
| Rated thermal stabilization time | 4s |

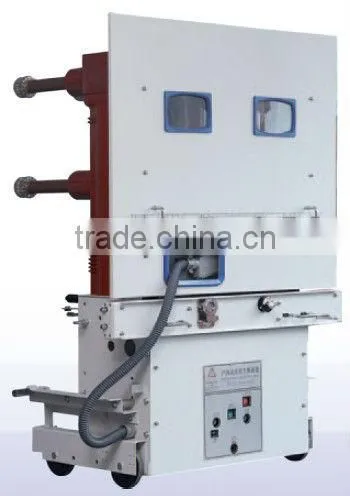

36KV High Voltage Vacuum Circuit Breaker ZN85-40.5/T :

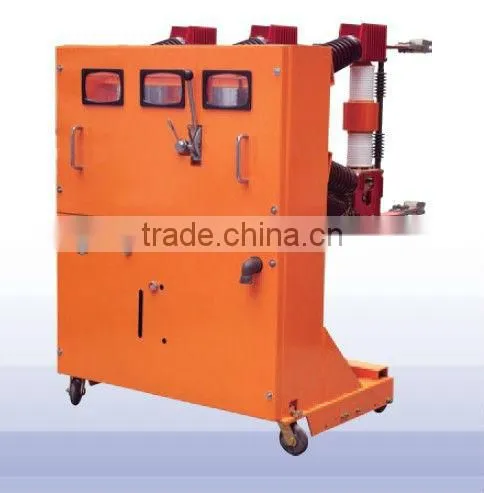

Outdoor 33KV Voltage Vacuum Breaker ZN23-40.5 :
11kv Handcart Parts Of Vacuum Circuit Breaker ZN63(VS1)-12 :
ZN63(VS1)-12 Embedded Poles Type Indoor HV VCB:
ZN63(VS1)-12 type Side installation indoor high voltage vacuum circuit breaker:
ZN63(VS1)-24 Handcart Type Indoor High Voltage Vcb:
ZN63(VS1)-12 Side installation type of indoor VCB:
ZN63(VS1)-12 Side installation with embedded pole:
ZN63(VS1)-12 Embedded pole with draw-out type:
Test Report:
