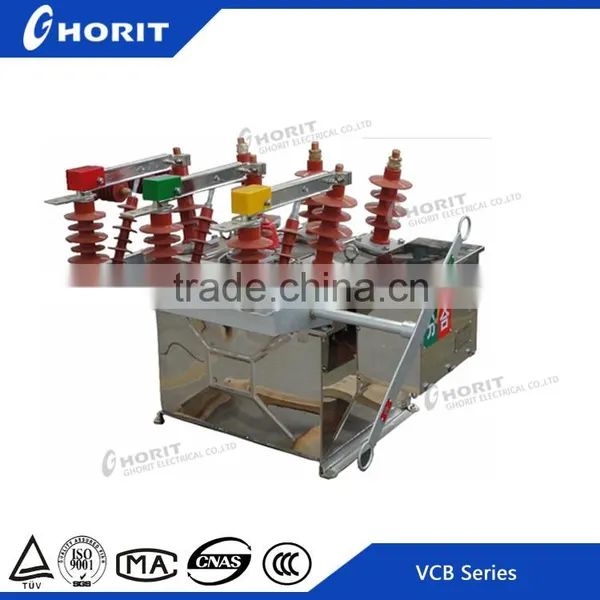

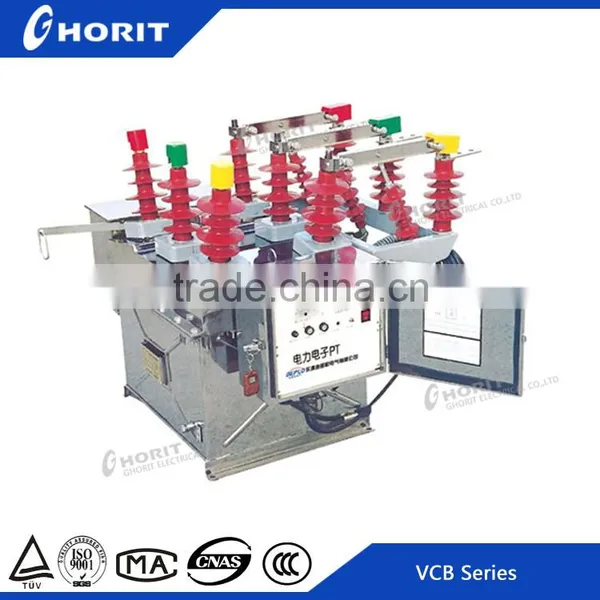

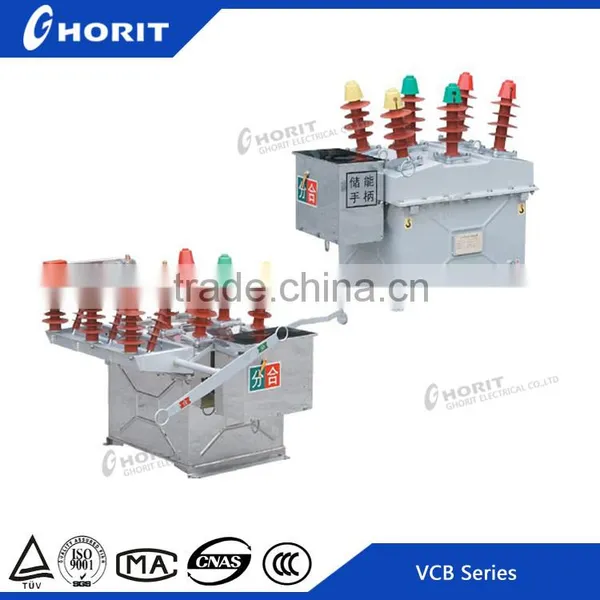

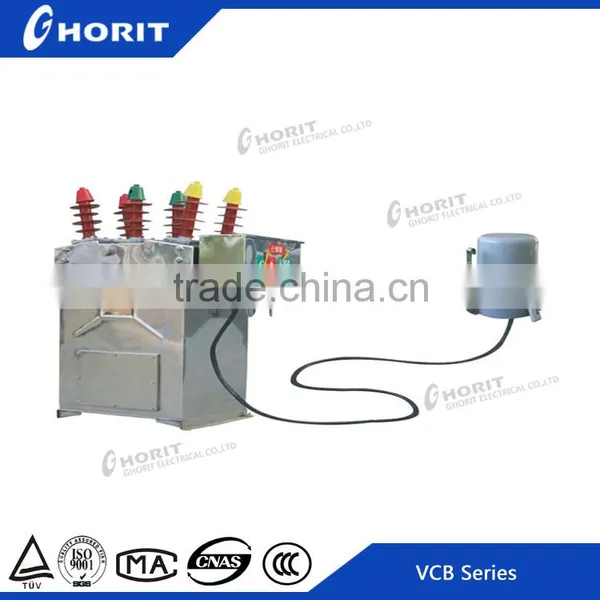

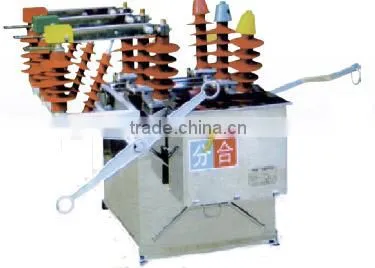

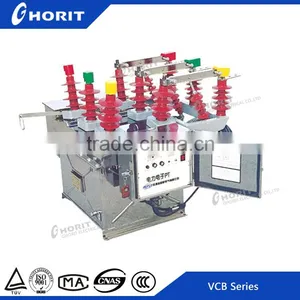

Help CenterZW8-12(G) Series Outdoor High Voltage Vacuum Circuit Breaker
Related Products
-
Zhejiang Ghorit 12kv Outdoor High Voltage Vacuum Circuit Breaker ZW10-12US$ 600 - 600MOQ: 1 Unit -
ISO9001 Approved ZW7-40.5 Outdoor High Voltage Vacuum Circuit BreakerUS$ 1,000 - 1,000MOQ: 1 Set
-
GVS9-24 Embedded Poles Type Circuit Breaker 24kv 630A Solid Seal Pole Vacuum Circuit BreakerUS$ 1,200 - 2,400MOQ: 1 Set
-
ZW32-12 (G) Series Outdoor High Voltage Pole Mounted VCB (Auto Recloser)US$ 600 - 1,200MOQ: 1 Set
-
ZN63(VS1)-12 Vd4 Vacuum Circuit Breaker Compact Size VCB Small Pole Distance VCBUS$ 1,000 - 2,000MOQ: 1 Set
ZW8-12 (G)-series outdoor high voltage vacuum circuit breaker is rated voltage 12KV, three-phase AC 50Hz outdoor high voltage switchgear is mainly used to breaking Closing Rural power network , city network and small power system load current, overload current, short-circuit current . The product of the overall structure is box-type three-phase, three-phase vacuum interrupter placed in metal boxes, using SMC insulation material and inter-phase insulation and ground insulation, reliable performance, high dielectric strength.
ZW8-12 (G) is ZW8-12 a composite by circuit breaker and isolating switch, called the combination of circuit breakers, use for disconnect switches
This series of operating mechanism for the CT23-type spring operatingmechanism energy storage can be divided into two kinds of electric and manual.
Mainly Technical parameters
| NO | Item | Units | Value | |||
| 6.3KA | 12.5KA | 20KA | ||||
| 1 | Rated voltage | KV | 6.3 | 12 | 20 | |
| 2 | Rated current | A | 16 | 630(1250 ) |
50 | |
| 3 | Rated short-circuit breaking current | KA | 16 | 12.5 | 50 | |
| 4 | Rated short circuit closed current(peak) | KA | 6.3 | 31.5 | 20 | |
| 5 | Rated peak withstand current | KA | 31.5 | |||
| 6 | Rated short-circuit withstand current |
KA | 12.5 | |||
| 7 | Rated insulation level | power fequency withstand voltage(dry) | 42 | |||
| lighting impulse withstand voltage(peak) | 75 | |||||
| 8 | Rated operating sequence | O-0.3s-CO-180s-CO | ||||
| 9 | Mechanical life | times | 1000 | |||
| 10 | Rared short-circuit breaking current breaking times | times | 20 | |||
| 11 | Rated closing voltage of operation mechanism | V | 110,220 | |||
| 12 | Rated opening voltage of operation mechanism | V | 110,220 | |||
| 13 | Contact distance | mm | 11±1 | |||
| 14 | Over stroke (cmpression length of contact spring) | mm | 3 +1 -0.3 |
|||
| 15 | Three phase closing and opening non-synchronism | ms | ≤ 2 | |||
| 16 | Contact closing bounce duration | ms | ≤ 2 | |||
| 17 | Average opening speed | m/s | 1.0±0.2 | |||
| 18 | Average closing speed | m/s | 0.7±0.15 | |||
| 19 | Opening time | m/s | 15-50 | |||
| 20 | Closing time | m/s | 25-50 | |||
| 21 | Resistance o main loop for each phase | µ Ω | ≤ 0.06 | |||
| 22 | Permitted accumulate wear-thickness of dynamic and static contact | mm | ≤ 200 | |||
