Specifications

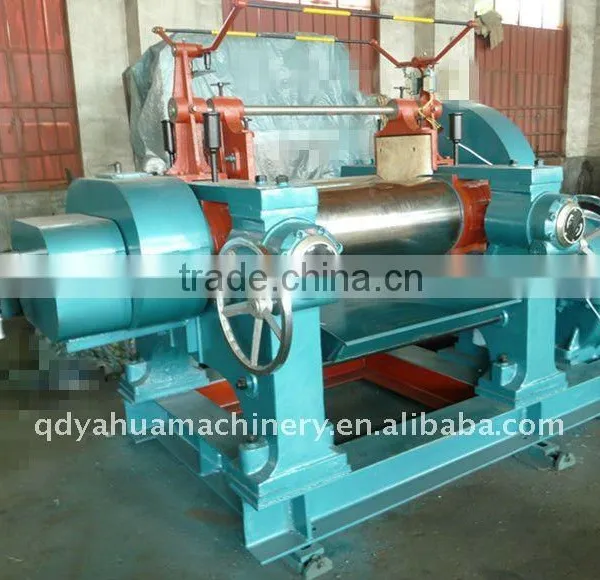

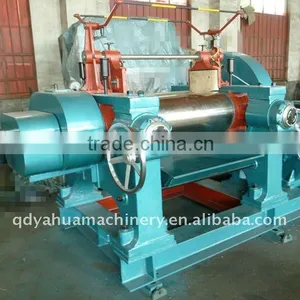

Rubber Sheeting Mill Machine1.Built-in heater
2.electric heating and cooling system
3.Taiwang gear motor
rubber mixing machinery
Introduction:
Rubber Sheeting Mill machine is chiefly used as accessory of internal mixers to make rubber sheets.
The rollers are made of chilled cast iron with vanadium and titanium alloys. The roller face is hard and anti-wear. The internal cavity is processed to make temperature well proportioned on the roll surface.
The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
The machine is also equipped with an emergency device. When an emergency accident happens, just draw the pull rod, and the machine will stop immediately. It is safe and reliable.
The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission effciency, lower noise and longer service life.
The base frame is a complete framework, which is convenient for installation.
Version and its Technique Parameters:
| Technique Parameters | XK-160 | XK-250 | XK-400A | XK-450A | Xk-450 | XK-560A | XK-550B | XK-660 | XKY-660 |
| Roll diameter(mm) | 160 | 250 | 400 | 450 | 450 | 560/510 | 550 | 660 | 660 |
| Roll length(mm) | 320 | 620 | 1000 | 1200 | 1200 | 1530 | 1500 | 2130 | 2130 |
| Front roll surface speed(m/min) | 8.95 | 15.3 | 18.65 | 18.65 | 23.47 | 27.87 | 28.32 | 28.6 | 32.53 |
| Friction ratio | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max.nip | 4.5 | 8 | 10 | 15 | 15 | 15 | 15 | 15 | 15 |
| Feeding capacity per | 1-2 | 10-15 | 18-35 | 25-50 | 25-50 | 35-50 | 50-60 | 165 | 165 |
| Power | 5.5 | 18.5 | 37 | 55 | 55 | 90 | 110 | 160/245 | 160/245 |
| Size(lenght*width*height)(mm) | 1226*830*1295 | 3400*1600*1500 | 4350*1850*1780 | 5200*2380*1940 | 5670*2390*1670 | 6180*2280*1970 | 5870*2470*2040 | 7460*3660*2080 | 7465*3660*2080 |
| Weight(Kg) | 1280 | 3300 | 7860 | 12600 | 11940 | 22500 | 27000 | 49940 | 49000 |
