Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CXF-LS160 CNC Gear Milling Machine With Turning Lathe

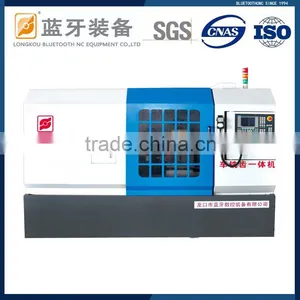

CXF-LS160 CNC Gear Milling Machine With Turning Lathe

Name: CXF-LS160 CNC Gear Milling Machine With Turning Lathe
Brand: BLUETOOTHCNC
SKU: 128435371

CXF-LS160 CNC Gear Milling Machine With Turning Lathe thumbnail-1

CXF-LS160 CNC Gear Milling Machine With Turning Lathe thumbnail-2

CXF-LS160 CNC Gear Milling Machine With Turning Lathe photo-1

CXF-LS160 CNC Gear Milling Machine With Turning Lathe photo-2

US$ 66,750 - 66,750 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Longkou Bluetooth NC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 300mm

Place of Origin Shandong, China

Brand Name BLUETOOTHCNC

Model Number CXF-LS160

Voltage 380V

Power(W) 18kw

Dimension(L*W*H) 2400*1400*1850mm

Weight 3000kg

Certification ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

CXF-LS160 CNC gear milling machine for milling spline shaft

The CXF-LS160 CNC automatic turning&milling gear machine is our patent invention, it can finish different production methods,such as:turning,milling,drilling,deburring and plunge-cutting etc by once clamping.

advantage:

A) CXF-LS: Good at processing such as: spline,gears and lugs etc.

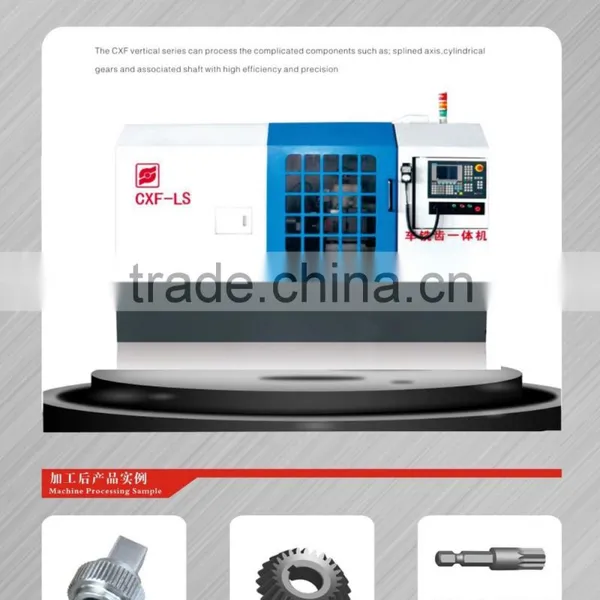

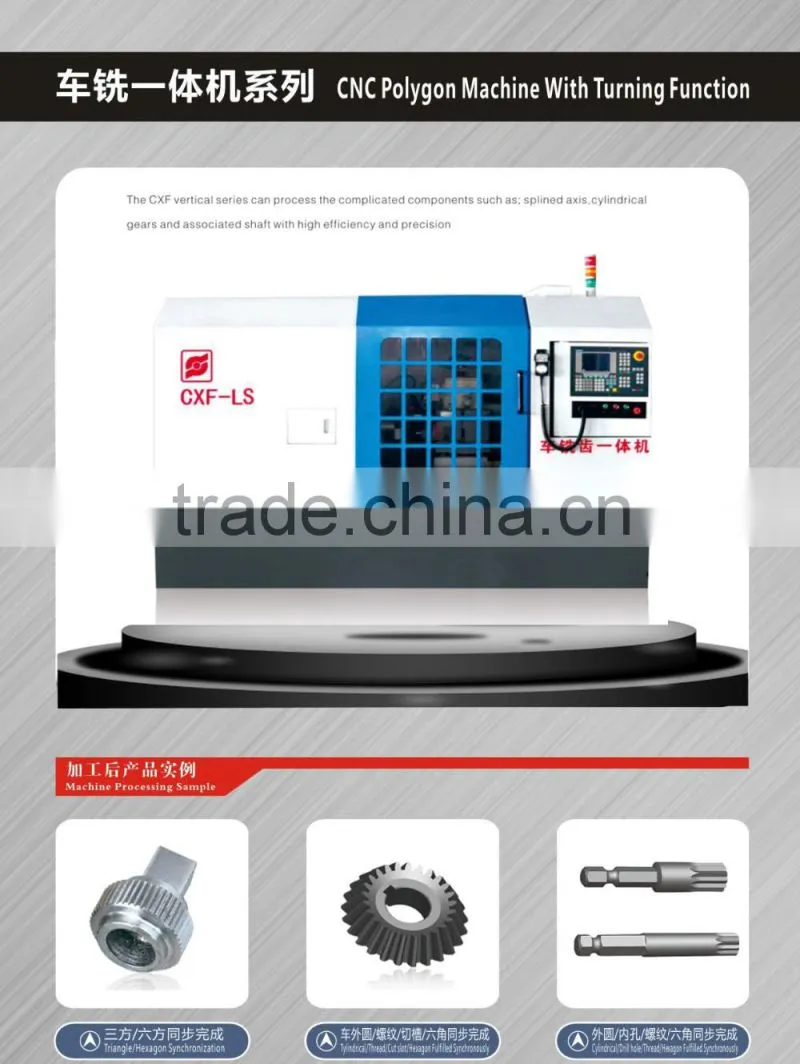

B) The CXF vertical series can process the complicated components such as:splined axis, cylindrical gears and associated shaft with high efficiency and precision.

Technical Parameters

Index	Unit	CXF-LS40	CXF-LS80	CXF-LS125	CXF-LS160
piece Dia	mm	40	80	125	160
piece length	mm	100	200	300	300
Max.subtense of turning and milling	mm	32	80	125	160
Feed rate X/Z axis	mm	100/150	150300	200/300	200/300
Rapid traverse X/Z axis	m/min	10	10	10	10
Max.cutter&max.milling head speed	r/min	2000	2000	2000	2000
Motor power of servo apindle	kw	7.5KW 380V/50HZ	9KW 380/50HZ	11KW 380V/50HZ	18KW 380V/50HZ
Positioning accuracy	mm	X/Z:0.0015	X/Z:0.0015	X/Z:0.0015	X/Z:0.0015
Repeated positioning accuracy	mm	X/Z:0.01	X/Z:0.01	X/Z:0.01	X/Z:0.01
NC system		Siemens	Siemens	Siemens	Siemens
Machine size( LWH)	mm	160014001800	240014001850	240016001850	240016001850
Machine weight	kg	2000	3000	4000	6000
Turret		4 or 6	4 or 6	6	8
Lubrication		Concentrated lubrication	Concentrated lubrication	Concentrated lubrication	Concentrated lubrication
