CXK32 CNC Processing Machinery Screwdriver Production Line
US$ 18,600 - 18,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CXF-W80 CNC Lathe Special Purpose MachineUS$ 42,000 - 42,000MOQ: 1 Set -
CXF-W80 CNC Tuning and Milling Pologon Lathe MachineUS$ 42,000 - 42,000MOQ: 1 Set
-
Factory Price High Precision CXK32 CNC Turning and Milling MachineUS$ 18,600 - 21,000MOQ: 1 Set
-
Stringent Specification CXF-W60 CNC Machine Tool for Squares, Hexagons,polygonsUS$ 42,000 - 42,000MOQ: 1 Set
-
Factory Price CXF-LS80 Horizontal Turning and Milling Machine / CNC Lathe/for HexagonUS$ 74,500 - 74,500MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
200mm
Place of Origin
Shandong, China
Brand Name
BLUETOOTHCNC
Model Number
CXK32
Voltage
380V
Power(W)
2.2KW
Dimension(L*W*H)
1400X1050X1700mm
Weight
1200KGS
Certification
ISO9001:2008
After-sales Service Provided
Engineers available to service machinery overseas

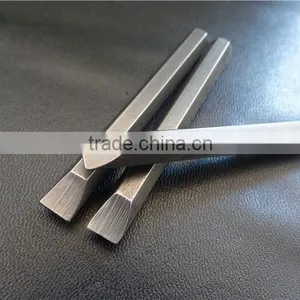

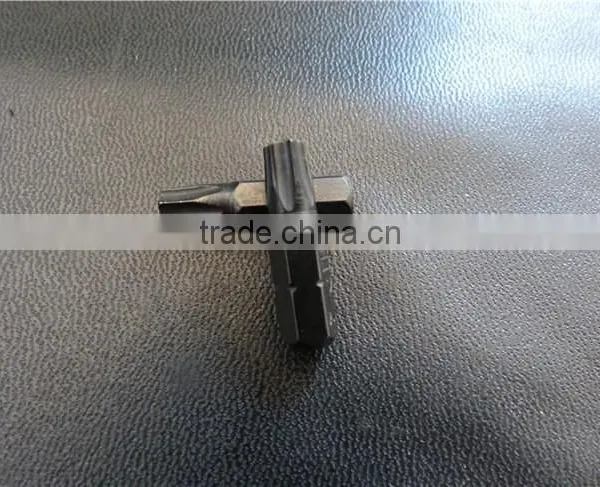

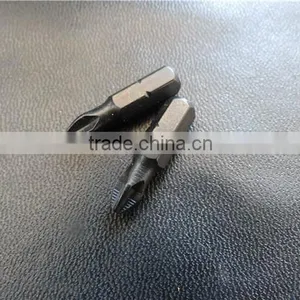

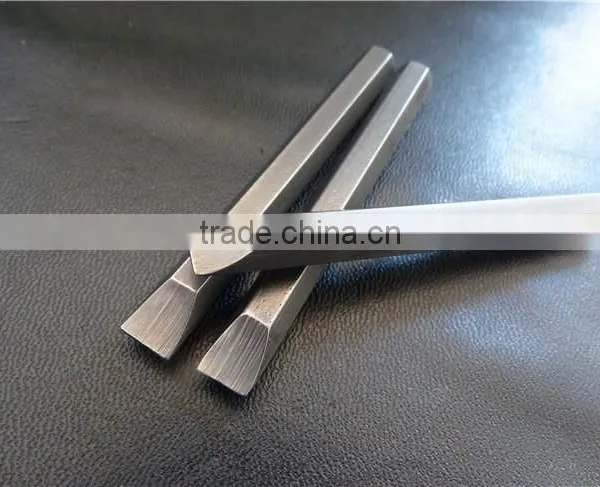

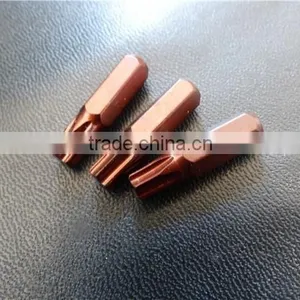

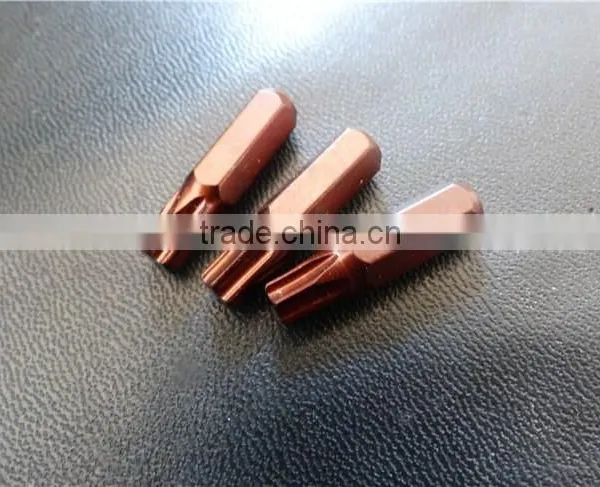

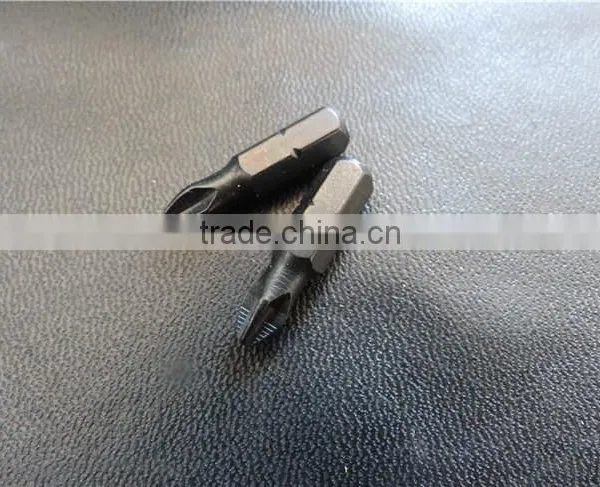

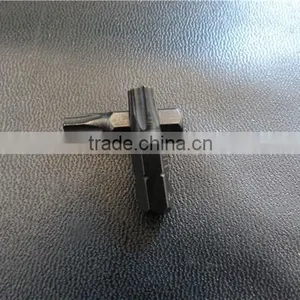

CXK32 CNC screwdriver machine for PH2 1/4'' bits
CXK32 CNC screwdriver machine for PH or PZ bits can finish turning,milling etc much more process by once clamping on the one end of the bit.CNC screwdriver processiong machine:dedicated to processing screwdrivers.
advantage:
A) CNC turning&milling machine for bit integrate turning, milling, drilling, and other multi - pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) CNC turning&milling machine for bit have high efficient, 8-12pcs/min.
C) CNC turning&milling machine for bit have more Multi-function,can produce: Phillips,Flat,Torx, Pozidriv,Squre,Hexagonal etc.
D) Easy to learn and operate;handles small-volume,large-variety processing.
| Items | UNIT | Main techinical data |
|---|---|---|
| Item No. | mm | CXK32 |
| Control spindle | mm | Servo drive and motor |
| Max.chuck | mm | 32mm |
| Processing efficiency | pcs/min | 12pcs/min |
| Motor fot X/Z axis | 6N.M servo moto | |
| Rapid traverse X/Z axis. | m/min | 15m/min |
| Max.cutter head speed | rpm | 3000rpm |
| X/Z axis screw | ball screw | |
| X/Z axis guide rail |
Linear ball guide | |
| Motor power of servo apindle | kw | 2.2KW 380V/50HZ |
| Positioning accuracy | mm | X/Z:0.015mm |
| Repeated Positioning accuracy | mm | X/Z:0.01mm |
| NC system | Siemens/Xindai | |
| Total weight | kgs | 1000kgs |
| Dimensions | mm | 1400X1050X1700mm |
| |
