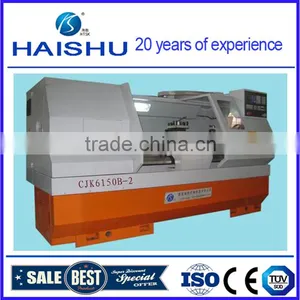

cnc lathe CJK6150B lathe machine cnc China Supplier Hot athe cnc
1.Technical parameters
Project |
Technical parameters |
Maximum swing diameter over bed parts |
Φ500mm |
Diameter of the largest pallet |
Φ290mm |
Maximum length of workpiece |
750/1270mm |
Spindle speed range |
20~100,100~550,400~1600 rpm |
Diameter of Spindle Bore |
Φ82mm |
Guide width |
400mm |
Structure of the spindle nose |
D8 |
Front spindle taper hole |
Metric system 1:20 |
Turret tool stations |
4/6/8/Or gang-type tool carrier |
Tool cross-section specifications |
25mm×25mm |
Motor minimum unit |
(Z) Longitudinal 0.001mm,(X) Horizontal 0.001mm |
Arbor fast forward speed |
(Z) Longitudinal 10m/min, (X) Horizontal 8m/min |
Taper of tailstock sleeve |
MT5 |
2.Features
1. 3 gears conversion stepless speed regulation, with independent variable speed spindle and gear the comprehensive advantages of turning torque, wide speed range, high efficiency, high precision, energy saving.
2. Spindle diameter increased φ82mm.
3. Bed width 400mm
4. High Quanlity & Reasonable Price, economicalandpractical
3.Uses
uses for steel, cast iron and other coarse materials, vehicles and precision machining.
Tuv certification:
CE certification:
Thank you for your interest in our production of CNC machine tool products, in order to protect your legal rights, from you for purchasing our CNC machine tools worries, we like all of our customers to purchase CNC machine tool products, on product quality and after-sales service to make the following committed to:
1, three bags a year, life-long service
2, free training operators
3, receiving customer feedback, provide solutions within 24 hours
4, CNC equipment parts are used in the world and China's well-known brand manufacturers
5, the company exports are the new equipment CNC equipment, packaging before the error, have good debugging, fully meet customer requirements, before allowing shipment
Number Taian Hai Machinery Manufacturing Co., Ltd. (Tai'an City Hite machinery manufacturing limited liability company) is manufacturing of CNC machine tools and engine testing equipment professional enterprises, scientific research, production and marketing of high-tech enterprises. The company's CNC machine tools and test equipment division division, has passed the ISO9001: 2008 international quality management system certification and the European CE certification. Strong technical force, has a group of young and promising engaged in CNC machine tools and test equipment design and manufacturing, electrical design and application of numerical control technology and software development professional and technical personnel. The use of advanced two-dimensional and three-dimensional CAD computer-aided design, product innovation, equipment, numerical control, management information, has become the domestic industry technology leader.
CNC machine tools are: CNC lathes, turning centers, machining centers, CNC lathes instrumentation, CNC lathes, CNC machine tools, automatic feeding CNC lathes, lathes, automatic lathes, mini lathes, woodworking lathes, woodworking tools, small machine tools, CNC light machine tools, machine tools, precision machine tools. Lathe-ray machines, precision lathes, small CNC lathes, CNC lathes and other economy.
Test equipment are: injection pump test bench, injector test bench, common rail injector test bench, common rail system test bench and so on.
Number Taian Hai Machinery Manufacturing Co. NC machine model is complete, it can be customized according to customer all kinds of special tools workpiece
CNC machine tool exports Packing: Export Packing Machine fumigation
Transportation: If the customer does not have special requirements, CNC machine tools and engine test equipment exports, usually automotive logistics transport to Qingdao port, transport to the nearest port customer specified by ship.
