Thank you for your interest in our production of CNC machine tool products, in order to protect your legal rights, from you for purchasing our CNC machine tools worries, we like all of our customers to purchase CNC machine tool products, on product quality and after-sales service to make the following committed to:
1, three bags a year, life-long service
2, free training operators
3, receiving customer feedback, provide solutions within 24 hours
4, CNC equipment parts are used in the world and China's well-known brand manufacturers
5, the company exports are the new equipment CNC equipment, packaging before the error, have good debugging, fully meet customer requirements, before allowing shipment
Number Taian Hai Machinery Manufacturing Co., Ltd. (Tai'an City Hite machinery manufacturing limited liability company) is manufacturing of CNC machine tools and engine testing equipment professional enterprises, scientific research, production and marketing of high-tech enterprises. The company's CNC machine tools and test equipment division division, has passed the ISO9001: 2008 international quality management system certification and the European CE certification. Strong technical force, has a group of young and promising engaged in CNC machine tools and test equipment design and manufacturing, electrical design and application of numerical control technology and software development professional and technical personnel. The use of advanced two-dimensional and three-dimensional CAD computer-aided design, product innovation, equipment, numerical control, management information, has become the domestic industry technology leader.
CNC machine tools are: CNC lathes, turning centers, machining centers, CNC lathes instrumentation, CNC lathes, CNC machine tools, automatic feeding CNC lathes, lathes, automatic lathes, mini lathes, woodworking lathes, woodworking tools, small machine tools, CNC light machine tools, machine tools, precision machine tools. Lathe-ray machines, precision lathes, small CNC lathes, CNC lathes and other economy.
Test equipment are: injection pump test bench, injector test bench, common rail injector test bench, common rail system test bench and so on.
Number Taian Hai Machinery Manufacturing Co. NC machine model is complete, it can be customized according to customer all kinds of special tools workpiece
Tuv certification:
CE certification:
CNC machine tool exports Packing: Export Packing Machine fumigation
Transportation: If the customer does not have special requirements, CNC machine tools and engine test equipment exports, usually automotive logistics transport to Qingdao port, transport to the nearest port customer specified by ship.

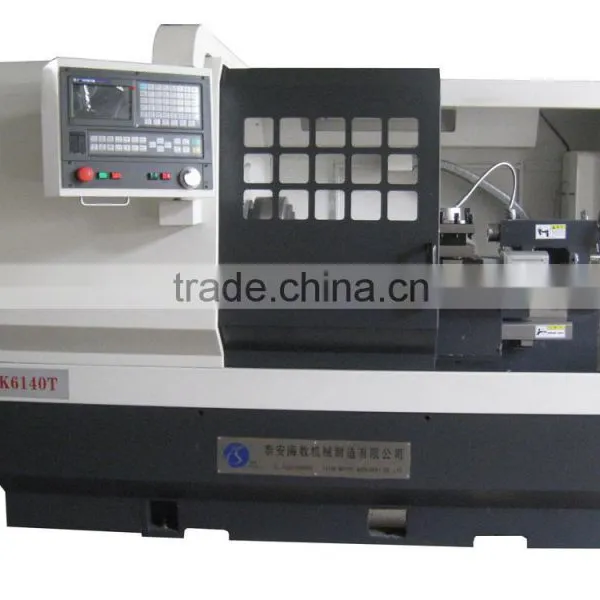

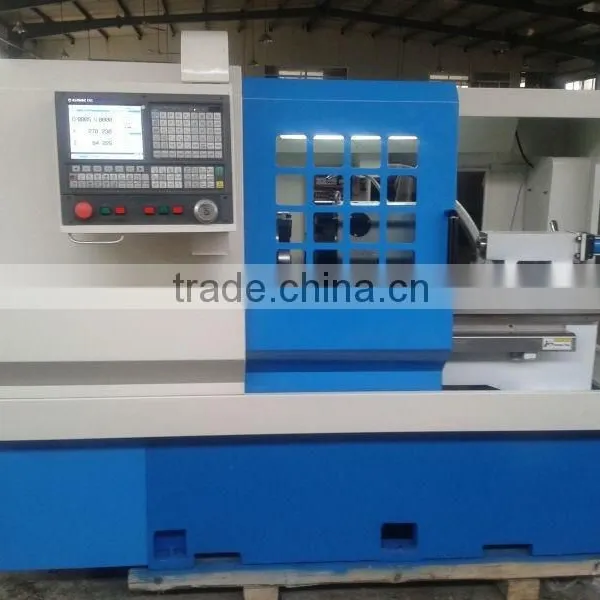

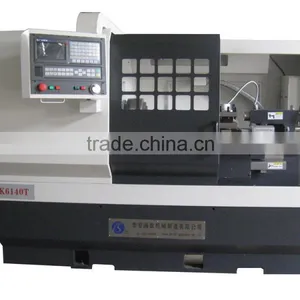

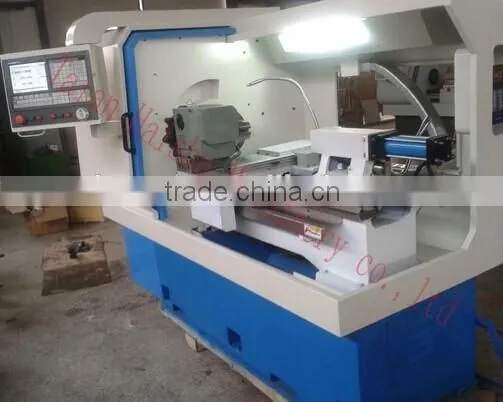

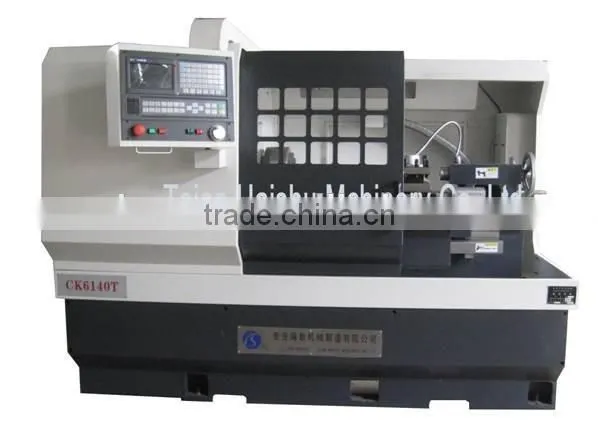

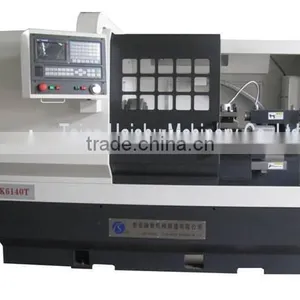

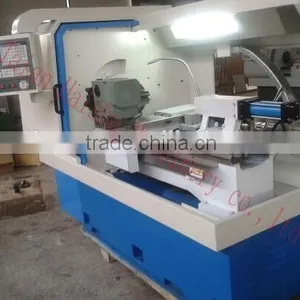

CK6140T Large hole CNC Lathe

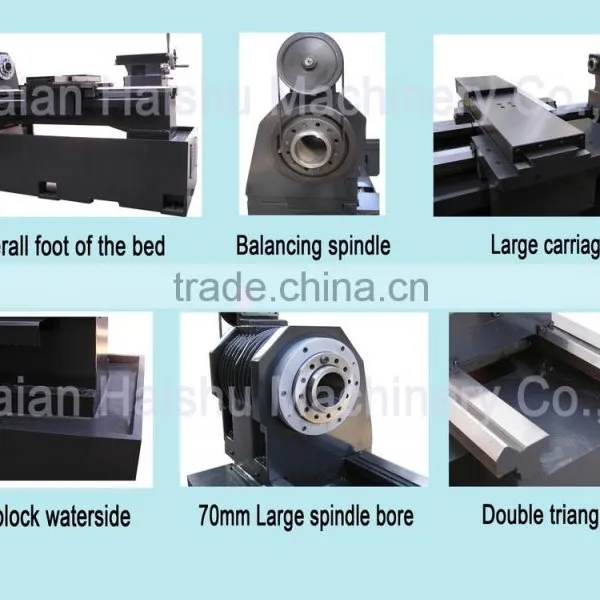

1. Main features
1.)big spindle bore dia(70mm)
2.)big swim over the bed dia (420mm)
3.)high spindle speed (2800rpm)
4.)wide casting at all the foot of the bed;30mm higher side to Stop water
5.)theguide railwidth (340mm)
6.)Double triangle guide rail.
7.)Tailstock is double platen to strength
8.)independent spindle and frequency conversion stepless
9.)Feed of X Z axis are driven by ball screw with servo-motor or stepper motor.
10.)the guideway use hyperacoustic quenching.
11.)Hardended and ground bed guide way coated with Turcite-B
12.)high pression ball screw, High rigid precision composite bearing structure
13.)ball screw and the guide surface combination use automatic lubrication system.
2. Technical parameters
Item |
Project name |
Technical paramaters |
technical specifications |
Max.swiming over the bed dia. (mm) |
420 |
Max.swiming over pallet(mm) |
230 |
|
Max.the workpiece length(mm) |
750 |
|
Main transmission |
Main transmission form |
Independent spindle; frequency conversion stepless |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
200~2800 |
|
The form of the spindle head |
NO.6A2 type |
|
taper of Spindle hole |
MT6 |
|
Spindle bore(mm) |
70 |
|
Chuck dia. (mm) |
250 |
|
Main motor power(kw) |
5.5kw |
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 260Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
tailstock |
Dia. of tailstock quill(mm) |
60 |
Tailstock quill stroke(mm) |
120 |
|
Taper of tailstock quill |
MT4 |
|
Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
Horizontal 6,8-station electric turret or gang-type tool camier |
|
Repeat positioning accuracy(mm) |
0.008 |
|
Section of turning tool(mm) |
25*25 |
|
Size and weight |
The size of the machine (length*width*height)(mm) |
2400*1450*1650 |
Net weight of the machine(kg) |
2000 |
3. Configuration
(1)the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany),Fanuc (Japan)
(2) Chuck optional: manual, pneumatic or hydraulic chuck.
(3) Tailstock optional: manual, pneumatic, hydraulic.
(4) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect
(5) Lubrication configuration: automatic oil lubrication system.
4. Uses
