China's latest price of small CNC lathes

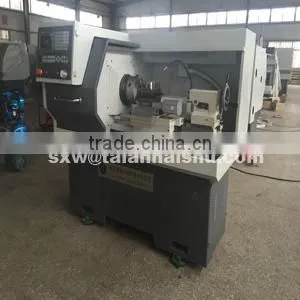

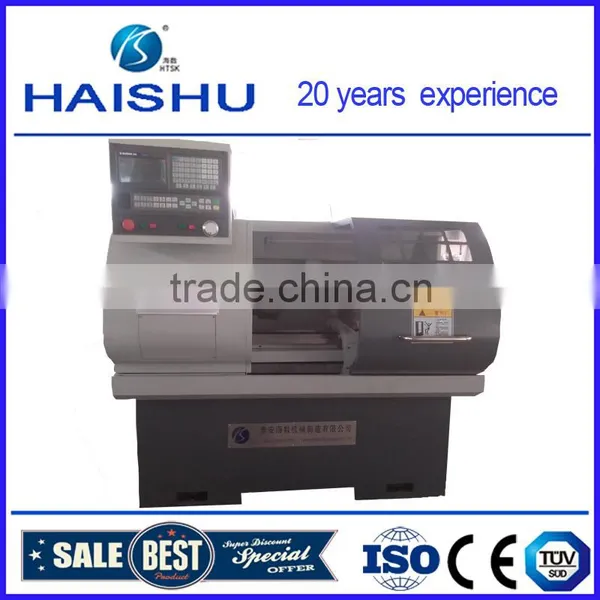

CK6432A CNC LATHE
items |
parameters |
Maximum workpiece swing diameter over bed |
Φ360mm |
|
Dragged on board the ma ximum workpiece swing diameter |
Φ160mm |
Maximum length of workpiece |
450mm |
Range of spindle speeds |
150-2500rpm |
Spindle bore diameter |
Φ60mm |
Taper of spindle bore |
MT6 |

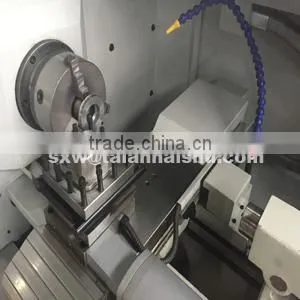

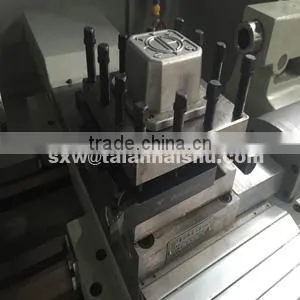

Turret Number of tool |
4/6/ or row of knife |
Tool cross-section specifications |
20mm×20mm |
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed |
Z: 8 m/min , X: 6 m/min |
Tailstock quill taper |
MT4 |
Tailstock quill maximum moving distance |
100mm |
Power of main motor |
4KW |
The lathe Dimensions (L × W × H) |
1600/1850 mm*1100 mm*1550mm |
Lathe Net |
1450kg |

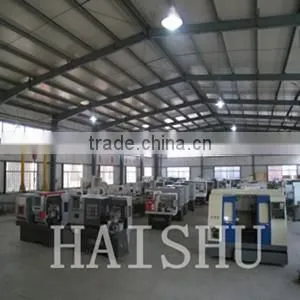

20 years experiences in cnc lathe machine reserach and production.
High reliability ,long lifetime to 10 years
One year warranty for whole machine,KND and GSK CNC System is 3 years
Professional engineer team to help you choose the suitable model and configuration.
Friendly factory price
Mechanical precision of our cnc lathe machine meet or exceed international standards
7X24 hours telephone or online technology support for free.
