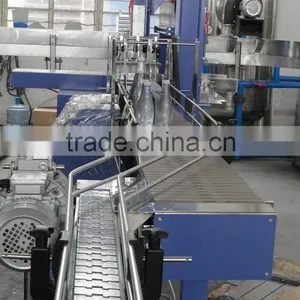

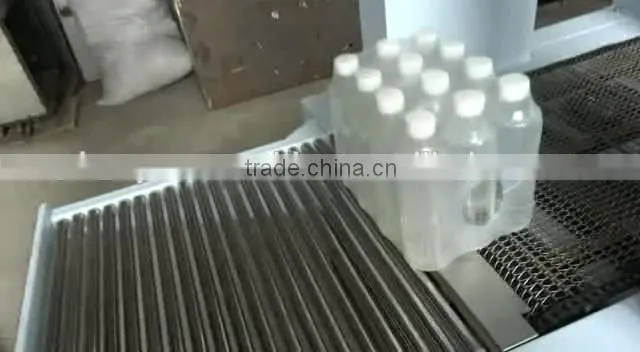

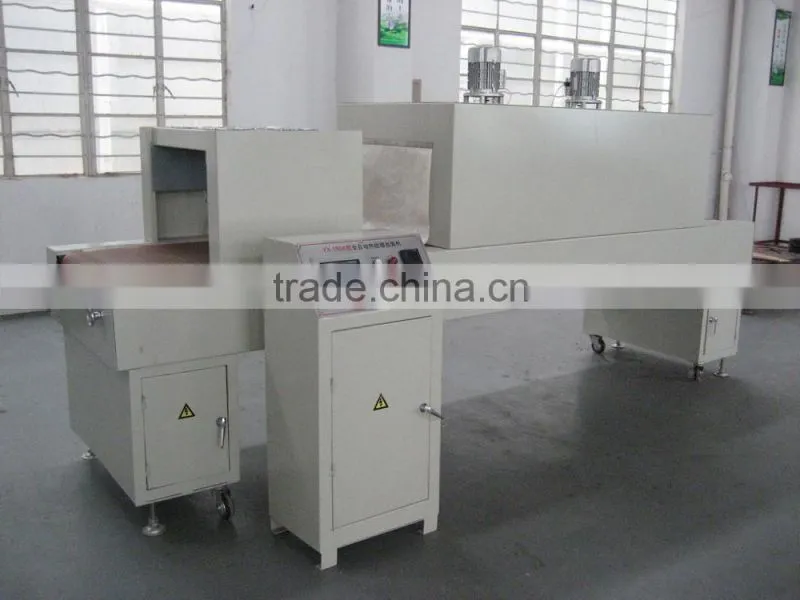

automatic shrink machine
1 Specially designed for the full automatic packaging production line of beer, beverage, pure water, fruit juice, daily products, etc.
2 With full automatic functions of bottle transfer and arrange, film packing, sealing and cut, shrink, cooling and shaping etc.
3 The quick seal cooling structure guarantee that the seal has a high strength even if under high speed production condition.
4 Adopt with PLC automatic program circulation control with stable and reliable performance.
5 The original imported guide bar cylinder guarantee correct operation and durable.
6 The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss.
7 All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
8 Unique thermal passage with centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.
9 Three layer of heat insulation treatment with good insulating properly, quick temperature rise and energy saving.
10 The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.
11 It is easy to change the packaging combination and bottle type to integrate the multi-function.
Dimension for the whole unit(mm) |
5500×3200×2100(L×W×H) |
Thermal shrinkage passage dimension(mm) |
1800×650×450(L×W×H) |
Max. package dimension(mm) |
600×400×350(L×W×H) |
Transfer belt dimension(mm) |
800-1200 |
Packaging speed(pcs/min) |
10-15 |
Sealing and cutting time(s)/temperature() |
0.5-1.5/140-160 |
Operating power supply(V)/power(kw) |
380/19 |
Operating air pressure(Mpa) |
0.6-0.8 |
Air consumption(m3 /min) |
0.5 |
