Mineral Water Filling Machine Price1.used for minerals and pure water
2.high quality but price is suitable
Mineral Water Filling Machine Price
Description:

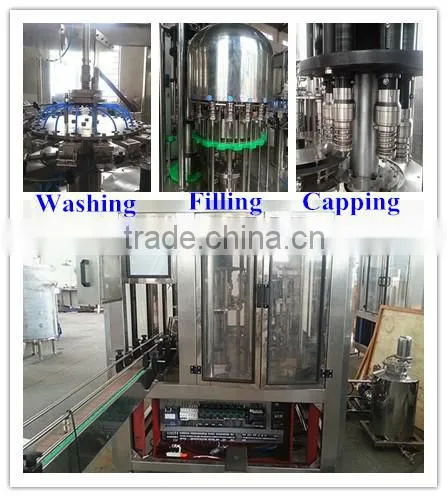

The mineral water filling machine is used for mineral water and pure water.The machine integrate washing, filling and capping into one unit.
Features:
1 Direct connection technology between air conveyor and in-feeding starwheel is applied to replace in-feeding screw and conveying chain to ease bottle changing process with only to change few parts. Newly-designed bottle-separating grippers are assembled to starwheel.
2 We adopts Neck-hanging technology in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily, without equipment height adjustment, only few parts need to be adjusted
3 Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution.
4 High-speed, easily-cleaned filling valves with big flow volume are equipped with well CIP system and control system to rinse the equipment throughly.
5 splint of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change arch board and starwheel, within ten minutes.
Specification
| Model | XGF12-12-6 | XGF18-18-6 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-12 |
| Production Capacity(500ml)b/h | 4000 | 6000 | 10000 | 14000 | 18000 | 24000 |
| Total Power(kw) | 3.58 | 4.68 | 6.58 | 9.68 | 9.68 | 10.8 |
| Bottle Shape | roud or square | |||||
| PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| Bap | PE srew cap | |||||
| Filling precision: | ≤±5mm | |||||
| Filling pressure:(Mpa) | 0.15-0.35 | |||||
| Rinsing pressure:(Mpa) | 0.2-0.25 | |||||
