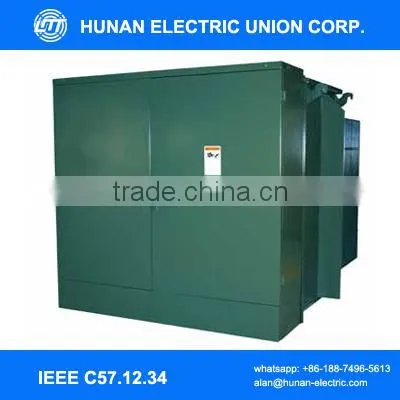

Help Center13.8kV Pad-Mounted Transformer, Three-Phase Distribution Transformers
Related Products
-
Pad-Mounted Transformer, Compartmental-Type, Self-Cooled, Three-Phase Distribution TransformersUS$ 2,000 - 100,000MOQ: 1 Set -
Pad-Mounted Transformer, Three-Phase Distribution TransformersUS$ 2,000 - 100,000MOQ: 1 Set
-
SF6 Ring Main Unit/SF RMUUS$ 5,000 - 60,000MOQ: 1 Set
-
11kV SF6 Ring Main Unit/SF RMUUS$ 5,000 - 60,000MOQ: 1 Set
-
20kV/22kV SF6 Insulated Ring Main Unit/SF6 RMUUS$ 5,000 - 60,000MOQ: 1 Set
Service condition | |
|
Normal Condition
Ambient temperature Indoor -5°C to +40°C Outdoor -10°C to +40°C Humidity 90% Altitude ≤1000m Pollution Level I-Light Level II-Medium Earthquake UBC Zone 3
|
Special Condition
Ambient temperature Indoor -15°C to +40°C, -25°C to +40°C Outdoor -10°C to +50°C, -25°C to +40°C -40°C to +40°C Humidity 95%, 98% Altitude ≤2000m, ≤3000m, ≤4000m Pollution Level III-Heavy Level IV-Very Heavy Earthquake UBC Zone 4
K-factor 3, 5, 7, 9, 11, 13, 15, 17
|
|
Standard code
IEEE Std C57.12.00™-2010 standard – Standard for Standard General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers. IEEE Std C57.12.28™-2014 standard – Pad-Mounted Equipment - Enclosure Integrity. IEEE Std C57.12.34™-2009 standard – Standard Requirements for Pad-Mounted, Compartmental-Type, Self-Cooled, Three-Phase Distribution Transformers (2500 kVA and Smaller) - High Voltage: 34500GrdY/19920 Volts and Below; Low-Voltage: 480 Volt 2500 kVA and Smaller (issued in March 2005 - combines IEEE Std C57.12.22 and IEEE Std C57.12.26 standards). IEEE Std C57.12.90™-2010 standard – Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers and IEEE Guide for Short-Circuit Testing of Distribution and Power Transformers. IEEE Std C57.12.91™-2011 standard – Guide for Loading Mineral-Oil-Immersed Transformers. NEMA TR 1-1993 (R2000) – Transformers, Regulators and Reactors, Table 0-2 Audible Sound Levels for Liquid-Immersed Power Transformers. NEMA 260-1996 (2004) – Safety Labels for Pad-Mounted Switchgear and Transformers Sited in Public Areas. 10 CFR Part 431 – Department of Energy – Energy Conservation Program: Energy Conservation Standards for Distribution Transformers; Final Rule.
| |
Ratings | |
|
Rated Frequency 60Hz Rated Voltage 2.5kV – 5.0kV – 8.7kV – 15.0kV – 25kV – 34.5kV Rated Basic Impulse level 30kV – 45kV – 60kV – 75kV- 95kV – 110kV – 150kV – 200kV Rated KVA 45kVA – 75kVA – 112.5kVA – 150kVA – 225kVA – 300kVA – 500kVA – 750kVA – 1000kVA – 1500kVA – 2000kVA – 2500kVA – 3000kVA –3750kVA –5000kVA –7500kVA –10000kVA (range may also be specified) | |
