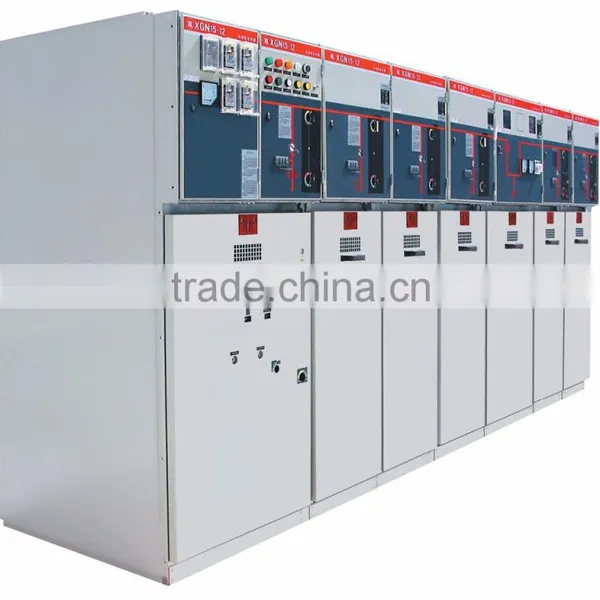

Help CenterSF6 Ring Main Unit/ SF6 RMU
Related Products
-
SF6-insulated Ring Main Unit/SF6-insulated Compact SwitchgearUS$ 5,000 - 60,000MOQ: 1 Set -
SF6-insulated Compact Switchgear/ Ring Main UnitUS$ 5,000 - 60,000MOQ: 1 Set
-
SF6-insulated Ring Main Unit /SF6-insulated Compact Switchgear/11kv Ring Main UnitUS$ 5,000 - 60,000MOQ: 1 Set
-
Gas Insulated Compact Switchgear/ Gas Insulated Ring Main UnitUS$ 5,000 - 60,000MOQ: 1 Set
-
SF6 Ring Main Unit/SF RMUUS$ 5,000 - 60,000MOQ: 1 Set
Service condition | |
|
Normal Condition
Ambient temperature Indoor -5°C to +40°C Outdoor -10°C to +40°C Humidity 90% Altitude ≤1000m Pollution Level I-Light Level II-Medium Earthquake UBC Zone 3
|
Special Condition
Ambient temperature Indoor -15°C to +40°C, -25°C to +40°C Outdoor -10°C to +50°C, -25°C to +40°C -40°C to +40°C Humidity 95%, 98% Altitude ≤2000m, ≤3000m, ≤4000m Pollution Level III-Heavy Level IV-Very Heavy Earthquake UBC Zone 4
K-factor 3, 5, 7, 9, 11, 13, 15, 17
|
|
Standard code IEC 60694 Common specifications for high-voltage switchgear and controlgear standards IEC 62271-200 High-voltage switchgear and controlgear-Part 100: AC metal-enclosed switchgear and controlgear for rated voltage above 1 kV and up to and including 52kV IEC 62271-202 High-voltage switchgear and controlgear-Part 202: High voltage/low voltage prefabricated substation IEC 62271-105 High-voltage switchgear and controlgear-Part 105: Alternating current switch-fuse combinations IEC 62271-102 High-voltage switchgear and controlgear-Part 102: High-voltage alternating current disconnectors and earthing switches
IEC standards
| |
