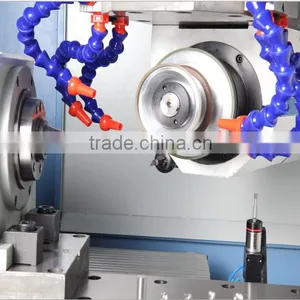

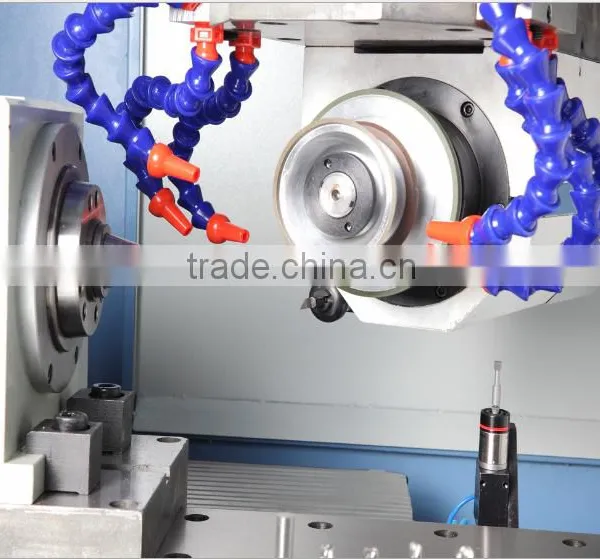

5- axis cnc tool and cutter grinder VIK-5C universal grinding machine and machine tools
specifications
|
items |
unit |
|
stroke |
X axis |
mm |
320 |
Y axis |
mm |
260 |
|
Z axis |
mm |
220 |
|
A axis |
|
360° |
|
C axis |
|
230° |
|
A axis |
Gripping range |
mm |
Φ0.3~Φ20 |
Swing diameter |
mm |
Φ320 |
|
Minimum indexing unit |
|
0.00001° |
|
Maximum speed |
rpm |
30 |
|
spindle |
taper |
|
31.75/20 |
Spindle speed |
rpm |
7000 |
|
Power transmission mode |
|
Electric spindle |
|
move |
Three axis rapid movement |
m/min |
15/15/15 |
Minimum input unit |
mm |
0.001 |
|
Electric machinery |
Spindle power |
KW |
7.5/12.5 |
Spindle drive system |
|
Frequency conversion electric spindle |
|
Feed drive system |
|
AC servo |
|
|
Lubrication system |
L |
2 |
Air pressure demand |
MPA |
0.6 |
|
other |
Power supply capacity |
KVA |
25 |
Host weight |
Kg |
5500 |
|
Area covered |
M |
2.2X1.4X2.4 |
|
Total weight of equipment |
Kg |
6000 |
|
|
|
If you are interested in 5- axis cnc tool and cutter grinder VIK-5C universal grinding machine and machine tools , welcome to leave a message or send the inquiry to understand the details of machine.
