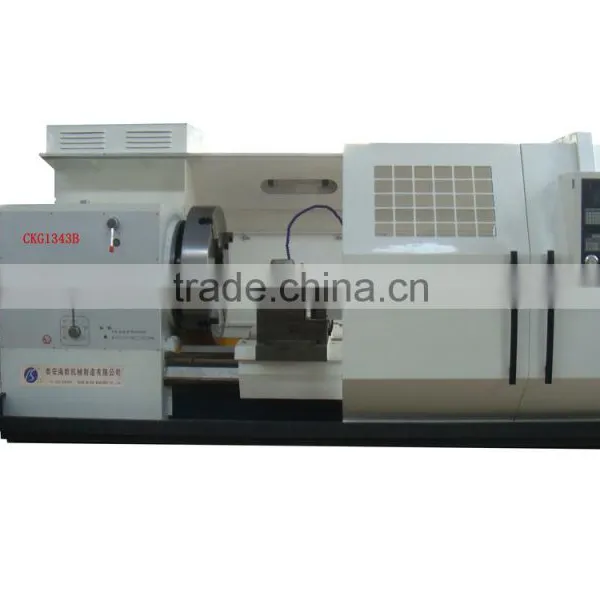

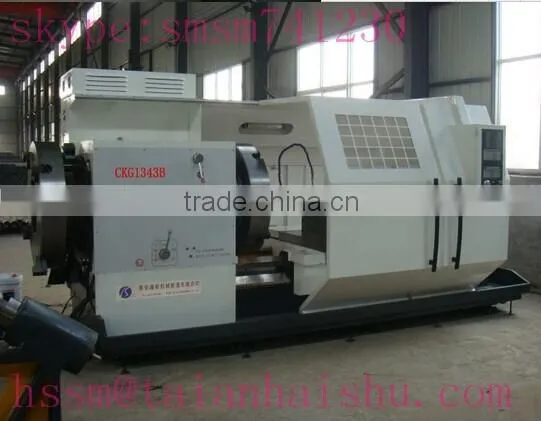

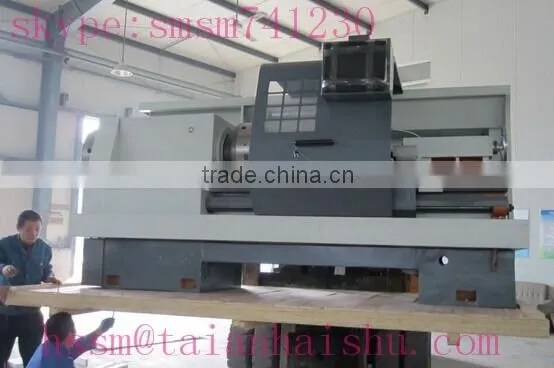

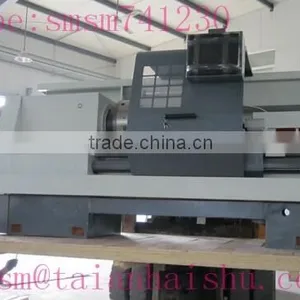

cnc turret lathe CKG1343/1350B tube threading lathe
Technical parameters
Item |
Unit |
Specification |
|
CKG1343B |
CKG1350B |
||
Processing pipe thread diameter range |
mm |
φ270-435 |
φ270-500 |
Maximum workpiece swing diameter over bed |
mm |
1000 |
|
Maximum workpiece swing diameter skateboard |
mm |
610 |
|
Maximum distance between centers |
mm |
1500 |
|
Bed rail width |
mm |
755 |
|
Maximum distance across the dual chuck |
mm |
1940 |
|
Spindle bore diameter |
mm |
φ445 |
φ510 |
Spindle speed mode |
mm |
Tow steps,Frequency stepless |
|
Spindle speed range |
rpm |
Low-grade: 23-1 High-grade: 65-340 |
|
Main motor power |
KW |
22 |
|
Clamping motor power |
KW |
3 |
|
X/Z axis rapid traverse rate |
m/min |
4/6 |
|
X/Z axis servo motor torque |
Nm |
15/22 |
|
X/Z axis repeat positioning accuracy |
mm |
0.012/0.016 |
|
X-axis maximum stroke |
mm |
450 |
|
Tailstock quill diameter |
mm |
φ140 |
|
Tailstock sleeve taper |
|
MT6 |
|
Tailstock sleeve maximum stroke |
mm |
300 |
|
Cooling pump power |
KW |
0.125 |
|
Automatic lubrication interval time |
min |
12 |
|
Dimensions (L × W × H) |
mm |
5000×2100×1650 |
|
machine weight |
kg |
13000 |
|
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine e.
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in cnc turret lathe CKG1343/1350B tube threading lathe, welcome to leave a message or send the inquiry to understand the details of machine.
